MODELS
GB122
GB131
GB140
Performance characteristics
Batch size lbs {g}
2.2 {1000}
2.2 {1000}
2.2 {1000}
Maximum throughput lbs/hr {kg/hr}*
200 {90}
280 {128}
450 {204}
Bin capacity - main ingredient ft
3
{liter}
1.0 {28.32}
1.0 {28.32}
1.0 {28.32}
Bin capacity - minor ingredient ft
3
{liter}
0.5 {14.16}
0.5 {14.16}
0.5 {14.16}
Maximum number of materials
4
4
4
Number of discharge valves
2
3
4
Number of micro pulsing valves
2
1
0
Control software (# of components)
4 or 12
4 or 12
4 or 12
Dimensions inches {mm}
A - Height above mounting plate†
38.9 {989.6}
38.9 {989.6}
38.9 {989.6}
B - Width
33.2 {843.3}
33.2 {843.3}
33.2 {843.3}
C - Depth
31.4 {797.6}
31.4 {797.6}
31.4 {797.6}
D - Controller height
11.25 {285.75}
11.25 {285.75}
11.25 {285.75}
E - Controller width
12.25 {311.15}
12.25 {311.15}
12.25 {311.15}
F - Controller depth
8.19 {208.03}
8.19 {208.03}
8.19 {208.03}
Weight lbs {kg}
Installed
200 {90.7}
200 {90.7}
200 {90.7}
Shipping
300 {136.1}
300 {136.1}
300 {136.1}
Voltage Total amps
120V/1 phase/50-60 hz
2.0
2.0
2.0
240V/1 phase/50-60 hz
1.0
1.0
1.0
Compressed air requirements
Discharge valves
80 psi @ 0.2 ft
3
/min {5.5 bars @ 0.09 liters/sec}; 1/4 in. NPT fitting
Micro pulsing valves
40 psi @ 0.2 ft
3
/min {2.8 bars @ 0.09 liters/sec}; 1/4 in. NPT fitting
GRAVIMETRIC BATCH BLENDERS
AutoWeigh GB100 Series Models
MOUNTING INTERFACE
SPECIFICATION NOTES:
Each stationary bin compart-
ment can support a 12-inch
loader or vacuum receiver.
Removable bins can support a
maximum of an 8-inch loader.
* Throughput rates are based on
bins with each micro-pulsing
valve dispensing no more than
1% colorant and/or additive
material and using a material
with a bulk density of 35 lb/ft
3
.
† The optional flow control valve
adds 6.5 in. {165 mm} to total
height.
SPECIFICATIONS
TPBS010/1199
CONTROL

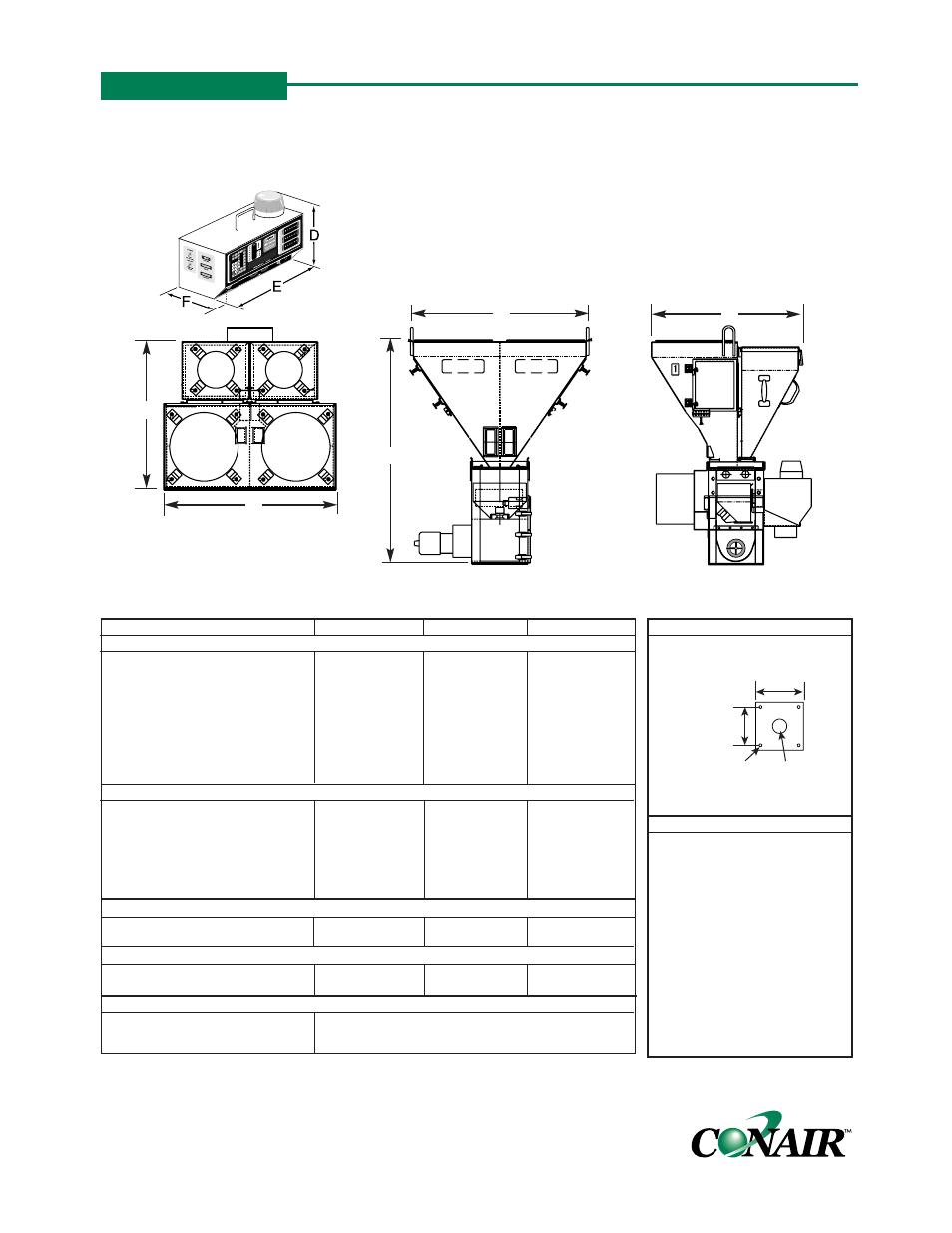

FRONT VIEW
SIDE VIEW
TOP VIEW
C
B
B
A
C
(4) 9/16 in.
{14.3 mm}
diameter
bolt holes
3 in. {76.2 mm}
diameter
through hole
8 in. {203.2 mm}
square
bolt pattern
10 in.
{254 mm}
square
IB04
APPENDIX B
