MODELS
WSBM22
WSBM131
WSBM140
Performance characteristics
Batch size lbs {g}
0.882 {400}
0.882 {400}
0.882 {400}
Maximum throughput lbs/hr
{kg/hr}*
97 {44}
111 {50}
132 {60}
Bin capacity - standard bins
ft
3
{liter}
0.4 {5.7}
0.4 {5.7}
0.4 {5.7}
Maximum number of materials
4
4
4
Number of standard dispensing valves
2
3
4
Number of micro dispensing valves
2
1
0
Control software (# of components)
4 or 12
4 or 12
4 or 12
Dimensions inches {mm}
A - Height above mounting plate
27.25 {693}
27.25 {693}
27.25 {693}
B - Width
21.75 {552.4}
21.75 {552.4}
21.75 {552.4}
C - Depth
21.75 {552.4}
21.75 {552.4}
21.75 {552.4}
D - Controller height
11.25 {285.75}
11.25 {285.75}
11.25 {285.75}
E - Controller width
12.25 {311.15}
12.25 {311.15}
12.25 {311.15}
F - Controller depth
8.19 {208.03}
8.19 {208.03}
8.19 {208.03}
Weight lbs {kg}
Installed
60 {27}
60 {27}
60 {27}
Shipping
80 {36.3}
80 {36.3}
80 {36.3}
Voltage Running load amps
120V/1 phase 50/60 hz
1.0
1.0
1.0
220V/1 phase 50/60 hz
0.5
0.5
0.5
Compressed air requirements
40
psi @ 1 ft
3
/min { bars @ 0.47 liters/sec}
1/4 in. NPT fitting
Material filling options
Self-contained vacuum loader
ML8
Central vacuum receiver
DL8
Hand-fill
flat lid

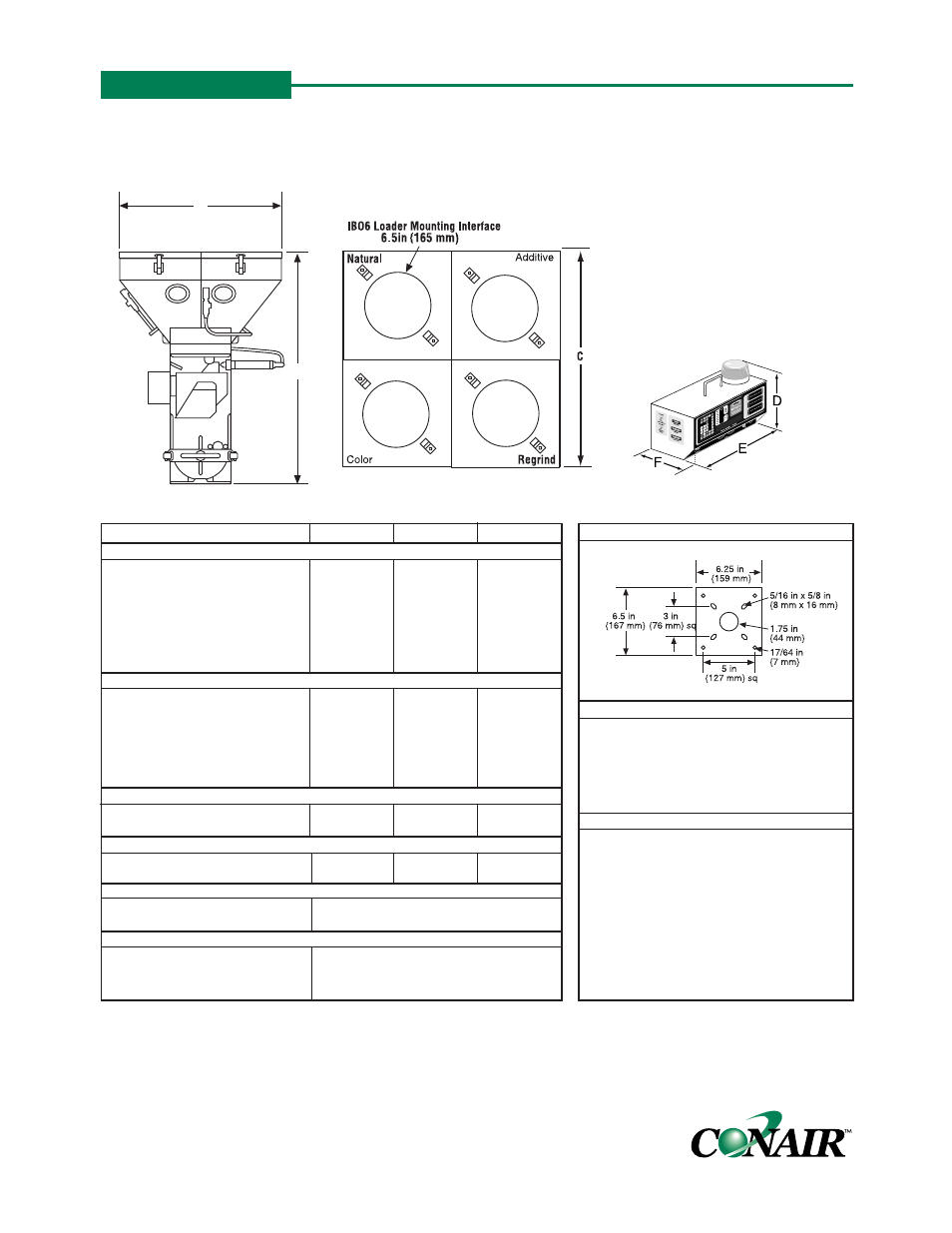

GRAVIMETRIC BATCH BLENDERS
WSBM Series models
MOUNTING INTERFACE
SPECIFICATION NOTES:
* Maximum throughput rates are based on
using all dispense valves dispensing no more
than 1.0% colorant or additive per each
micropulsing valve. Refer to the selection
guide for more specific throughput informa-
tion.
APPLICATION NOTE:
Handfill unless otherwise specified.
If you will be using this blender for central
blending applications, it will be necessary to
use a flow control valve with an air solenoid.
SPECIFICATIONS
TPBS016/0700
CONTROL (REMOTE MOUNTED)
B
A
APPENDIX B
