Rear Panel Connections
Caution: Never make or remove any connections to the Citation 5.0 with the Master Power
button 1 in the “ON” position. It is also good practice to make certain that any power ampli-
fiers connected to the 5.0 are also turned off when making or removing any connections. This
eliminates the risk of possible damage to your speakers or other system components.
When making connections to the Citation 5.0 make certain that the input plug is firmly seated in
the input jack. This prevents intermittent connections which may interfere with performance.
SIDE BACK REC A CENTER FRONT
STEREO
SUB
DIGITAL AUDIO INPUTS
ANALOG AUDIO INPUTS
1
L
R
2 3 4
7 8 9 10 12 11
5 6
L
R
REMOTE
ZONE
TRIGGERS
TRIG 1 TRIG 2 IR IN
IN 3 IN 2 IN 1
IN 4 IN 5 IN 6 IN 2
IN 1
CITATION BUS
115V ~ 60Hz
75 WATTS AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR
C A U T I O N C A U T I O N
RISK OF ELECTRIC SHOCK DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE. DO NOT
REMOVE COVER. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
SERIAL NUMBER
COMPOSITE VIDEO S – VIDEO
MONO SUB
AUDIO OUTPUTS
Manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby", "AC-3",
"Pro Logic" and the Double-D symbol are trademarks of Dolby Laboratories Licensing
Corporation. Copyright 1992 Dolby Laboratories, Inc. All rights reserved.
Additionally licensed under U.S. patent numbers 5,172,415; 5,263,087; 5,307,415; 5,280,528;
5,339,363; 5,295,189; 4,932,059; 5,428,687: 5,504,819 and patents pending.
5.0 AV Controller
Manufactured in the USA
REC A RMT ZONE
AUX MAIN
OUT
+ VDC
1 2 3
GND
4
REC A RMT ZONE
AUX MAIN
OUT
®
NRTL / C
LR110480
CSA E65
›
¡
™
£
¢
∞
§
¶
•
ª
‚
⁄ ‹
fi
fl
‡
a
b
c
·
°
d f
e g
15

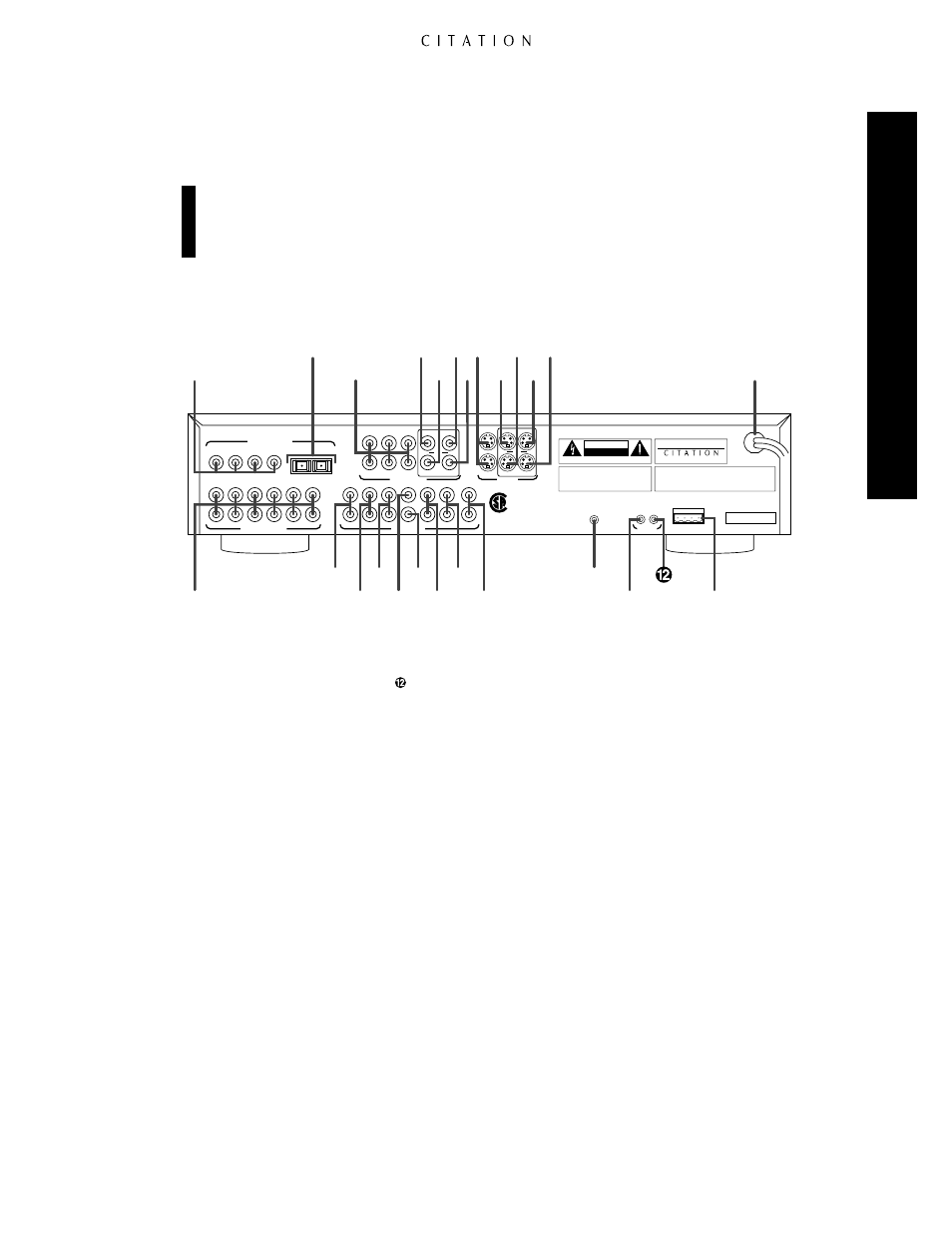

Rear Panel Connections
¡ Analog Audio Inputs
™ Remote Zone Outputs
£ Record Outputs
¢ Front Channel Audio Outputs
∞ Center Channel Audio Output
§ Mono Subwoofer Output
¶ Side Channel Outputs
• Back Channel Outputs
ª Stereo Subwoofer Outputs
‚ IR In
⁄ Trigger 1 Output
Trigger 2 Output
‹ Citation Bus Control Port
› Power Cord
fi S-Video Record Output
fl S-Video Auxiliary Output
‡ S-Video Remote Zone Output
° S-Video Main Output
· S-Video Inputs
a Record A Composite Video Output
b Auxiliary Composite Video Output
c Composite Video Remote Zone Output
d Main Composite Video Output
e Composite Video Inputs
f Optical Digital Audio Inputs
g Coax Digital Audio Inputs
¡ Analog Audio Inputs: Connect the output of analog audio devices to these inputs. Note that the
left channel input is on top, and the right channel input is on the bottom. Once a source has been
connected, it may be assigned to any of the twelve Program Settings using the
Program Menu (see
page 37). In this menu the various parameters of the input may be established, including a source
name and other system options.
™ Remote Zone Outputs: These outputs are used to feed an optional, external power amplifier
for feeds to a remote zone location. The assignment of specific sources to an individual Remote
Zone input number is done through the
Remote Zone Menu (see page 58). The actual selection
of the Remote Zone input is made by pressing the Remote Zone Indicator buttons R on the
remote control.
£ Record Outputs: These jacks provide an output for connections to the “REC IN” jacks of a
recording device such as a VCR, cassette recorder, DAT, MiniDisc, or reel-to-reel recorder. The
signal output through these jacks is always identical to the source program selected for the main
input to the 5.0.
