want to connect is invisible.
Network Name (SSID): The name that is broadcast from each access point.
Network ID (BSSID): The numeric ID of the network. This parameter is required when trying to connect to a hidden
network using WiFi as WAN. It is optional when connecting to a visible network.
Auth Mode: The type of encryption that is used by the network.
None
WEP Auto
WEP Open
WEP Shared
WPA1 Personal
WPA2 Personal
WPA1 & WPA2 Personal
Channel: The channel the network is using.
7.4.2

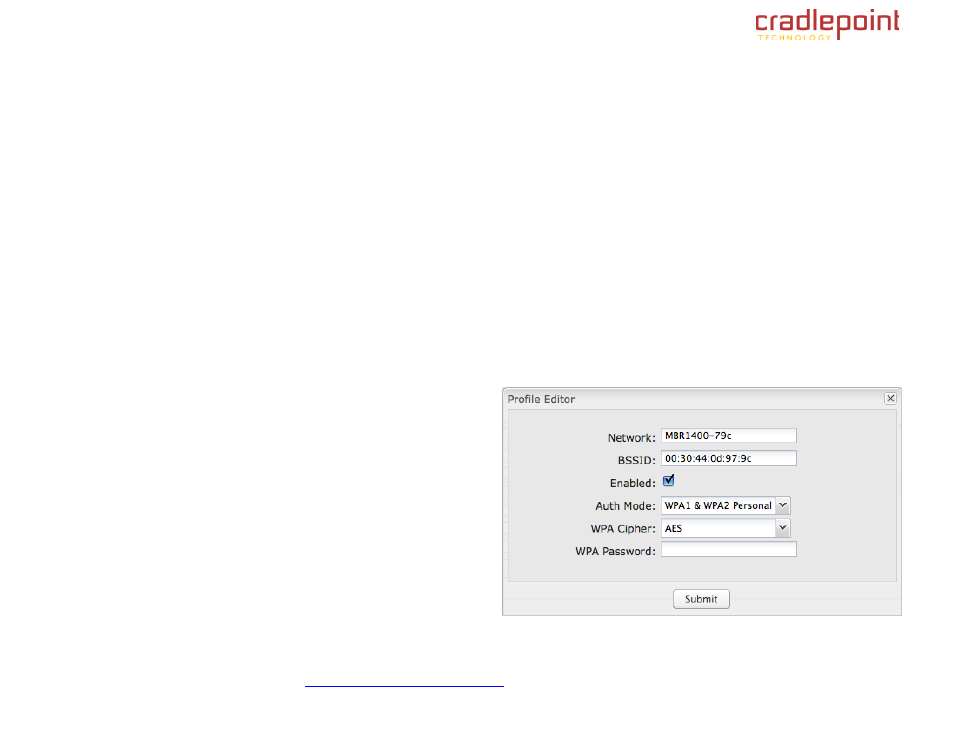

Profile Editor
You have the option to manually add network profiles, but it is
usually much easier to import them from
Site Survey. Either
click on
Add under ―Saved Profiles‖ or select a WiFi network
in ―
Site Survey‖ and click Import.
If you import a network from
Site Survey, most of the
information about the network will already be completed. You
need to input the password (if there is one) and then click
submit to save the WiFi as WAN profile.
