Cradlepoint MBR1000 - Manual

WINDOWS 7
1) Click START
2) Click CONTROL PANEL
3) Click CONNECT TO A NETWORK
4) Click NETWORK AND SHARING CENTER
5) Click CONNECT TO A NETWORK
You’ll see a list of available wireless
networks
6) Click MBR-xxx
7) Click CONNECT
NOTE: If you are asked for an “8-digit PIN”, click
CANCEL and retry the above steps. If prompted
to set up your network, click CONNECT TO THE
NETWORK WITHOUT SETTING IT UP.
MBR1000
3G/4G Mobile Broadband Router

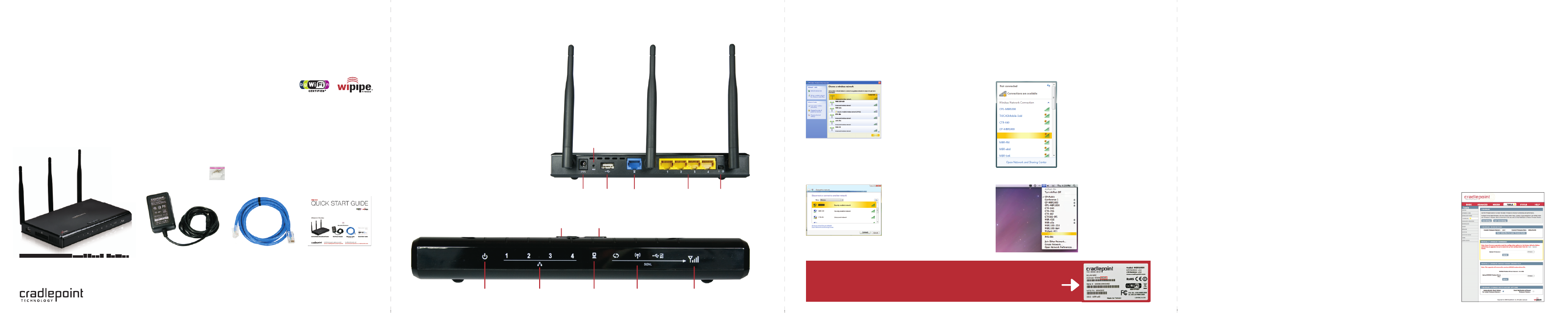

QUICK START GUIDE
1 )
What’s In The Box
Follow the directions for your Operating System below.
SETTING UP THE ROUTER CONNECTING YOUR COMPUTER
WINDOWS XP
WINDOWS VISTA MAC OSX
1) Click START
2) Hover over CONNECT TO
3) Click WIRELESS NETWORK CONNECTION
You’ll see a list of available wireless networks
4) Click MBR-xxx
5) Click CONNECT
MBR-xxx
MBR-xxx
1) Click START
2) Hover over CONNECT TO
3) Click WIRELESS NETWORK CONNECTION
You’ll see a list of available wireless networks
4) Click MBR-xxx
5) Click CONNECT
NOTE: If you are asked for an “8-digit PIN”,
see directions under Windows 7.
1) Open your wireless connection list
by clicking the AIRPORT wireless
icon on your menu bar
2) Click on the MBR-xxx
knowledgebase.cradlepoint.com
for additional information, visit:
12v Power Supply Ethernet Cable
( Color May Vary )
Quick Start Guide
Plug the power supply into
an electrical outlet.
Connect the power supply
to the MBR1000.
Connect a USB or
ExpressCard modem.
Ensure the WiFi switch is on “ | ”
POWER USB
MODEM
CABLE/DSL
MODEM
( WAN )
CONNECT
COMPUTERS
or PRINTERS
( LAN )
WiFi
ON/OFF
RESET
Using Cable or DSL?
Connect the provided Ethernet
cable from your Cable or DSL
Modem into the blue WAN port.
2 )
3 )
4 )
knowledgebase.cradlepoint.com
For additional information, visit:
Go to: http://www.cradlepoint.com/support
( If your computer does not have another source for internet, connect your Modem/Aircard to your computer.)
Download the most recent firmware file. Save it to your desktop.
( NOTE: If you are using a 4G modem, you must download and install both the firmware and modem file.)
Connect your computer to the MBR1000 with its WiFi network connection or an ethernet cable. (see page 3)
Open a browser window and type http://192.168.0.1 in the address bar. Press enter/return.
When prompted for your password, type the last six characters of your MAC address.
Select TOOLS on the top navigation bar, then FIRMWARE in the left menu.
Find MANUALLY UPGRADE FIRMWARE and click the BROWSE button.
Select the firmware file you saved to your desktop and click OPEN.
Click the UPLOAD button. Wait a moment while your firmware is updated.
FINDING YOUR PASSWORD
Your default password is the last six characters of your MAC Address.
This is shown on the label on the back of your product.
LAN STATUS
( PORT 1-4 )
WAN STATUS WiFi STATUS 3G/4G MODEM STATUS
3G/4G MODEM SIGNAL STRENGTH
POWER STATUS
WiFi PROTECTED SETUP STATUS
2 3 4
Mounting Hardware
1)
2)
3)
4)
5)
6)
7)
8)
9)
www.cradlepoint.com/register
for full technical support, register your product:
PN: 184343-403
MBR-xxx
MBR-xxx
© 2010 CradlePoint, Inc. All rights reserved. CradlePoint is not responsible for omissions or errors in typography or photography.
CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks
are property of their respective owners.
TROUBLE CONNECTING TO THE INTERNET?
We update product firmware often to ensure compatibility with the latest modems.
Your router may not connect correctly if the firmware needs to be updated.
How To Update Firmware
