APPENDIX C
MOTORMASTER SENSOR LOCATIONS

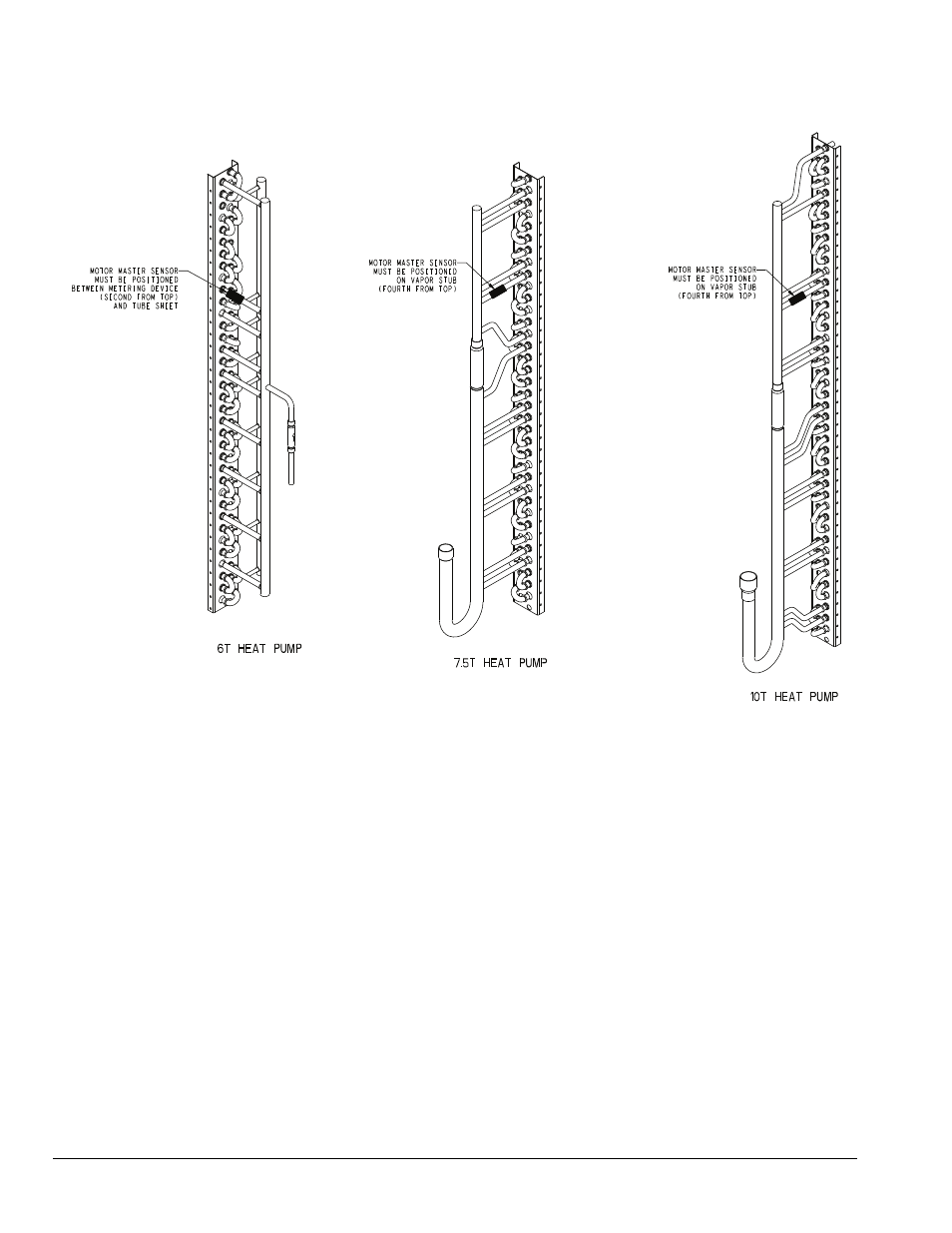

Fig. 31 Motormaster Sensor Locations per Unit Size
MOTOR MASTER SENSOR
MUST BE POSITIONED
ON VAPOR STUB
(FOURTH FROM TOP)
6T HEAT PUMP
MOTOR MASTER SENSOR
MUST BE POSITIONED
BETWEEN METERING DEVICE
(SECOND FROM TOP)
AND TUBE SHEET
7.5T HEAT PUMP
MOTOR MASTER SENSOR
MUST BE POSITIONED
ON VAPOR STUB
(FOURTH FROM TOP)
10T HEAT PUMP
