Peripheral Equipment Connections

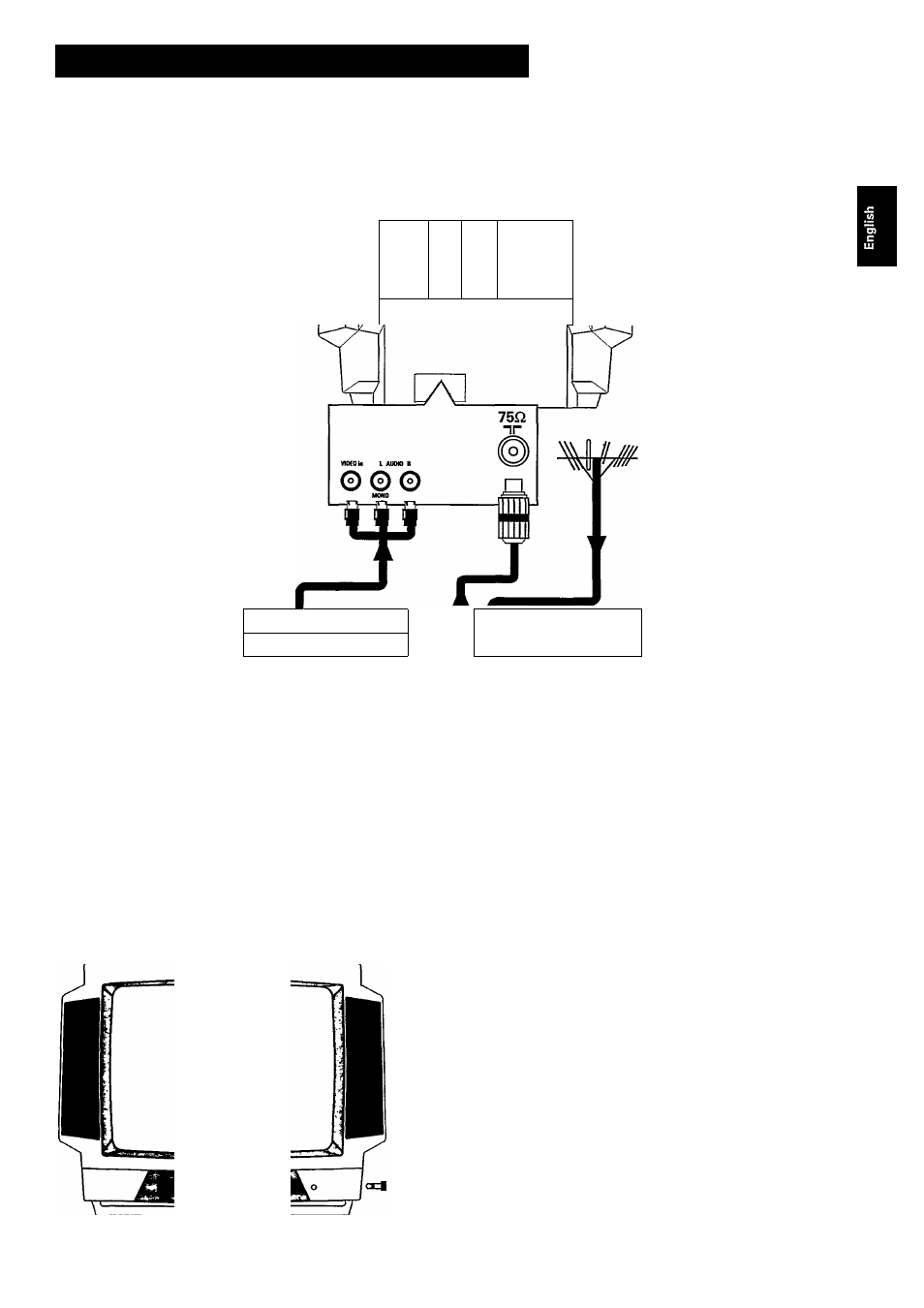

Connections are located at the back panel of the TV set. Drawings below are graphical representation of the
connection options of the TV set.
U]
ru
]1[
a
^ AHTENNAtM>UT VCR
LASER DISC PLAYER D
RFOUT
(Back View Of VCR)
AV Sockets
Most of the mono equipment can be used to
playback via this connections. Model
20GX1550 are mono set. Connect the Video
and the Audio L sockets to playback in the
AV channel.
For model 20GX1850 which is equipped with
a stereo playback decoder, then you are able
to listen to stereo sound. Connect the Video,
Audio Left and Right sockets from the
equipment to the TV set respectively.
Antenna RF input
You can connect the antenna either through
the VCR or directly to the TV. Connect the
antenna to the RF input of the VCR and from
the VCR RF output, connect to the antenna
input ( nr ) of your TV.
Headphone
(Only available in 20GX1850 model)
The headphone socket is of the 3.5 mm jack
type and the headphone used should be
between 32 and 4000 ohms.
\
