Preparations

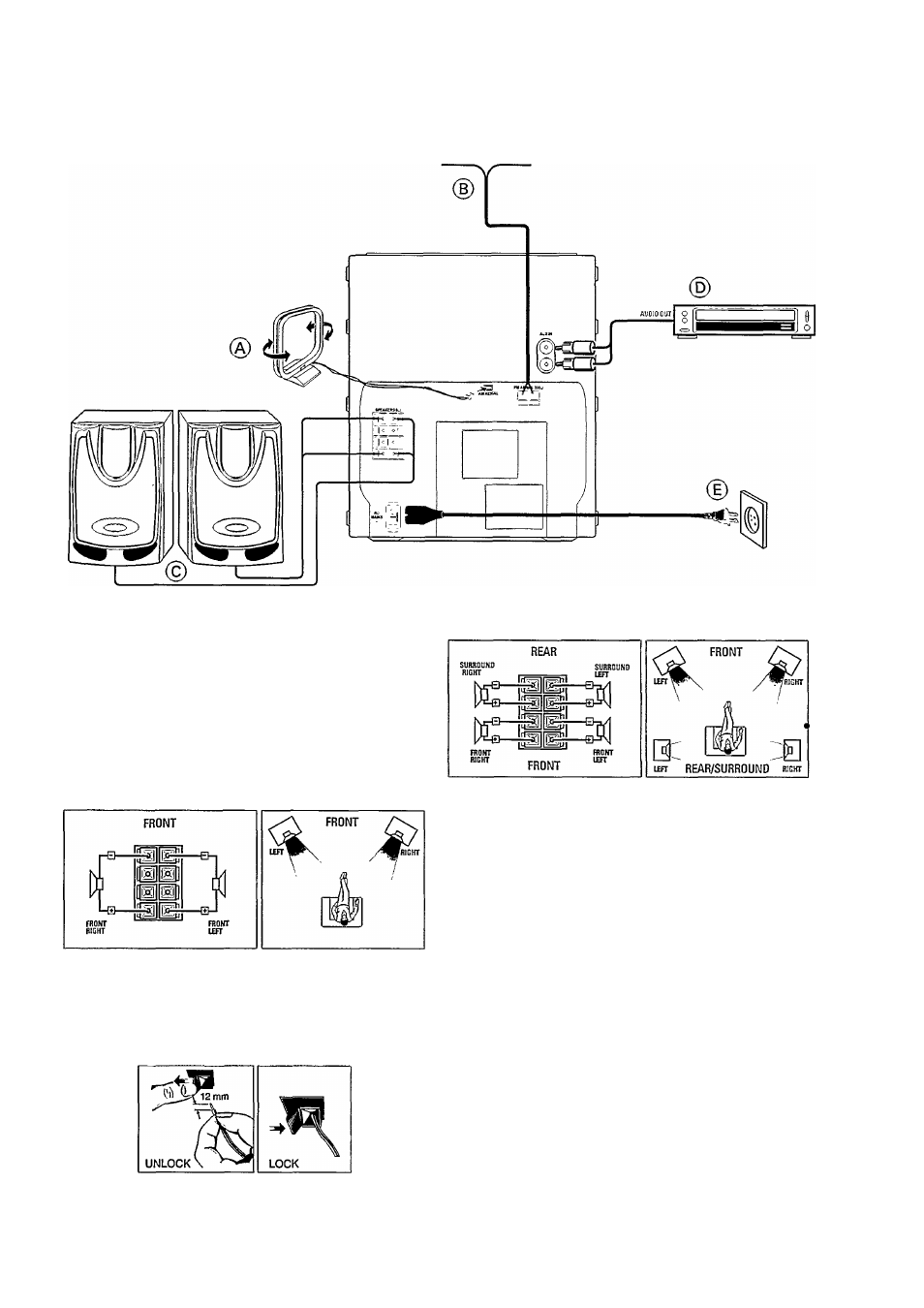

Rear Connection
Outdoor Antenna
For better FM stereo reception connect an outdoor FM antenna
to the FM ANTENNA 300
D.
terminal using a 300 Q dipole wire.
© Speaker Connections
You can connect the 2 supplied speakers or you can create a 4-
speaker system for surround sound using two extra speakers
having an impedance of at least 6 ohms.
2-speaker system (without surround connection)
Connect the right speaker to terminal R, with the red wire to
+ and the black wire to —.
Connect the left speaker to terminal
L,
with the red wire to
+ and the black wire to —.
Clip the stripped portion of the speaker wire as shown.
4-speaker system (with surround connection)
Connect the right speaker to terminal
R,
with the red wire to
+
and the black wire to —.
•
Connect the left speaker to terminal
L,
with the red wire to
-)- and the black wire to —.
•
Clip the stripped portion of the speaker wire.
® Connecting other equipment to your system
You can connect the TV, Laser Disc or VCR audio left and right
output terminals to the AUX terminal at the rear of the system.
(D AC Power Supply
After all other connections have been made, connect the AC
power cord to the set and the AC power plug to the wall outlet.
