Connecting an S-Video Device
1
2
3
4
5

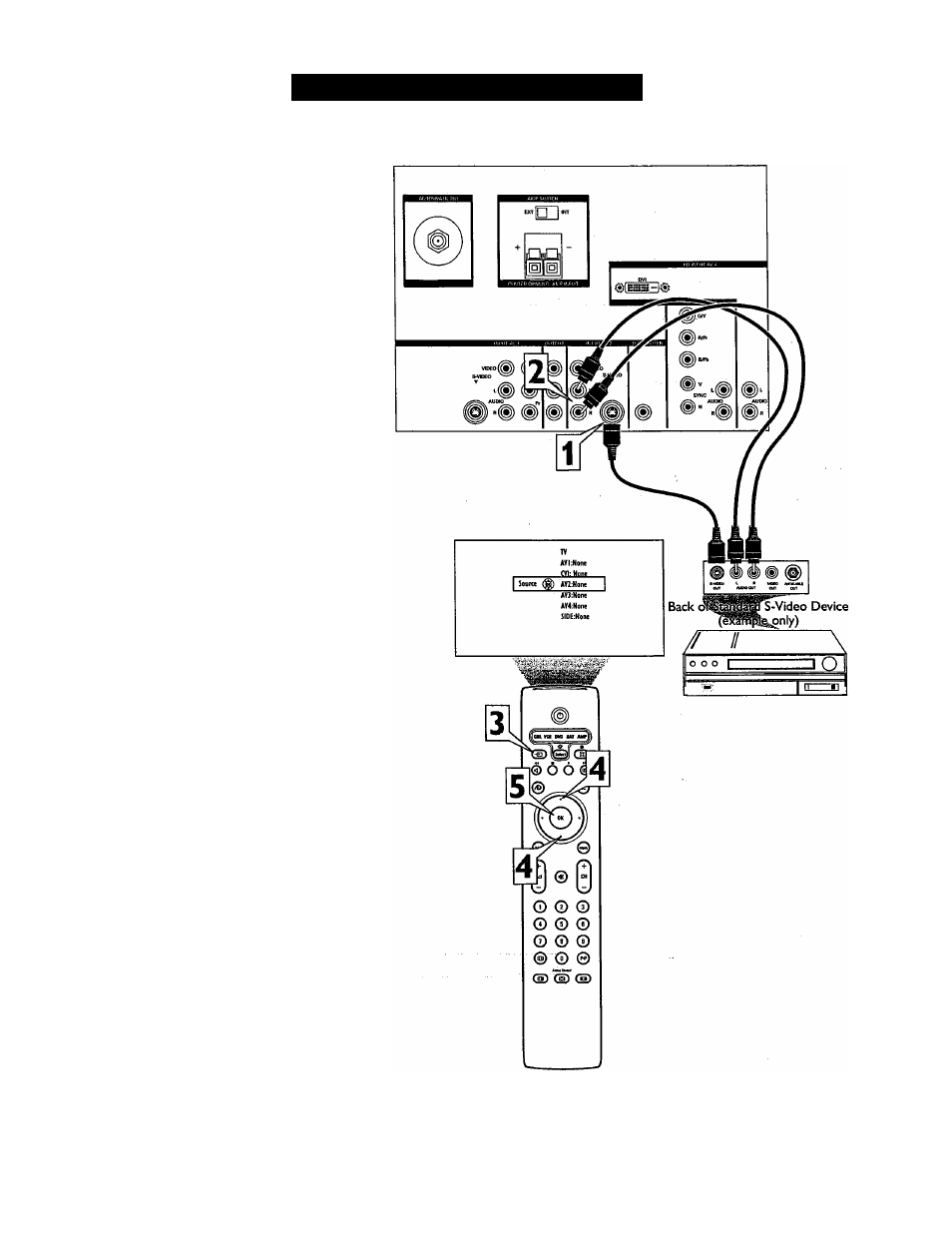

Using an S-Video cable, connect the
S-Video output on the back of the
S-Video device to the INPUT-
AV 2 S-VIDEO input.
Using Stereo Audio cables, connect the
AUDIO OUT jacks on the back of the
S-Video device to the corresponding
INPUT-AV 2 audio inputs
(L and R).
Press the Source button on the remote
control to access the Source list.
Press the Cursor Up or Down button to
select the AV2 input source.
Press the OK button to confirm your
choice. The set is now switched to the
AV2 input source for the viewing of
programs from the S-Video device.
Back ofTV
Color Coding Used on Jacks and Plugs to
simplify connections:
Red: Right AUDIO
White: Left AUDIO.
An S-Video cable must be used to make the
S-Video connection.
