1BChapter 2: Installation
12 TruVision Outdoor IP Camera User Manual

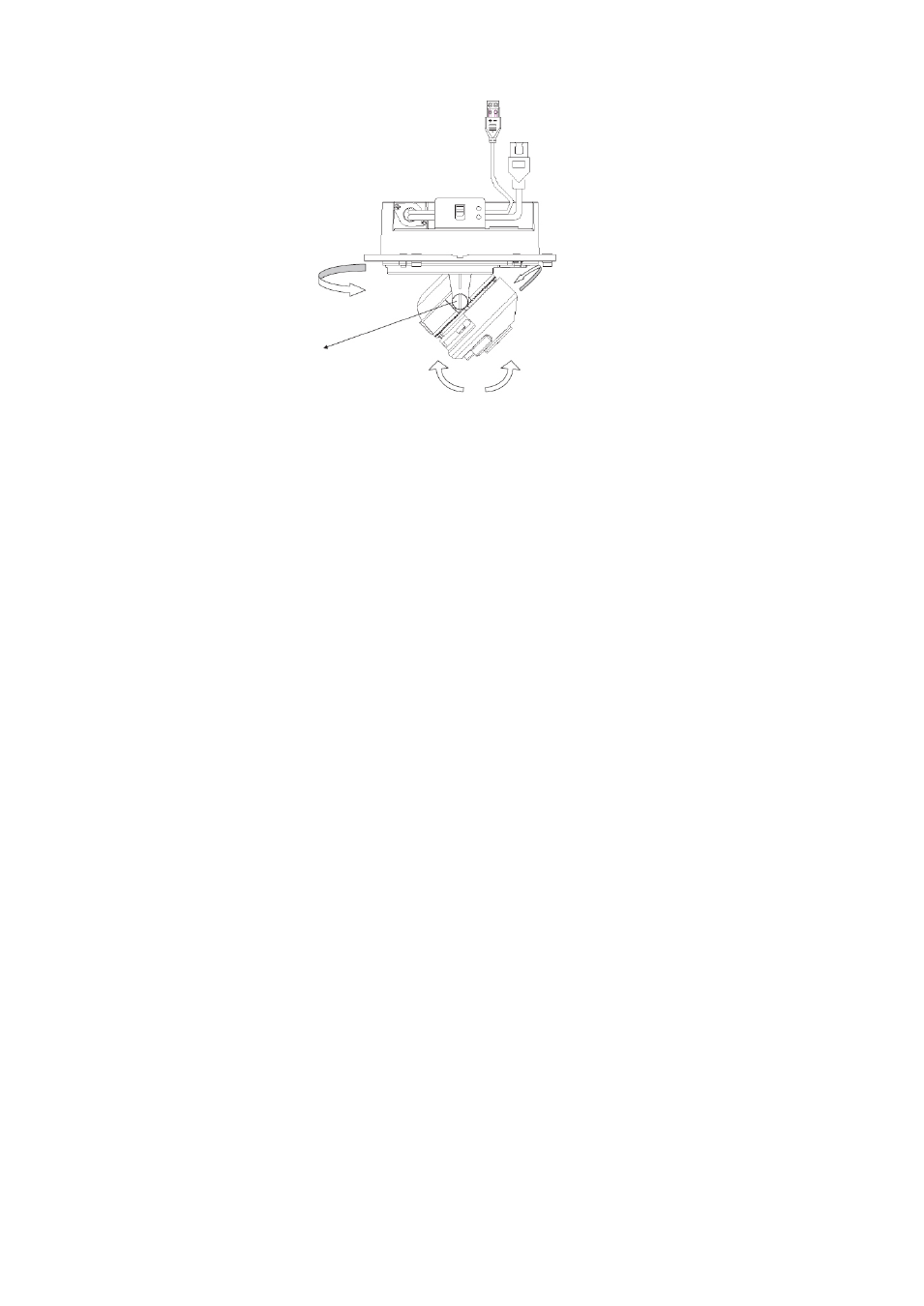

Pan
Lock screw
Rotate
Tilt
6. Reattach the dome liner and enclosure.
Mounting the bullet camera
Mount the bullet camera on a ceiling or wall.
To mount the camera on a ceiling:
1. Using the mounting bracket as a template, place it level against the mounting
surface and mark the position of the mounting holes.
2. Following all local codes, drill and prepare the mounting holes.
3. Securely fasten the mount to the mounting surface with the appropriate
fasteners. Clip the camera’s safety cable to the building’s superstructure for
security.
4. If needed, seal all mounting holes so that no moisture can leak into the
mounting surface.
5. Connect a Cat5e cable to the network cable, and connect a 12 VDC power
supply to the power cable.
6. Adjust the camera position and angle as required.
Using the camera with TVR 60/ TVN 20/
TVN 40/ LNVR and other systems
Please refer to the head-end user manuals for instructions on connecting and
operating the camera with these systems.
