1BChapter 2: Installation
TruVision Outdoor IP Camera User Manual 7
Note: Do not attempt to extend the power/data cable connection using RJ45
couplers and Cat5 cable. Only use the data cable connection provided.
Note: Use 24 VAC or PoE/PoE+. The built-in heater requires the camera to be
powered by 24 VAC or PoE+ in order to operate. When powered by standard
PoE, the heater is disabled but the camera still functions normally.

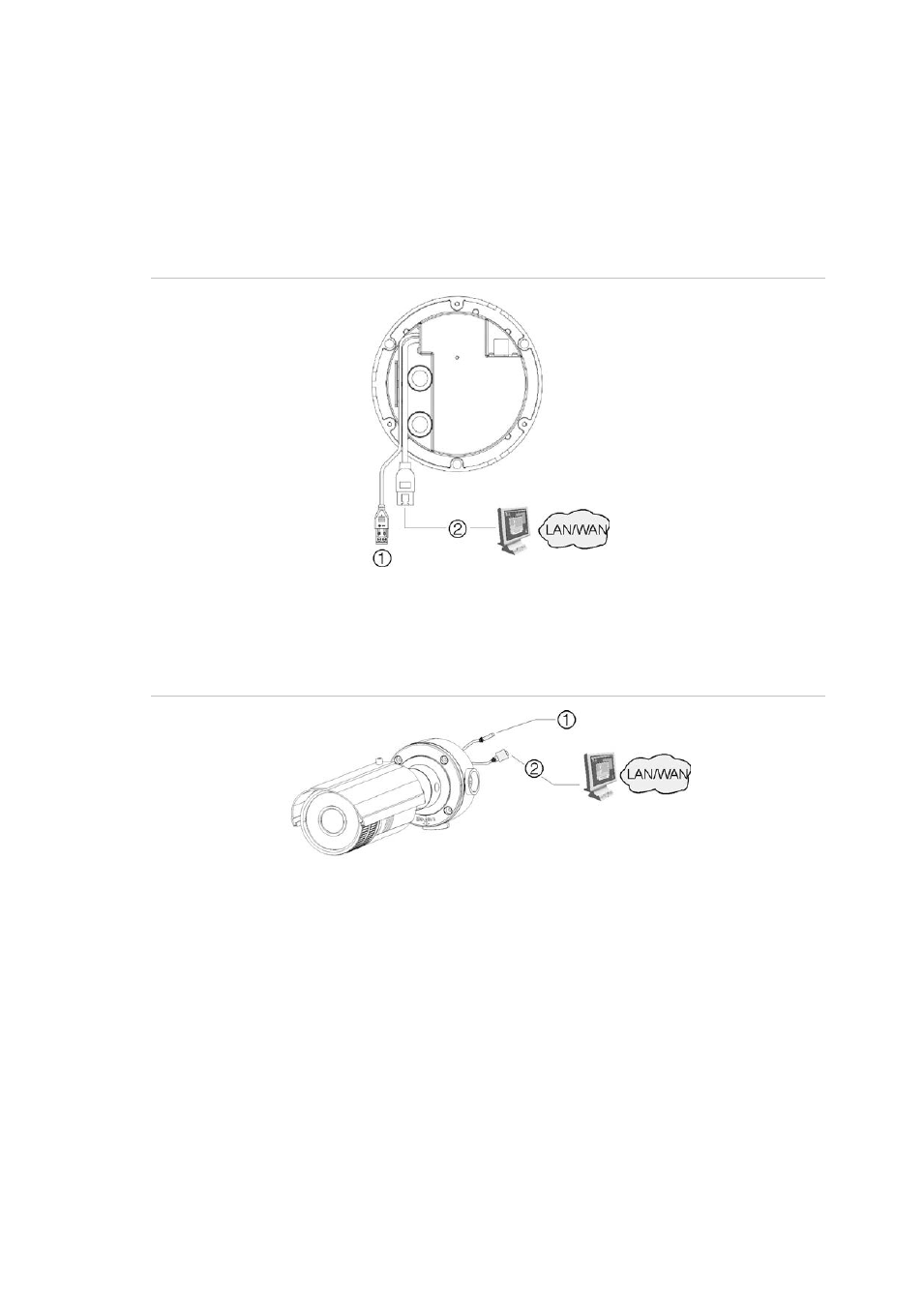

Figure 3: Connections on the base of the dome cameras
1. Power supply
Connect +24 VAC power supply.
2. Ethernet RJ45 PoE port
Connect to network devices.
Figure 4: Connections of the bullet cameras
1. Power supply
Connect +12 VDC power supply.
2. Ethernet RJ45 PoE port
Connect to network devices.
Accessing the SDHC card
Insert an SDHC card up to 32GB for local storage as a backup in case the
network fails, for example (see Figure 1 on page 5). The card is not supplied with
the camera.
Video and log files stored on the SDHC card can only be accessed via the Web
browser. You cannot access the card using TruVision Navigator or a recording
device.
