4 Wireless ShatterPro Acoustic Sensor Installation Instructions

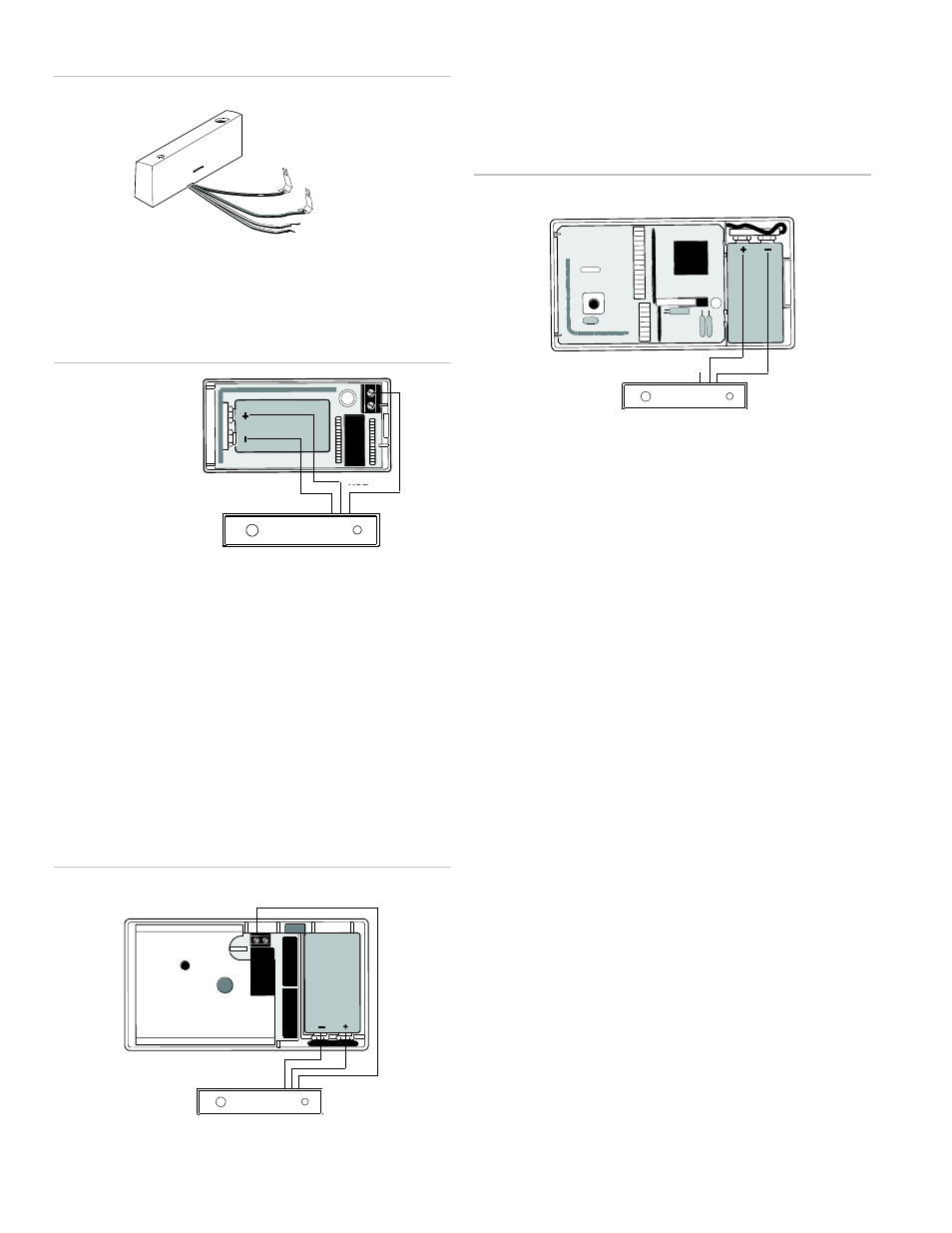

Figure 9: 584509-W w iring
Figure 10 below shows the 584509-W connections to the
Ademco 5716 transmitter.
Figure 10: 584509-W connections to the Ademco 5716
To connect the 584509-W to the Ademco 5716 transmitter, do
the following:
1. Remove the battery.
2. On SW3, set switch 6 to Off (down). On SW4, set switch 1
to ON (up). Do not use a magnet.
3. Connect loop wires (green).
4. Connect 9-V battery terminals and install the battery
observing polarity.
Figure 11 below shows the 584509-W connections to the
Honeywell 10-6506 (T-8803) transmitter.
Figure 11: 584509-W connections to the 10-6506 transmitter
Figure 12 below shows the 584509-W connections to the
AT&T transmitter.
Figure 12: 584509-W connections to the AT&T transmitter
To connect the 584509-W to the AT&T transmitter, do the
following:
1. Splice the white wire from the sensor to the green wire
from the transmitter.
2. Connect the black wire from the sensor to the battery -.
3. Connect the red wire from the sensor to the battery +.
4. On the 12-position DIP switch, set switch 6 to OFF for CL.
Set switch 7 to ON for PIR or glassbreak.
If you use this transmitter inside the back box, the circuit board
must be removed from the housing. You can secure it with the
double-stick tape provided. For the most secure connections, it
is better to solder the battery connector terminals instead of
using the buddy-up clips.
Testing
The sensor is designed to detect the breaking of framed glass
mounted in an outside wall. Testing the sensor with unframed
lass, broken bottles, etc., may not trip the sensor. The sensor
typically does not trip to glass breaking in the middle of the
room.
The Pattern Recognition Technology of the sensor ignores
most false alarm sounds, including glassbreak testers. To test
the sensor, use test mode. Test mode disables glassbreak
pattern processing in upper and lower frequencies. The sensor
is then listening only for the mid-range frequencies that the
UTC Fire & Security 5709C hand- held tester reproduces. It’s
the mid-range frequencies that determines sensor range.
Black
Red
White
Adem co
5716
transmitter
Green
564509-W
Black
Red
Green
(NL)
584509-W
AT&T transmitter
Black
W hite
(NH)
Red
Honeywell 10-6506 (T-8803) transmitter
584509-W
Black
Green (NL)
GND
Red
