Wireless ShatterPro Acoustic Sensor Installation Instructions 3
584503-W Wiring

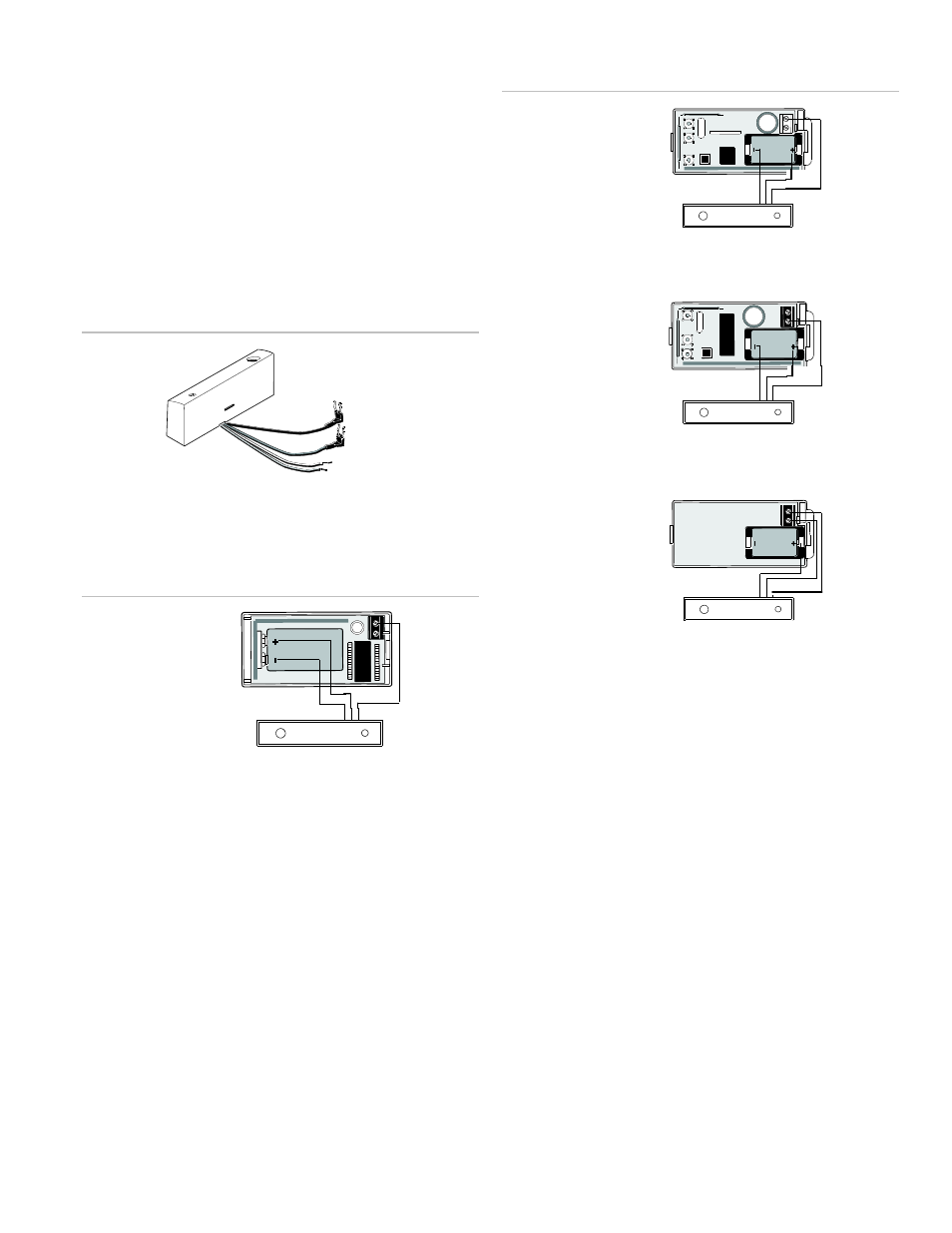

Figure 6 below shows the 584503-W wiring (shares transmitter
battery). The wires are:
Red - To battery +.
Black - To battery -.
White - Normally open (closes on alarm to battery - ).
Green - Normally closed (to battery - ).
Figure 6: 584503-W w iring
Figure 7 below shows the 584503-W connections to the
Ademco 5816 transmitter.
Figure 7: 584503-W connections to the Ademco 5816 transmitter
Figure 8 below shows the 584503-W connections to UTC Fire
& Security transmitters.
Figure 8: 584503-W connections to the UTC Fire & Security 5816
transmitter
To connect the 583403-W to the transmitter, do the following:
1. Program the learn mode transmitter into the MCA.
2. Connect the sensor to the transmitter as shown in Figure 8
above.
3. Solder the red lead to the positive battery terminal on the
underside of the circuit board.
4. Put the cover on the transmitter and put it back into the
base. Snap the sensor cover in place.
5. Test with the 5709C tester. (See “Testing” on page 4.)
584509-W Wiring
Figure 9 on page 4 shows the 584509-W wiring (shares
transmitter battery). The wires are:
Red - To battery +.
Black - To battery -.
White - Normally high.
Green - Normally low.
UTC Fire & Security
3.5 V programmable
Transmitter
584503-W
UTC Fire & Security
3.5 V learn mode
Transmitter
584503-W
UTC Fire & Security
3.5 V System VI
Transmitter
564503-W
Black
Black
Black
Red
Green
(NL)
Red
Green
(NL)
Red
Green
Black
564509-W
Ademco
5716
transmitter
Red
Green
(NL)
Black
Red
White
Green
