Cross-Zoning
Note
: Cross-Zoning is not recommended for exit/entry zones. Each zone has the
ability to individually protect the intended area. (e.g. motion detector patterns
overlap).
Cross-Zone (Alarm Verify) refers to two different Group 10-20 sensors that must
be tripped within four minutes of each other to report an alarm to the central
station. The diagram in Figure 23 below shows the path of a person walking from
the kitchen to the living room. When the person is detected walking through the
kitchen, the motion sensor in the kitchen is tripped, sounding a local alarm. If
motion is detected by the living room motion sensor within two minutes, an alarm
report will be sent to the central station.

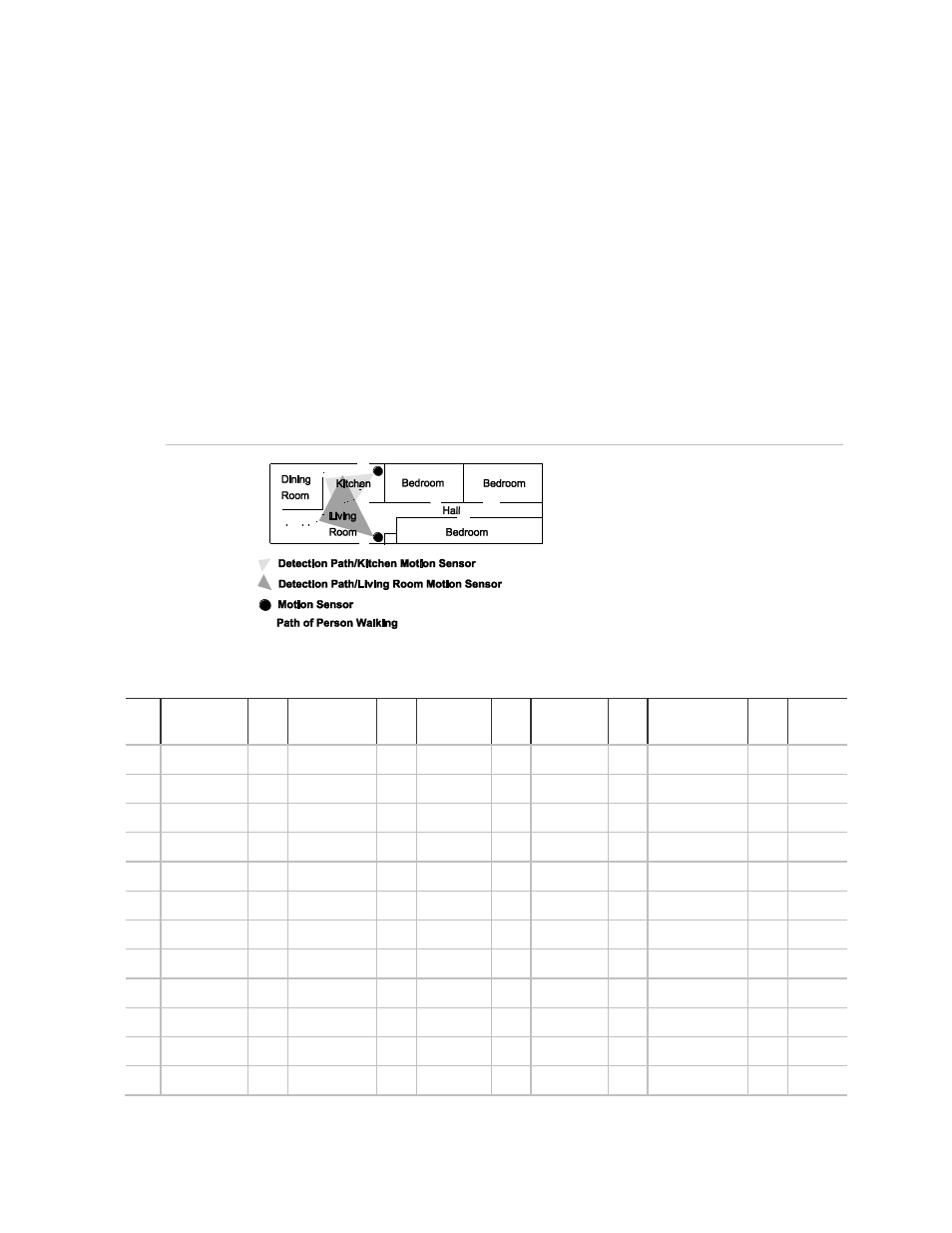

Figure 23: Cross-zone diagram
Table 11: Item numbers and sensor text
Item
#
Sensor text
Item
#
Sensor text
Item
#
Sensor
text
Item
#
Sensor
text
Item
#
Sensor text
Item
#
Sensor
text
001 Aborted
041 Date
081 Gas
121 North
161 Siren
201 G
002 AC
042 Daughter’s 082 Glass
122 Not
162 Sliding
202 H
003 Access
043 Degree
083 Goodbye 123 Now
163 Smoke
203 I
004 Active
044 Delay
084 Hallway
124 Number
164 Son’s
204 J
005 Activity
045 Den
085 Heat
125 Off
165 Sound
205 K
006 Alarm
046 Desk
086 Hello
126 Office
166 South
206 L
007 All
047 Detector
087 Help
127 OK
167 Special
207 M
008 AM
048 Dining
088 High
128 On
168 Stairs
208 N
009 Area
049 Disarmed
089 Home
129 Open
169 Stay
209 O
010 Arm
050 Door
090 House
130 Opening 170 Supervisory
210 P
011 Armed
051 Down
091 In
131 Panic
171 System
211 Q
012 Arming
052 Download
092 Install
132 Partition 172 Tamper
212 R
