Chapter 1
10 Concord Express Installation Instructions
Device Max. wire length to panel Wire type
SuperBus 2000 2x20
VFD Alphanumeric
Touchpad 22 AWG—250 ft.
18 AWG— 600 ft. Stranded
SuperBus 2000 Hardwire
Input Module 22 AWG—1,800 ft.
18 AWG— 4,500 ft. Stranded
Mounting the Panel
Use the following procedure to mount the panel to the wall or wall studs.
Caution:
Make sure you are free of static electricity whenever you work on the
panel with the cover open. To discharge any static, first touch the metal panel
chassis, then stay in contact with the chassis when touching the circuit board.
Using an approved grounding strap is recommended.
To mount the panel cabinet and circuit board:
1. Open the panel door and slide it up to remove it from the cabinet. Set the
door aside.
2. Remove the knockout to provide access for system wiring (see Figure 2
below).
3. Feed all device wires through the knockout and place the panel in position
against the wall.
4. Level the panel and mark the top and bottom mounting holes (see Figure 2
below).

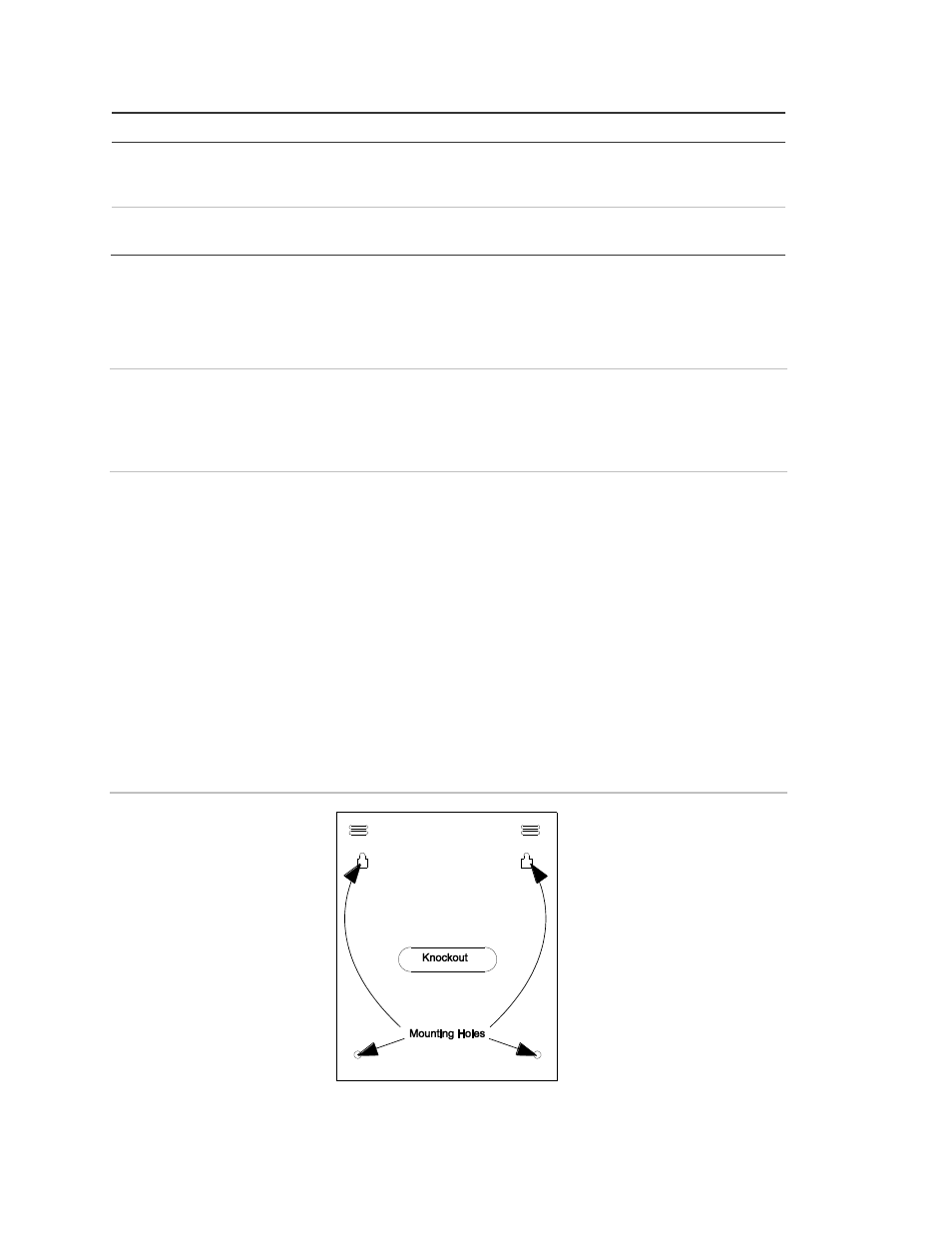

Figure 2: Mounting holes
