Vertical Communications TeleVantage 7.5 User Manual
Page 67
C
HAPTER
6. I
NSTALLING
I
NTEL
D
IALOGIC
B
OARDS
6-15
Important:
All of the DSIx boards installed in a single TeleVantage Server PC must be the same
model.
Q

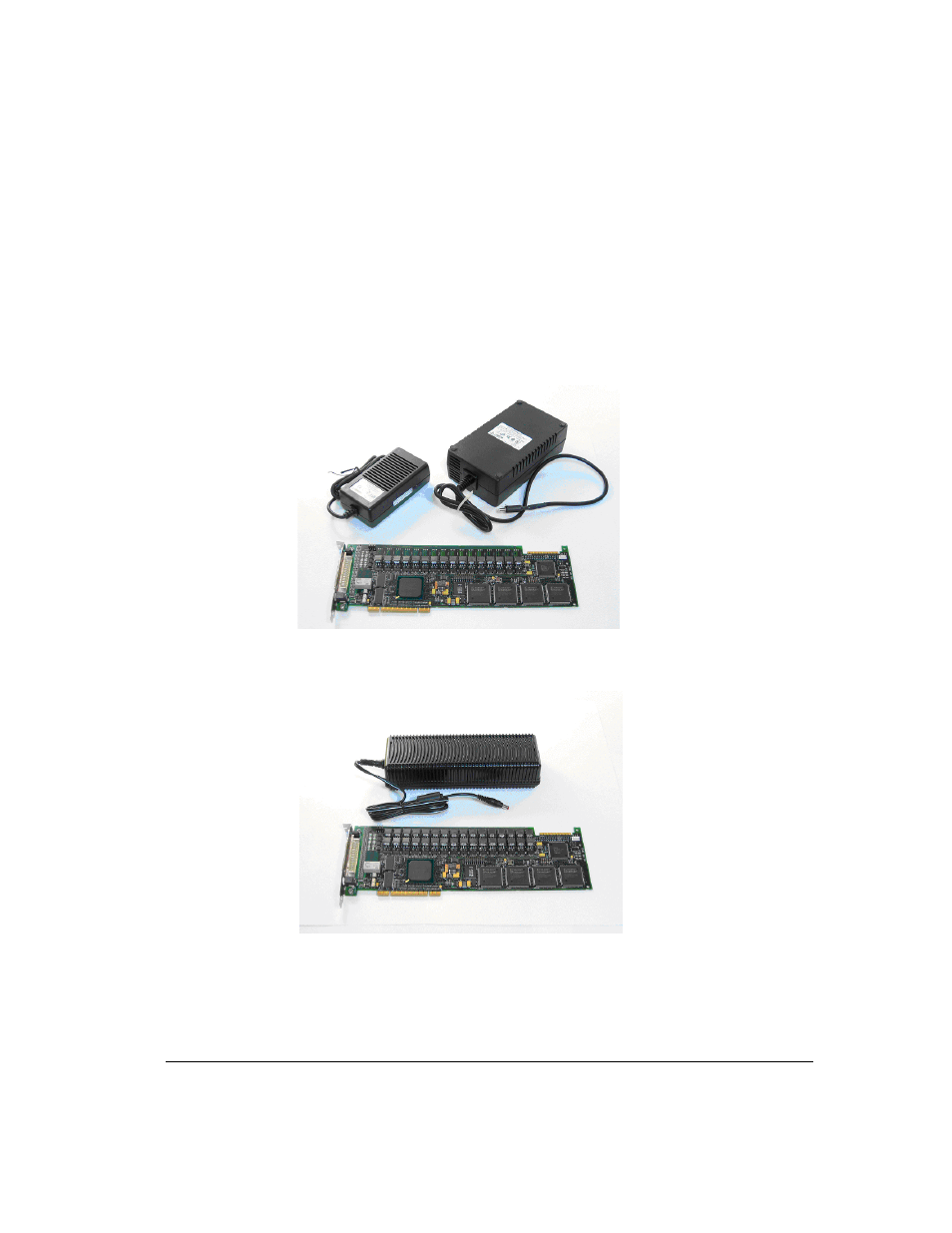

DSI162HMP (2-wire) board.
Supports all of the supported digital phones except for the
Avaya Legend MLX digital phones. The DSI162HMP board comes with either a 24v or
48v power supply.
Q
24v power supply (model number PSDSI6224V).
Used for the supported NEC,
Nortel Norstar, and Nortel Meridian digital phones.
Q
48v power supply (model number PSDSI6248V).
Used for all other supported
digital phones (including NEC phones.)
Q
DSI162LGNHMP (4-wire) board.
Supports the Avaya Legend MLX digital phones, and
comes with a 48v power supply.
Important:
Be sure to use the correct power supply for your phones. Using the wrong
power supply will cause the phones to not work properly, and may damage them.
