Appendix A: Network Connection

GE-DSG-8 DSGH-5 and 8 Ethernet Switch User Manual

21

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

SIDE 1

SIDE 2

SIDE 1

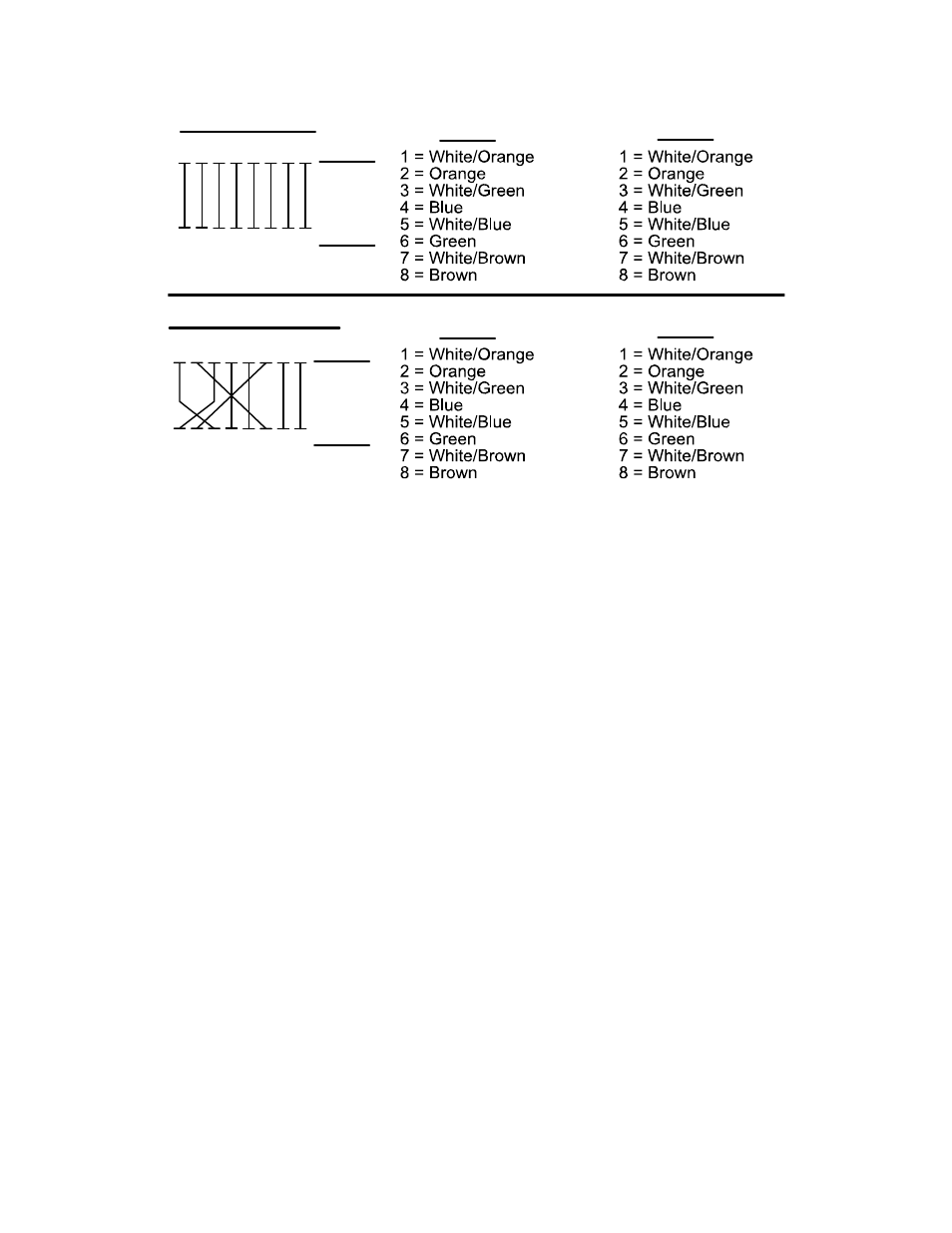

Straight Cable

SIDE 2

Cross Over Cable

SIDE 1

SIDE 2

SIDE 1

SIDE 2

Please make sure your connected cables are with same pin assignment and color as
above picture before deploying the cables into your network.
