Chapter 2: Installation

12

GE-DSG-8 DSGH-5 and 8 Ethernet Switch User Manual

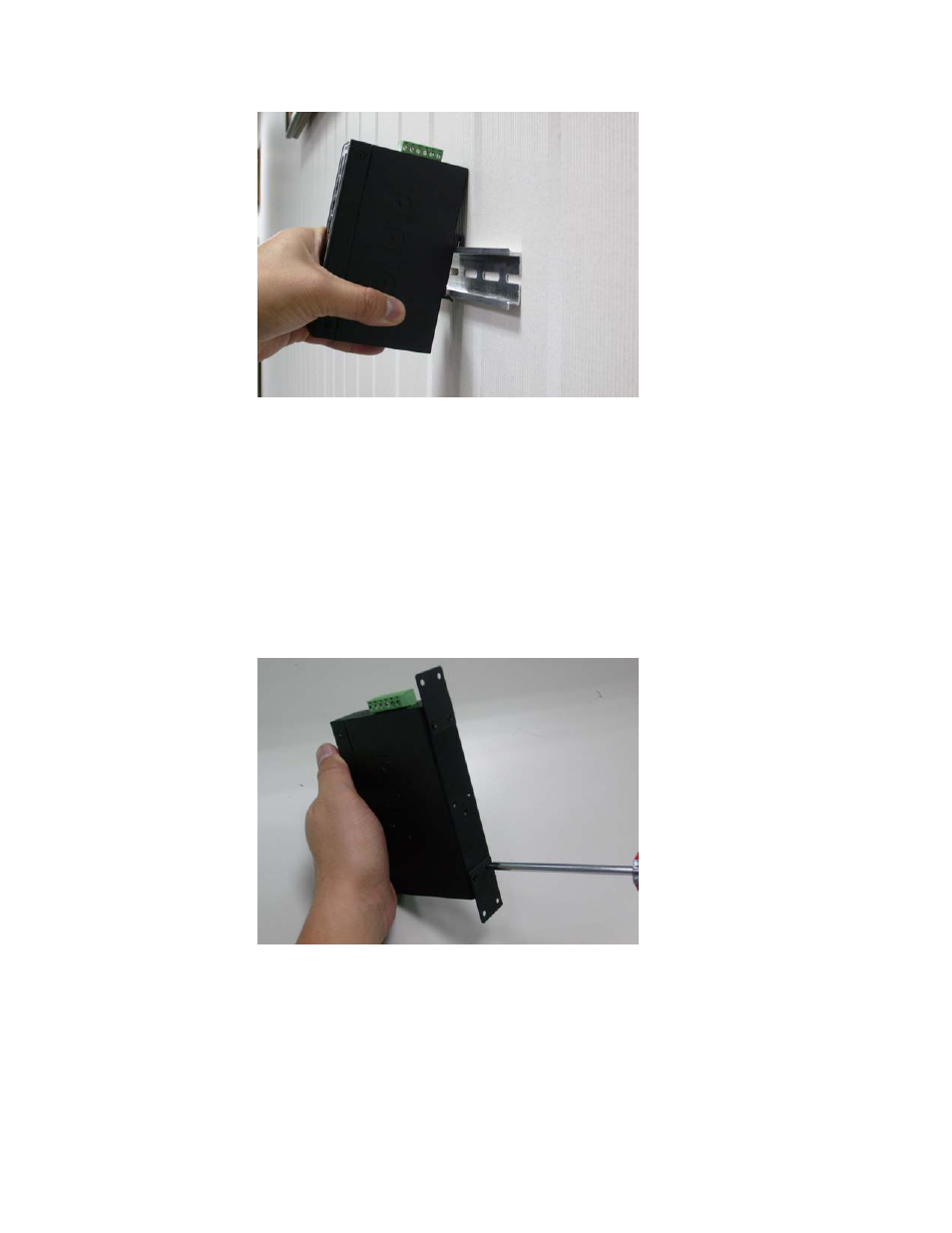

Wall Plate Mounting

To install the Industrial Gigabit Ethernet Switch on the wall, please follow the
instructions described below.
1. Remove the DIN-Rail from the Industrial Gigabit Ethernet Switch; loosen the

screws to remove the DIN-Rail.

2. Place the wall mount plate on the rear panel of the Industrial Gigabit Ethernet

Switch.

3. Use the screws to secure the wall mount plate on the Industrial Gigabit Ethernet

Switch.

4. Use the hook holes at the corners of the wall mount plate to hang the Industrial

Gigabit Ethernet Switch on the wall.

5. To remove the wall mount plate, reverse the steps above.
