Chapter 2: Installation

10

GE-DSG-8 DSGH-5 and 8 Ethernet Switch User Manual

Mounting Installation

This section describes how to install the Industrial Gigabit Ethernet Switch and make
connections to it. Please read the following topics and perform the procedures in the
order being presented.

Note:

In the installation steps below, this Manual use IGS-801 (GE Security 8 Port

Industrial Gigabit Switch) as an example. However, the steps for GE Security Industrial
Switch & Industrial Media Converter are similar.

Industrial DIN-Rail Mounting

The DIN-Rail is screwed on the Industrial Gigabit Ethernet Switch when in the factory.
If you need to replace the wall mount application with DIN-Rail application on
Industrial Gigabit Ethernet Switch, please refer to following figures to screw the DIN-
Rail on the Industrial Gigabit Ethernet Switch. To hang the Industrial Gigabit Ethernet
Switch, follow the below steps:

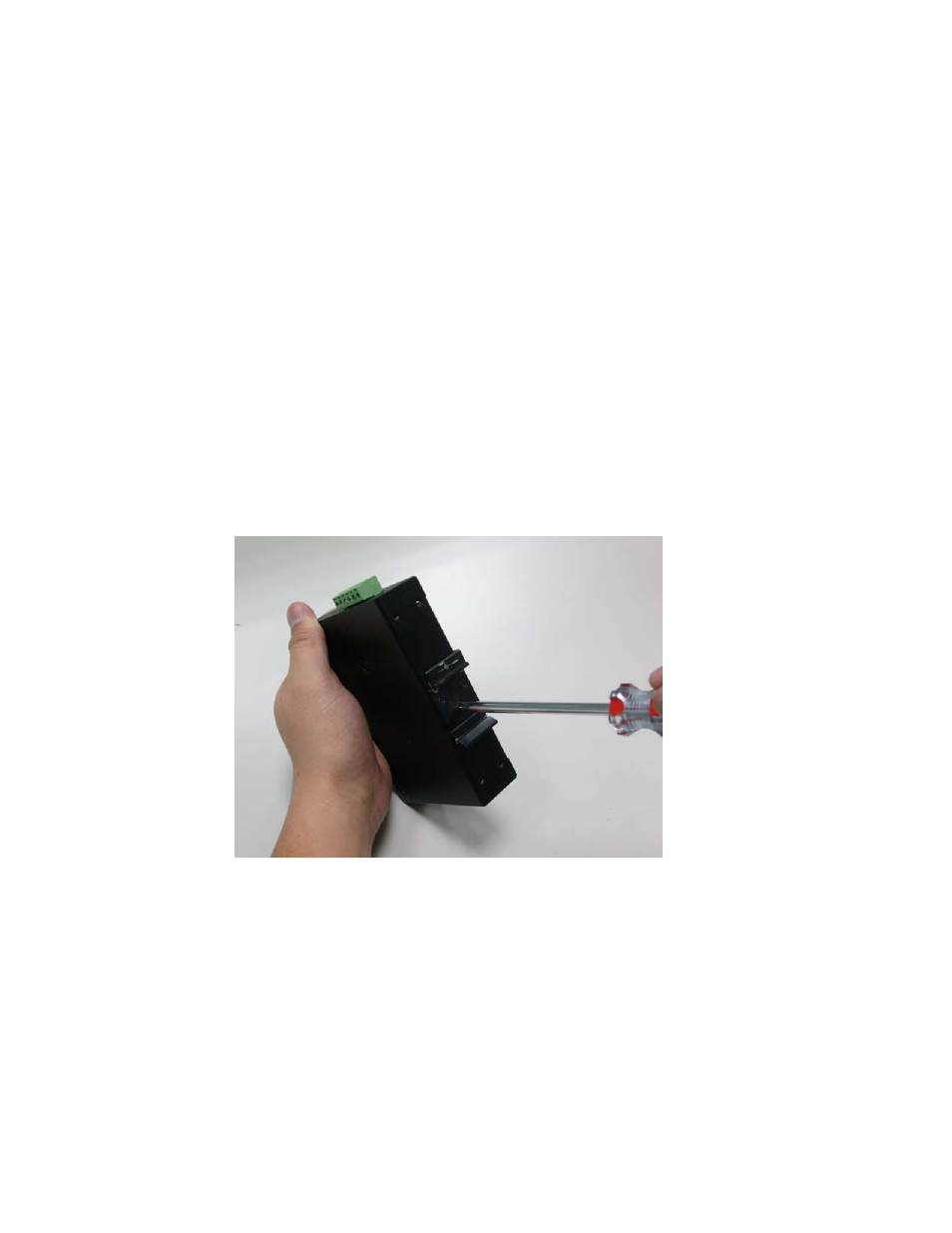

1. Screw the DIN-Rail on the Industrial Gigabit Ethernet Switch.

2. Lightly press the button of DIN-Rail into the track.
