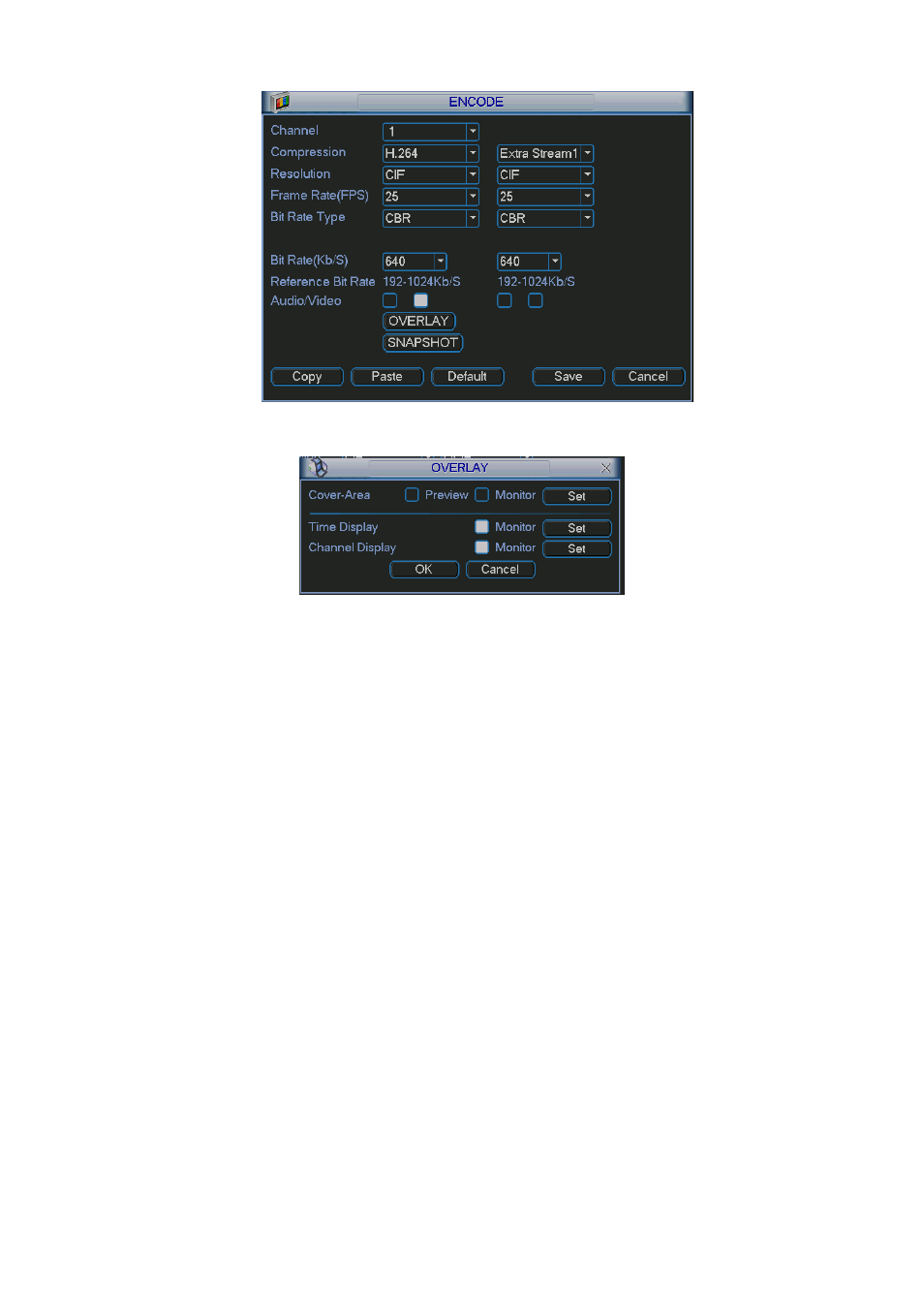

Figure 5-6
Figure 5-7
5.3.3 Schedule
Please refer to chapter 4.4 schedule.
5.3.4 RS232
RS232 interface is shown as below. There are five items. See
X363H363H363H
Figure 5-8
z
Function: There are various devices for you to select. Console is for serial port or min-end
platform to upgrade program. Keyboard is for you to use special keyboard to control current
device.
z
Baud rate: You can select proper baud rate.
z
Data bit: You can select proper data bit. The value ranges from 5 to 8.
z
Stop bit: There are two values: 1/2.
z
Parity: There are five choices: none/odd /even/mark/space.
System default setup is:
z
Function:
Console
z
Baud
rate:115200
z
Data
bit:8
z
Stop
bit:1
z
Parity:
None
After completing all the setups please click save button, system goes back to the previous menu.
