3.4 HDD Installation
This series combo DVR has only one SATA HDD. Please use HDD of 7200rpm or higher.
You can refer to the Appendix for recommended HDD brand. You can select the capacity as your
requirement.
Please follow the instructions below to install the HDD.

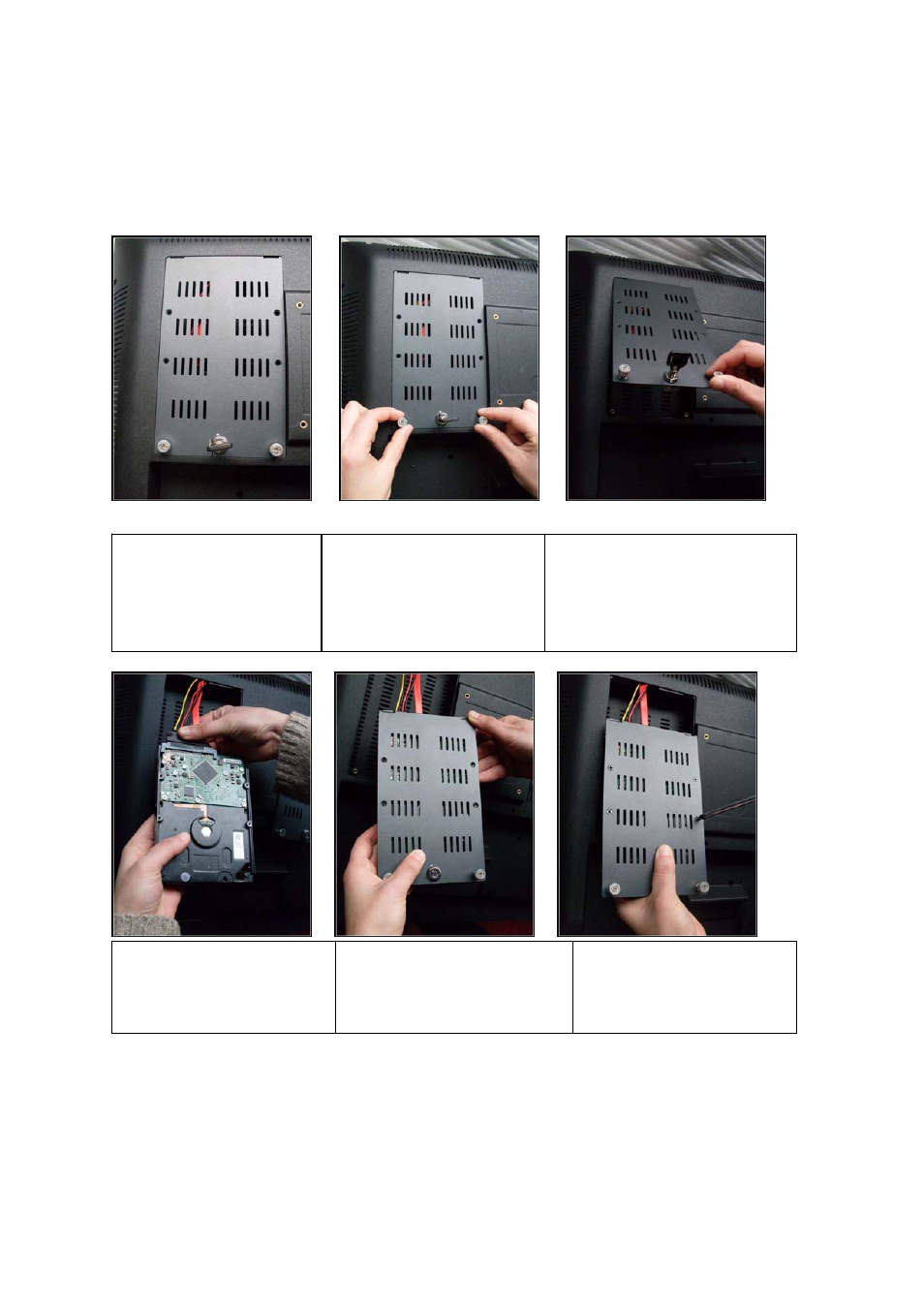

1. Insert the key to the hole
and then press. Turn the
clockwise 90 degrees to open
the lock.
2. Loose the two screws of the
HDD cover.
3. Remove the HDD cover from the
rear panel.
4. Connect the HDD cable and
power cable.
5.
Place the HDD cover to the
HDD in accordance with the four
holes.
6. Use the screws to fix the
HDD on the cover.
