IC Realtime Combo Series: 8 Channel DVR with built-in 19 LCD monitor User Manual
Page 32
23
Figure 4-2
4.1.3 Logout
There are two ways for you to log out.
One is from menu option:

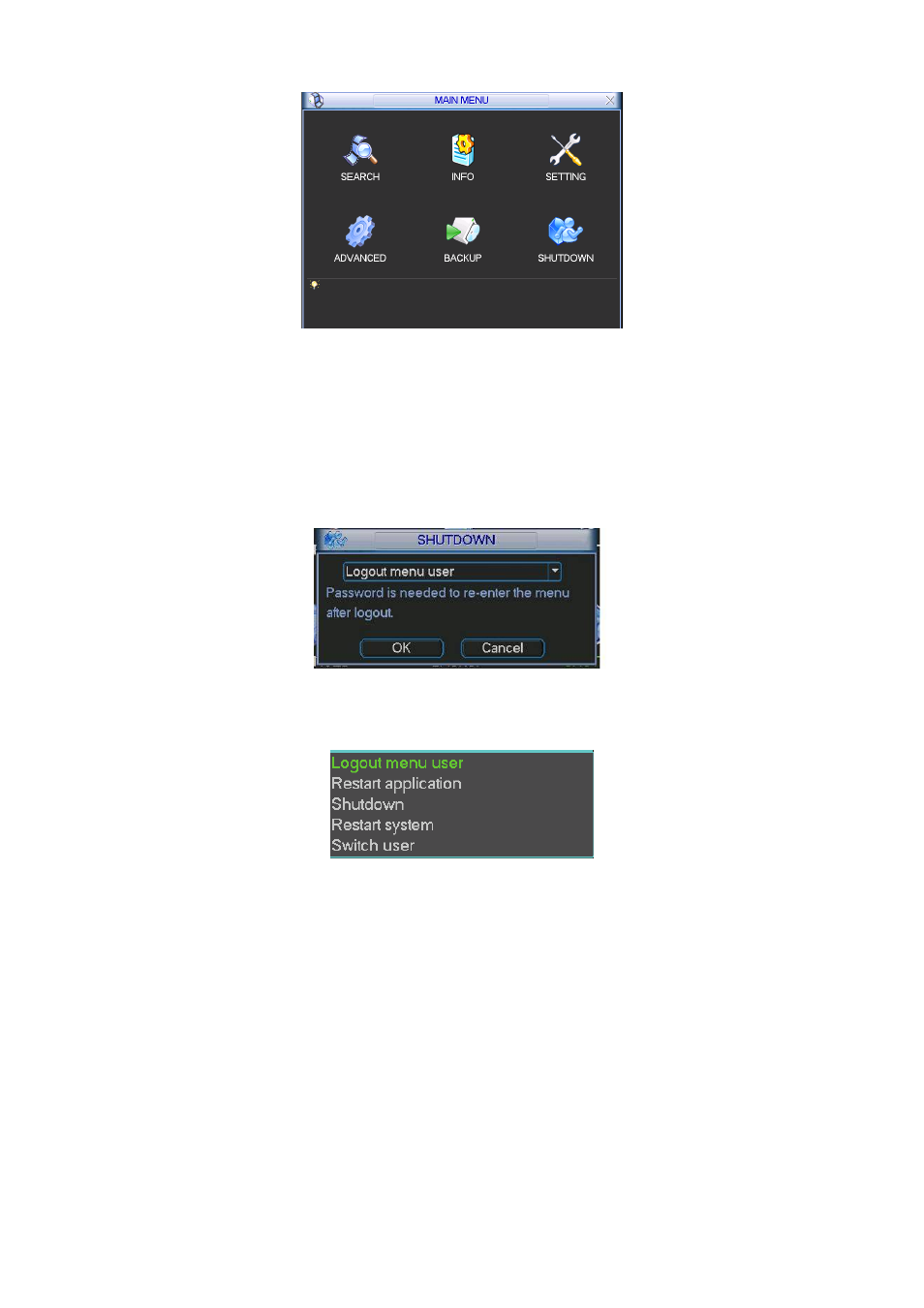

In the main menu, click shutdown button, you can see an interface is shown as below. See
X293H293H293H
Figure 4-3
X.
Figure 4-3
There are several options for you. See
X294H294H294H
Figure 4-4
X
.
Figure 4-4
The other ways is to press power button on the front panel for at least 3 seconds, system will
stop all operations. Then you can click the power button in the rear panel to turn off the
combo DVR.
4.1.4 Auto Resume after Power Failure
The system can automatically backup video and resume previous working status after power
failure.
4.1.5 Replace Button Battery
Please make sure to use the same battery model if possible.
Please contact your local retailer before you replace the battery.
