2 Overview and Controls
This section provides information about front panel and rear panel. When you install this series
combo DVR for the first time, please refer to this part first.
2.1 Front Panel and Side Panel

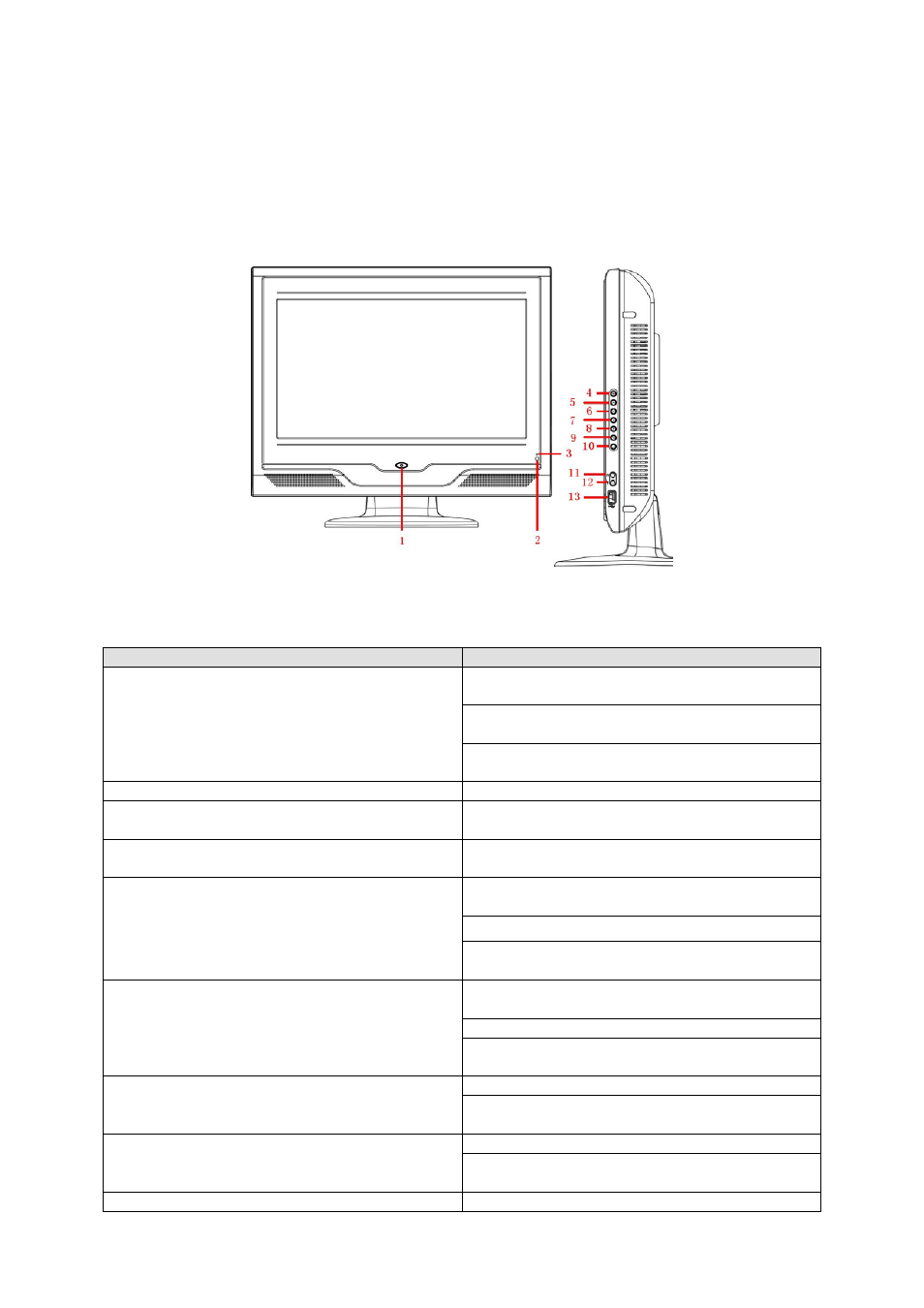

The front panel is shown as in Figure 2-1.
Figure 2-1
Please refer to the following sheet for front panel button information.
SN
Function
When the device is off, press it for a long time
to boot up the device.
When the device is on press it for a long time
to shut down the device.
1
When the device is off, press it for a short time
to close the screen.
2
Power indication light
3
Remote control signal receiver window. It is to
receive the signal from the remote control.
4
Mode button. It is to switch between the PC
input signal and the main board signal.
Switch the current activated control. Go
upward.
Modify setup, such as increase the number.
5
Auxiliary function such as control and switch
the PTZ menu.
Switch the current activated control. Go
downward.
Modify setup, such as decrease the number.
6
Auxiliary function such as control and switch
the PTZ menu.
Switch the current activated control. Go left.
7
It is to adjust the playback control bar when
playback.
Switch the current activated control. Go right.
8
It is to adjust the playback control bar when
playback.
9
Go back to the previous menu or cancel
