Heli-Max HMXE0800 User Manual
Page 12
12

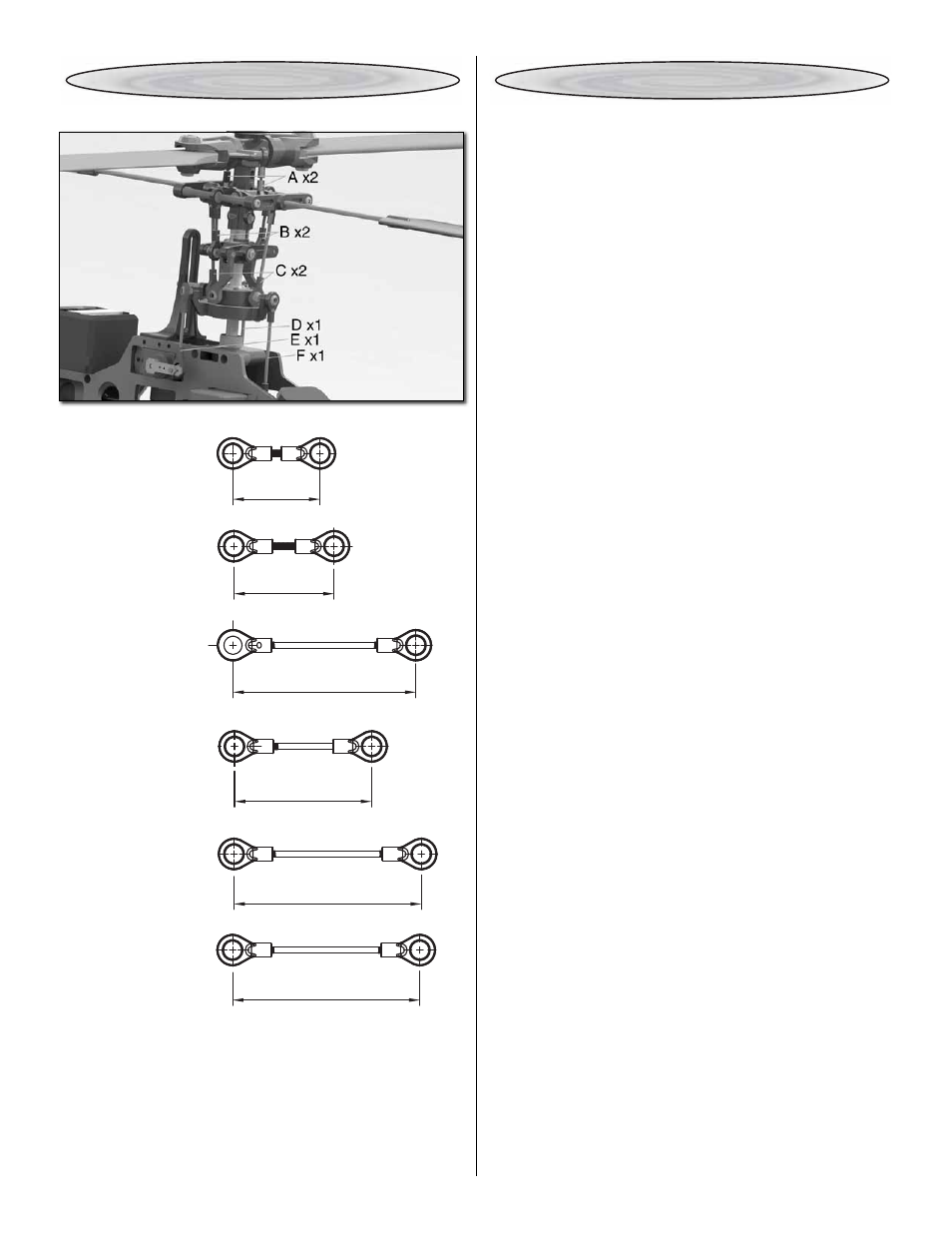

LINKAGE ROD LENGTHS
Linkage A
Linkage B
Linkage C
Linkage D
Linkage E
Linkage F
Tail Rotor Pushrod 286mm
23mm
20mm
42mm
31.5mm
43mm
43mm
ORDERING PARTS
Replacement parts for the Heli-Max AXE 400 3D RTF are
available using the order numbers in the Parts List on page
18. The fastest, most economical service can be provided by
your hobby dealer.
To locate a hobby dealer, visit the Hobbico web site at
www.hobbico.com. Choose “Where to Buy” at the
bottom of the menu on the left side of the page. Follow the
instructions provided on the page to locate a U.S., Canadian
or International dealer.
Parts may also be ordered directly from Hobby Services by
calling (217) 398-0007, or via facsimile at (217) 398-7721,
but full retail prices and shipping and handling charges will
apply. Illinois and Nevada residents will also be charged
sales tax. If ordering via fax, include a Visa
®
or MasterCard
®
number and expiration date for payment.
Mail parts orders and payments by personal check to:
Hobby Services
3002 N. Apollo Drive, Suite 1
Champaign, IL 61822
Be certain to specify the order number exactly as listed in
the Parts List. Payment by credit card or personal check
only; no C.O.D.
If additional assistance is required for any reason contact
Product Support by e-mail at [email protected], or
by telephone at (217) 398-8970.
AXE 400 3D PARTS LIST
#
Stock # .......... Description .......................... Includes
1 HMXE7931
.... Landing
Skid
......................................2
2
HMXE7932 .... Landing Skid Support ........................2
3
HMXE7324 .... Main Frame Screw Set ....................44
4
HMXE7382 .... Canopy Red ......................................1
5 HMXE7383
.... Canopy
Grommets.............................2
6
HMXE8024 .... Tail Gear Drive ...................................1
7
HMXE7325 .... Main Shaft Bolt & Nut Set ..................2
8
HMXE8025 .... One-Way Bearing Shaft .....................1
9
GPMP0406 .... 11.1V 2000mAh LiPo Battery ............1
10 HMXE7933
.... Battery
Tray
........................................1
11 HMXE4130
.... Battery
Tie
.........................................2
12 HMXE8026 ...... Main Rotor Gear w/One-Way Bearing ...1
13 HMXE8520 .... Main Shaft Collar ...............................1
14 HMXE8825 .... Bearings Main Shaft ..........................2
15 HMXE7934
.... Main
Frame
........................................1
16 HMXG8005
.... Main Motor 3500 KV ..........................1
17 HMXE7935
.... Canopy
Supports
...............................2
18 HMXE7326 .... Motor Mount Screws ..........................2
19 HMXE8028 .... 13T Pinion Gear ................................1
20 FUTM0414
.... Servos
...............................................4
21 HMXE7936
.... Servo
Mounts
....................................8
22 HMXE8521 .... Control Linkage Set ...........................1
