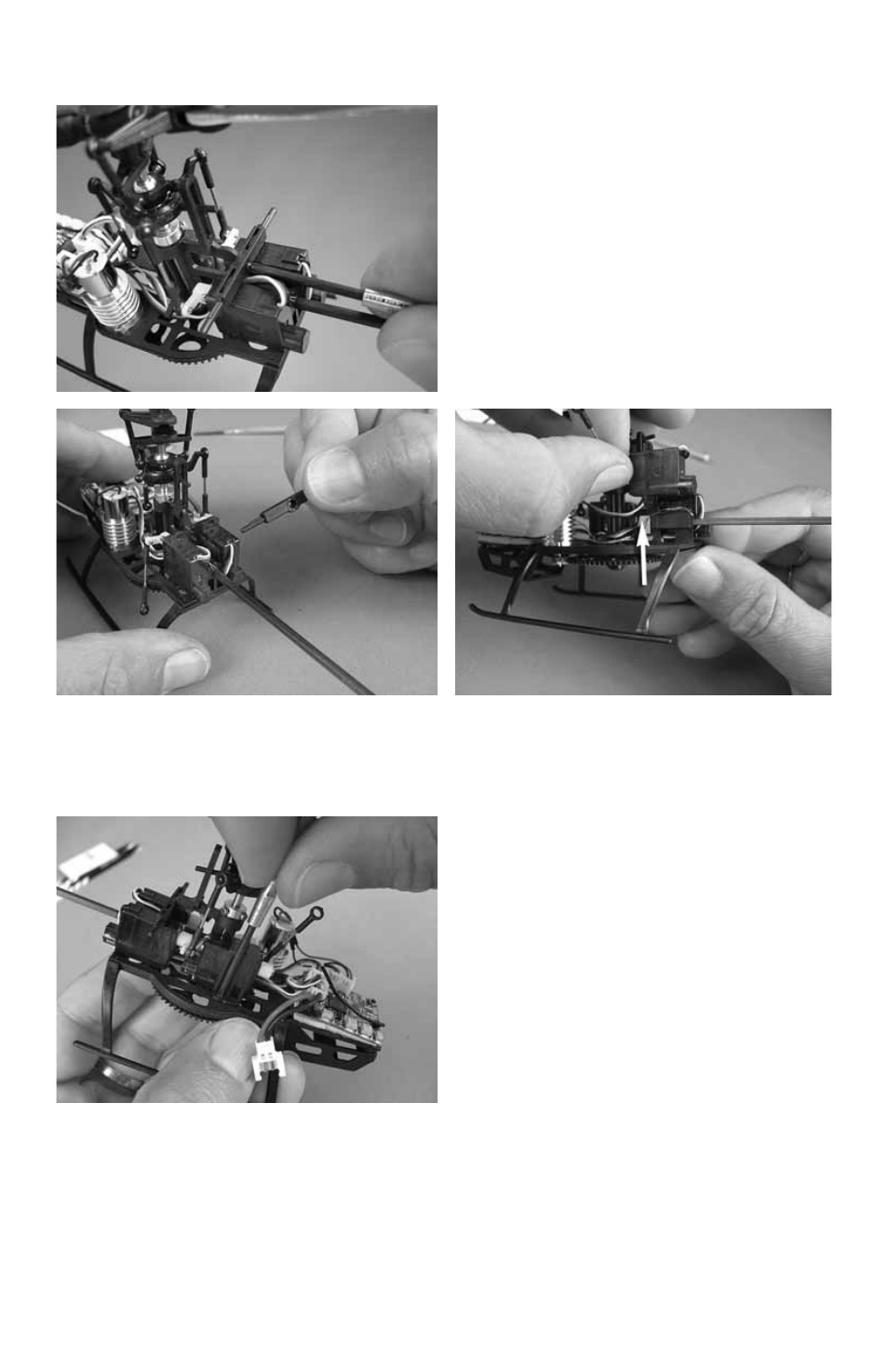

REPLACING AN AFT SERVO
Remove the canopy.
Remove the link from the swashplate.
Unscrew the screw from the attachment
bar.
Carefully slide off the servo tabs.
Snake the wire out of the loom and
unplug the servo.
REPLACING THE FORWARD SERVO
Remove the canopy.
Remove the link from the swashplate.
Unscrew the two screws from each side
of the servo mount.
Snake the wire out of the loom and
unplug the servo.
