Heli-Max HMXE0821 User Manual
Page 17
17

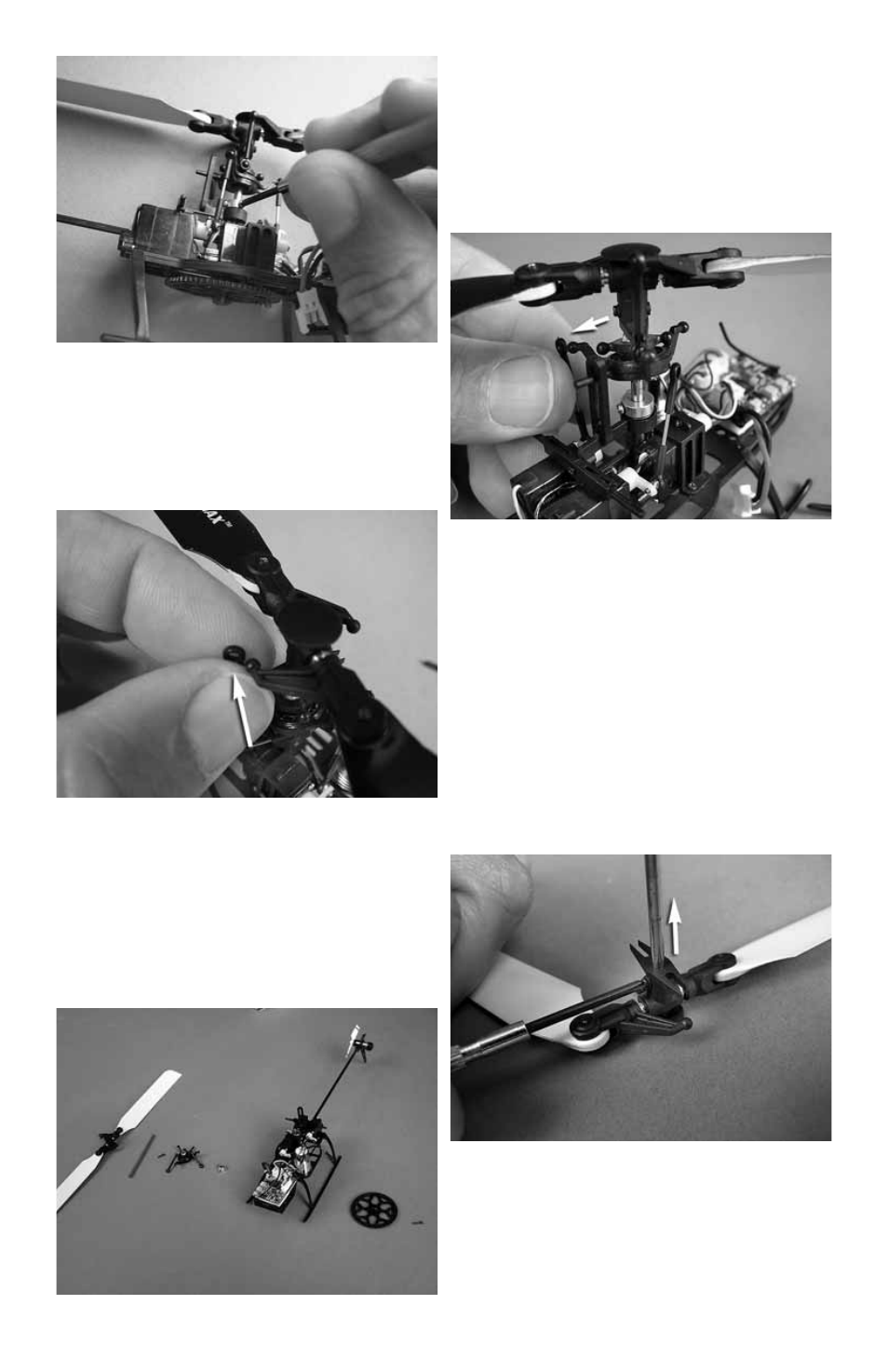

REMOVING THE MAIN SHAFT
Remove the main gear. (Page 16)
Loosen the two screws on the lock collar.
Remove the ball links that attach the
servo pushrods to the swashplate.
Remove the links from the blade grips.
Slide the main shaft and head from
the helicopter and remove the screw
from the head block and slide the main
shaft away.
