GTCO Surface-Lit AccuTab - Users Guide - Manual (Page 8)

Surface-Lit AccuTab 8

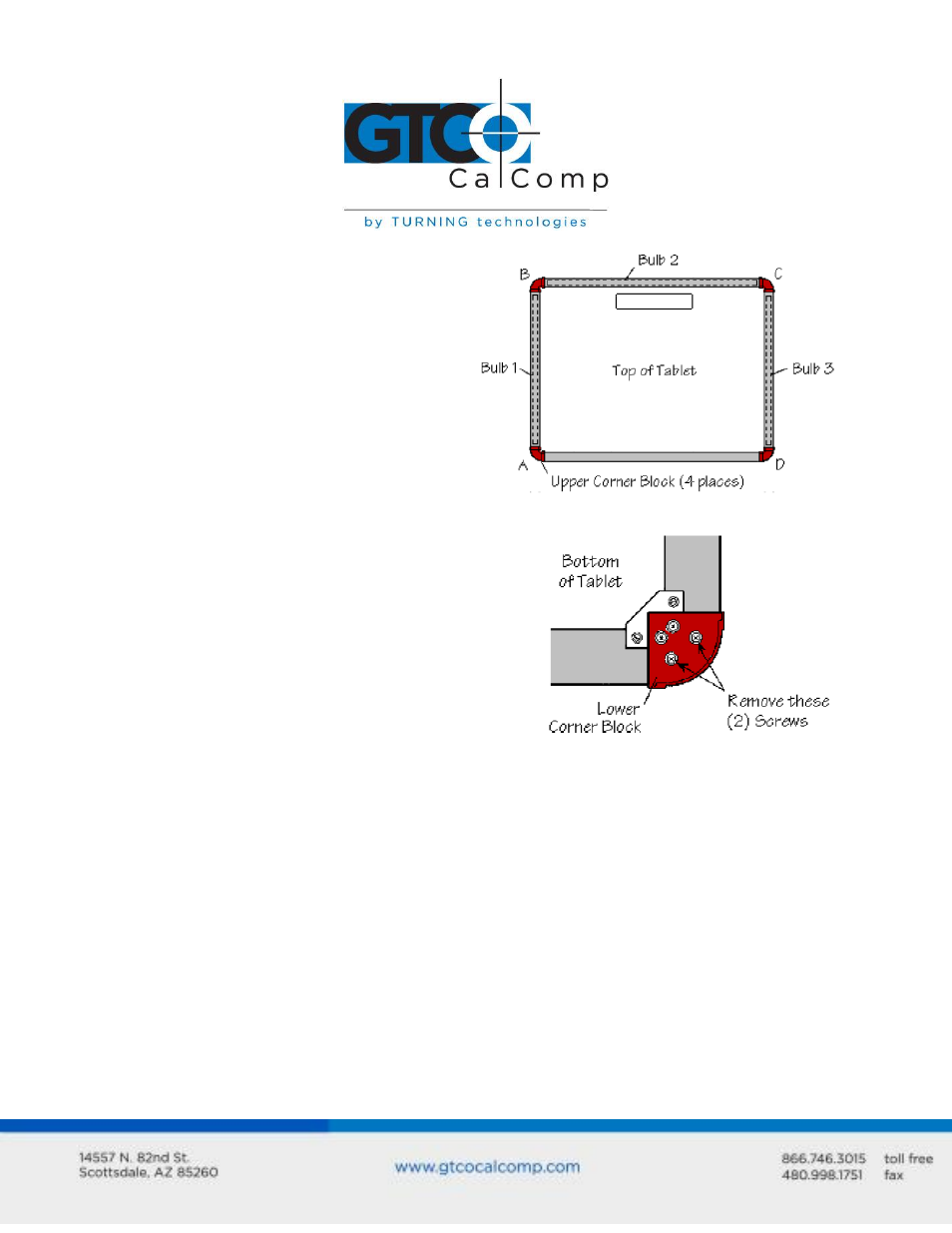

2. Identify which upper corner blocks
you will need to remove:
 To replace bulb 1, remove A
and B.
 To replace bulb 2, remove B
and C.
 To replace bulb 3, remove C
and D.
3. Using a Phillips screwdriver, remove the
appropriate upper corner blocks by
discharging the two screws indicated. (To
prevent the upper corner block from falling
and possibly being damaged, keep one
hand on it while removing the two screws.)
4. Using a flat-blade screwdriver as shown, gently pry the bulb up at one end and then
remove it completely. Use of excessive force could shatter the bulb.
 If the heat sink stays attached to the bulb, remove any adhesive that it leaves
behind in the unpainted area on the lower extrusion (see figure in Step 5).
 If the heat sink remains attached to the lower extrusion, remove it using a
pair of pliers and then discharge any adhesive that it leaves behind in the
unpainted area on the lower extrusion (see figure in Step 5).
