Surface-Lit AccuTab 5
pedestal. Contact GTCO CalComp by Turning Technologies at 1.866.746.3015 or email us at
NOTE: Do not drill holes in any GTCO CalComp by Turning Technologies tablet.
Connecting to Your Computer
GTCO CalComp by Turning Technologies provides an RS-232C cable and a 9-pin to 25-pin

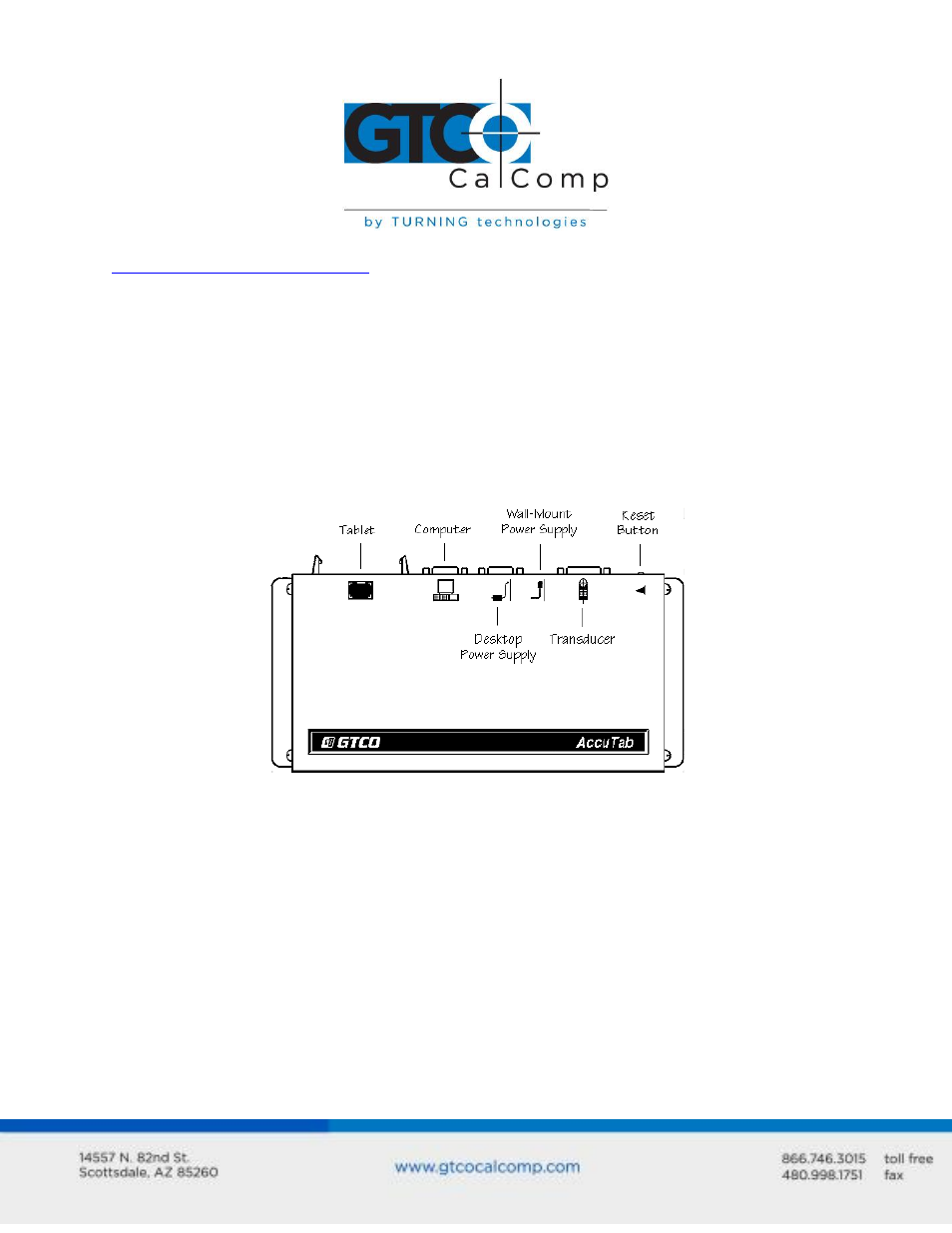

adapter with each AccuTab system. Connect the cable between the port designated by the
computer icon on rear panel of the Controller shown below. Use the 9- to 25-pin adapter if
the computer has a 25-pin RS-232C connector. AccuTab interfacing in the Advanced
Operating Information section contains more information on RS-232C interfacing.
Connecting the Transducer
Three standard transducers are available for the AccuTab:
4-button cursor
16-button cursor
16-button illuminated cursor
Attach the transducer to the transducer jack on the rear panel of the controller pictured on
the previous page.
