Page 7

Before starting to build, take an inventory of this kit to make sure it is complete, and inspect the parts to make sure they
are of acceptable quality. If any parts are missing or are not of acceptable quality, or if you need assistance with assembly,
contact Product Support. When reporting defective or missing parts, use the part names exactly as they are written in
the Kit Contents list.

Great Planes Product Support

3002 N. Apollo Drive, Suite 1

Champaign, IL 61822

Telephone: (217) 398-8970, ext. 5

Fax: (217) 398-7721

E-mail: [email protected]

KIT INSPECTION

(8) 4-40 Steel Threaded Clevis
(6) Solder Clevis
(2) 3/16" [4.8 mm] Axles
(1) Screw-Lock Pushrod Connector

(for throttle pushrod)

(4) Heavy-Duty Screw-Lock Pushrod

Connector (for rudder servos)

(8) 4-40 Hex Nuts
(6) 6-32 Blind Nuts
(2) 5/16" x 24 Lock Nuts
(4) 3/32" [2.4 mm] Push Nuts (retainers

for heavy-duty screw-lock connectors)

(1) Nylon Clevis (for throttle pushrod)
(6) Heavy-Duty Nylon Control Horn
(1) Retainer for Screw-Lock Pushrod

Connector

(13) 1/4" [6 mm] Clevis Retainers
(8) 2-56 x 3/8" [9.5 mm] Phillips Screw
(4) 6-32 x 1/4" [6 mm] SHCS
(24) #4 x 5/8" [16 mm] SMS

(5) 4-40 x 1/4" [6 mm] SHCS (for screw-

lock pushrod connectors)

(6) 6-32 x 5/8" [16 mm] SHCS
(4) 4-40 x 1" [25 mm] SHCS
(10) 4-40 x 1/2" [13 mm] SHCS
(4) 8-32 x 1-1/4" [32 mm] SHCS
(4) 8-32 x 1" [25 mm] SHCS
(2) 1/8" x 3" [3 x 76 mm] Heat-Shrink Tubing
(6) 3/8" x 3" [9.5 x 76 mm] Heat-Shrink

Tubing

(4) 3/16" [4.8 mm] Wheel Collars
(1) .074 x 12" [305 mm] Wire Threaded

One End

(6) 4-40 x 12" [305 mm] Wire Threaded

One End

(10) #4 Lock Washers
(10) #4 Flat Washers
(8) #2 Flat Washers
(8) #8 Split Ring Lock Washers
(8) #8 Flat Washers

(6) #6 Lock Washers
(19) Hinge Points
(4) 5/16" [8 mm] Anti-Rotation Pins
(2) Long Tie-Straps
(10) Cowl Alignment Disks
(1) Throttle Servo Tray
(1) 3/8"-24 Spinner Adapter
(1) 5 x 54 mm Spinner Screw
(1) 5 x 70 mm Spinner Screw
(1) 5 mm Nut
(2) 1/4"-20 Nylon Wing Bolts
(2) Canopy Alignment Pegs
(1) Pull-Pull Rudder System (includes

pull-pull cable, brass couplers,
swages, aluminum servo arm
extensions, and joiner rods

Kit Contents (not photographed)

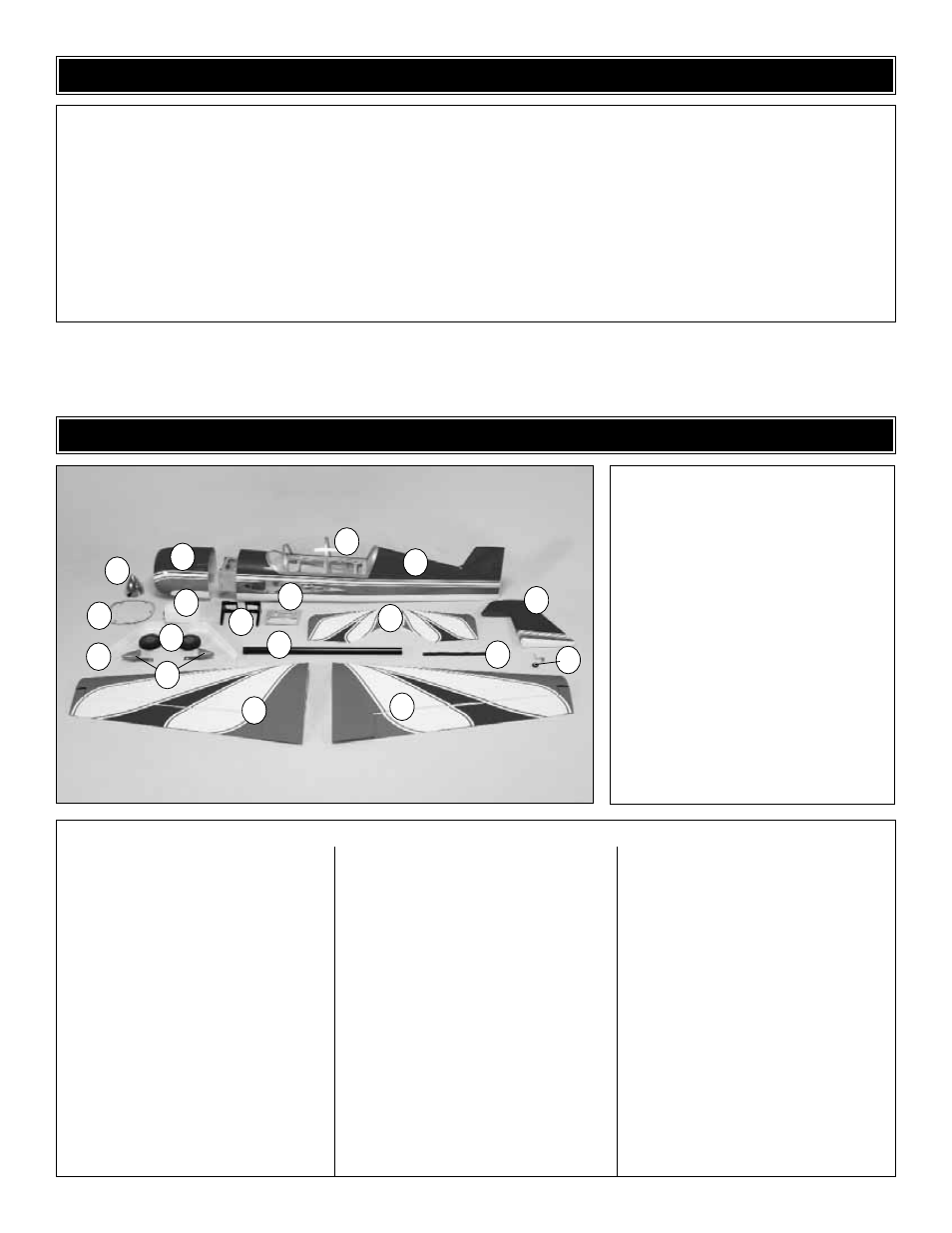

KIT CONTENTS

Kit Contents

Aluminum Spinner

Cowl

Canopy

Fuselage

Cowl Ring

Fuel Tank

Main Wheels (2)

Wheel Spats (L&R)

Main Landing Gear (L&R)

10. Engine Mount (L&R)
11. Aft Receiver/Battery Tray
12. Aluminum Wing Tube
13. Horizontal Stabilizer & Elevators
14. Hook & Loop Material
15. Rudder
16. Tailwheel Assembly
17. Left Wing Panel & Aileron
18. Right Wing Panel & Aileron
