9
with the servo) into each hole and back it out. Apply a drop
of thin CA to each hole to harden the wood. When the CA
has dried, install the servos onto the hatch covers using the
hardware supplied with the servos.
❏

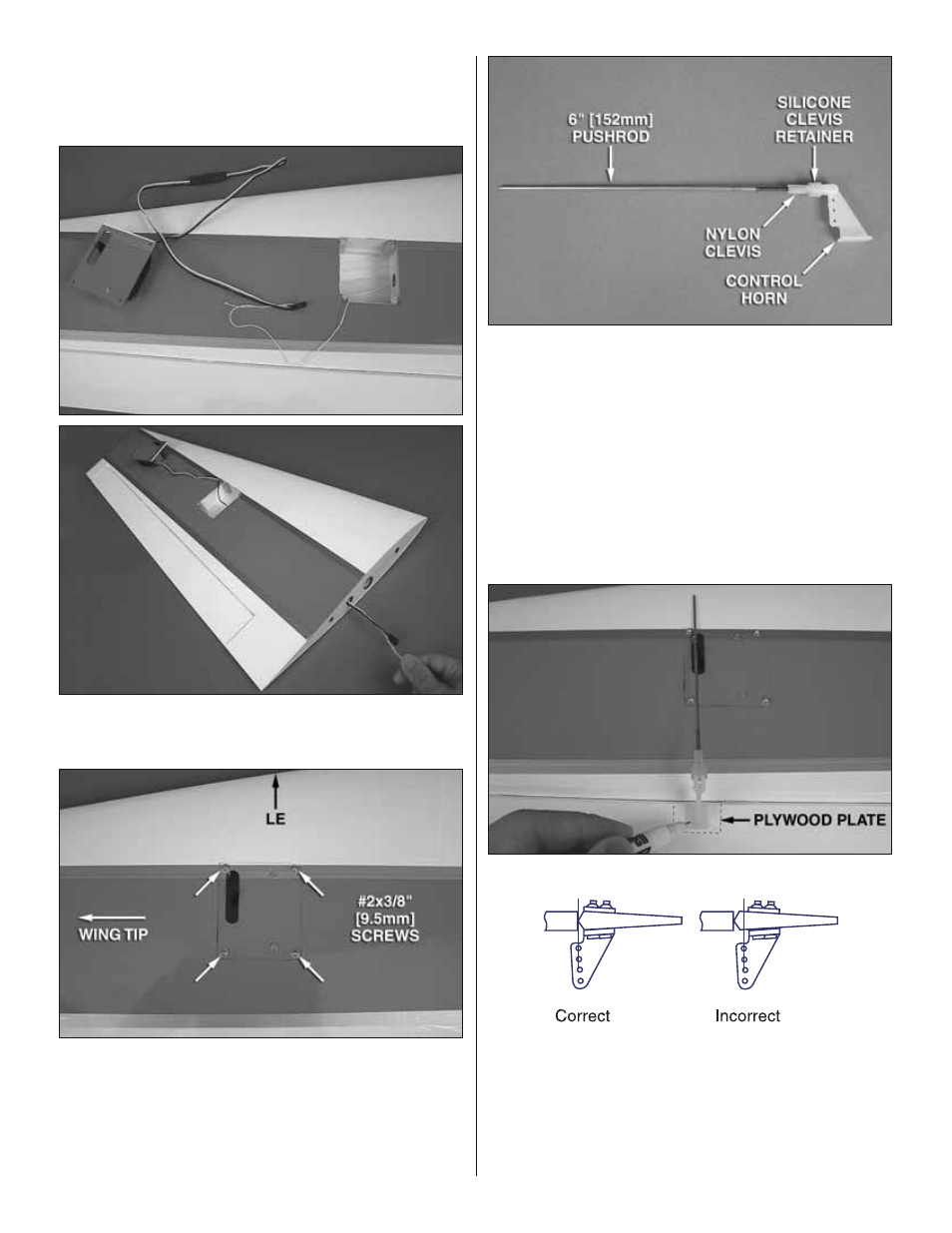

7. Use the strings taped inside the aileron servo hatches
to pull the servo leads through the wing ribs.
❏
8. Position the aileron servo hatch covers in place and
drill a 1/16" [1.6mm] hole through the mounting holes and
into the hatch mounting blocks. Thread a #2 x 3/8" [9.5mm]
self-tapping screw into each hole and back it out. Apply a
drop of thin CA to each hole to harden the wood. Install the
hatch covers to the wings using eight #2 x 3/8" [9.5mm] self-
tapping screws and eight #2 fl at washers.
❏
9. Thread a nylon clevis 20 complete turns onto each 6"
[152mm] pushrod. Slide a silicone clevis retainer onto each
clevis and connect the clevises to the outer holes of two
control horns.
❏
10. Position the control horns over the plywood plates in the
ailerons (if you cannot see them, hold the aileron at a shallow
angle in good lighting or use a small pin to puncture the
covering) using the position of the servo arms as a guide. Align
the holes in the control horns directly over the aileron hinge line
and mark the location of the control horn mounting holes.
