21
❏

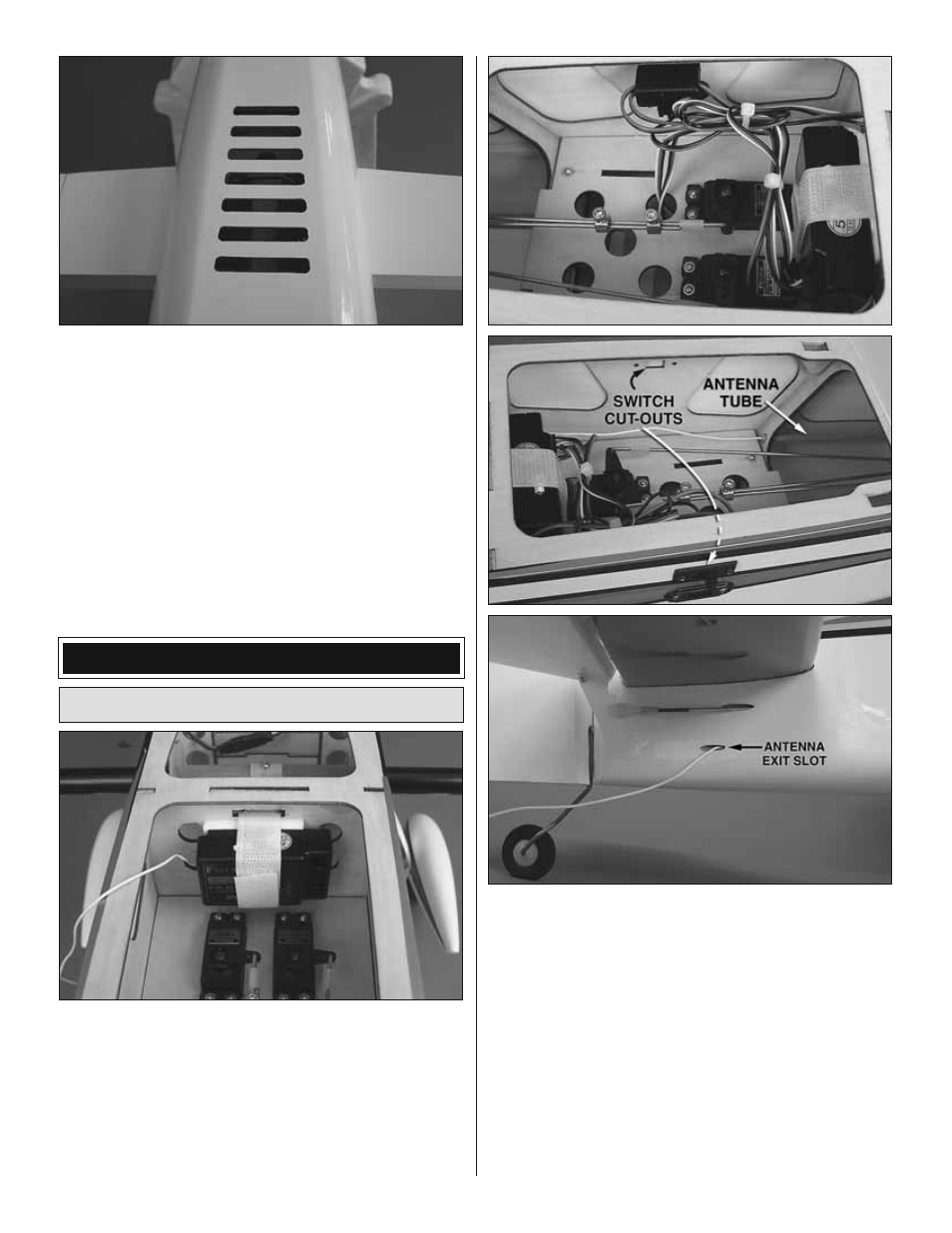

7. Cut the covering from the seven cooling slots on the
underside of the fuselage.
FINISH THE MODEL
Install the Receiver
❏
1. Make a strap from the included hook and loop material
to fi t your receiver. Cut a piece of foam rubber (not included)
to fi t your receiver and strap the receiver to the former in
front of the tail servos as shown.
❏
2. Connect the servos to the receiver being sure that the
leads will not interfere with the tail pushrods. Depending on
the ESC being used (if applicable), you may need a servo
extension to reach the receiver.
❏
3. Pre-cut openings are provided on both sides of the
fuselage for mounting an on/off switch. The hole spacing is
made for a Futaba mini switch harness. If you are using a
different switch, you may need to modify the pre-cut opening,
or mount it in a different location. An optional charge jack
receptacle can be mounted below the switch. Feed the
receiver antenna through the antenna tube pre-installed in the
fuselage. Cut the covering from the antenna tube exit slot at
the back of the fuselage and pull the antenna out. Be sure that
the receiver antenna will not interfere with the tail pushrods.
