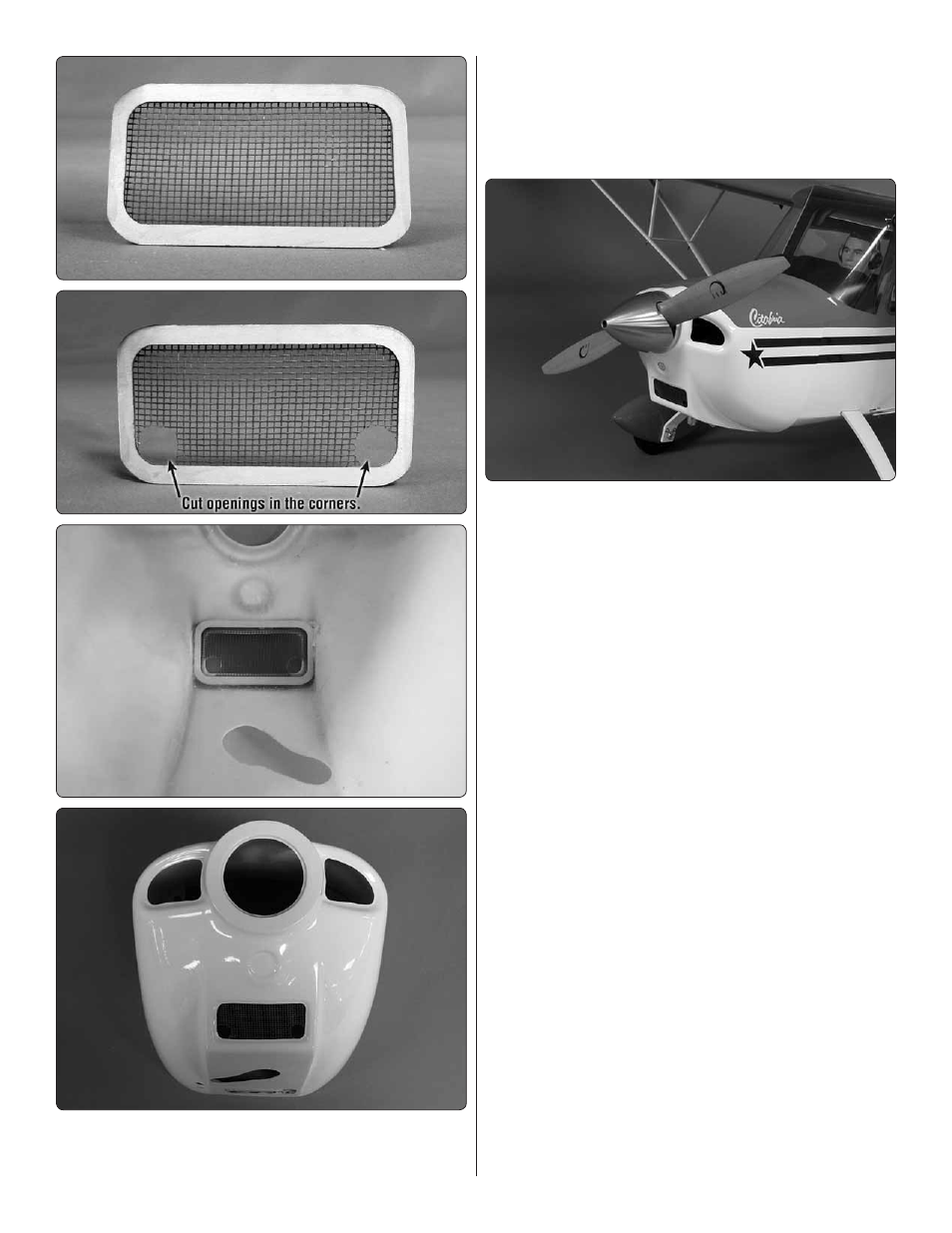

11. Included in the kit is a screen that can be glued in the
front of the cowl to add a nice scale detail. This installation is
optional. If you install the screen you will not have access to
two of the cowl mounting screws. Depending on which muffler
you used, you may be able to reach the screws through the
cut outs you made for the muffler. You can also cut the lower
corner of the screen as shown in the photo. This will allow you
the access you need. Once you have modified the screen or
cowl as needed, glue the screen inside the cowl.
❏
12. Install the spinner onto the front of the engine or motor.
The spinner back plate is pre-drilled for the O.S. GT33. The
spinner also comes with a bushing that will allow the back
plate to be used on smaller shafts that may be on electric
motors or glow engines. If you are using a DLE 30 the hole
in the spinner will need to be enlarged by drilling the spinner
with a 25/64" [10mm] drill bit.
