22
❏

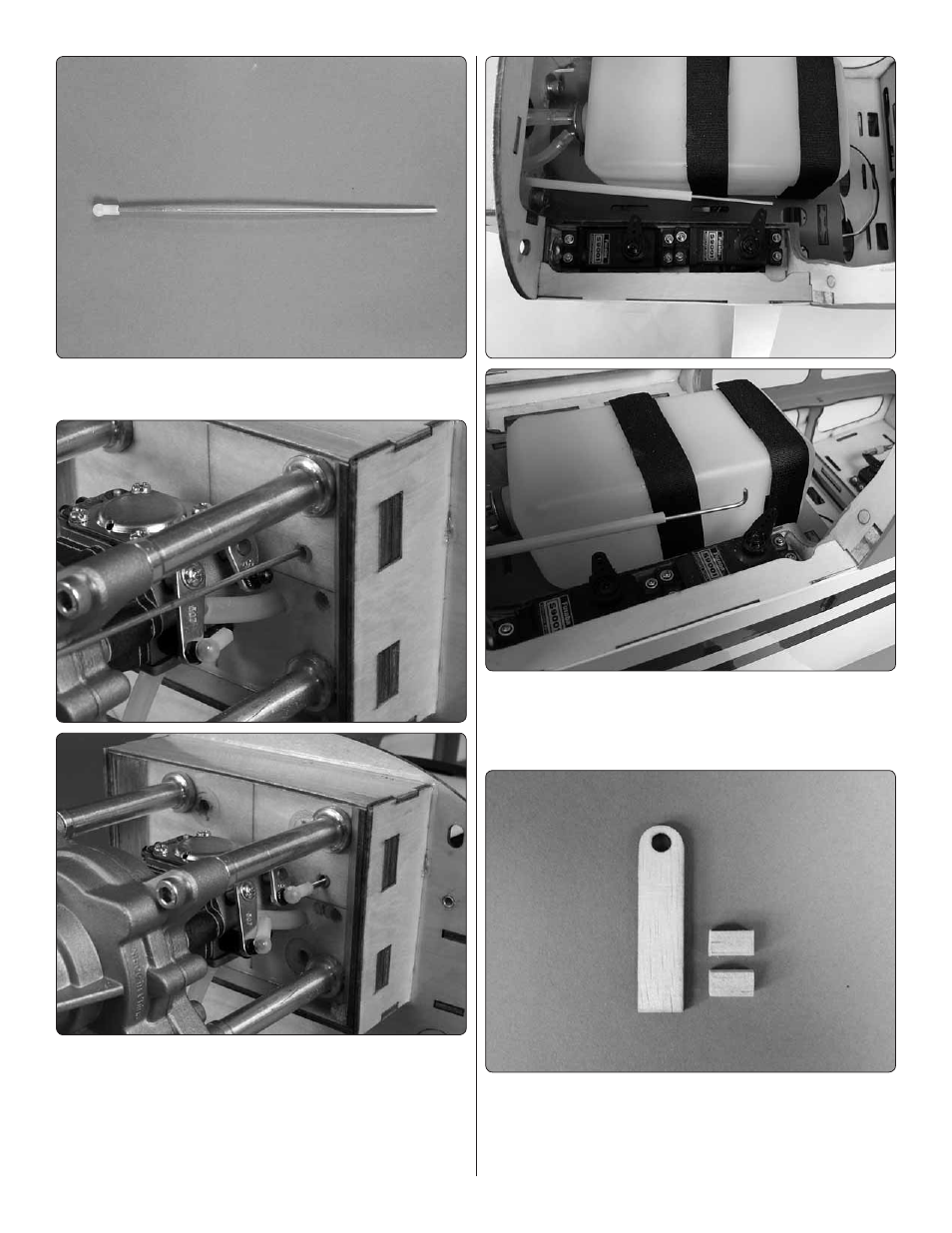

15. Thread a 2-56 x 6" [152mm] threaded wire into the
nylon ball link you cut.
❏
16. Slide the wire into the tube, inserting it through the
front of the firewall. Snap the nylon ball link onto the ball link
on the choke servo.
❏
17. Move the choke arm towards the firewall. Position the
servo arm as shown. Bend the pushrod wire in line with the
outer hole in the servo arm. Drill the outer hole in the servo
arm with a 5/64" [2mm] drill.
❏
18. Locate the plywood pushrod support and the two
1/4" x 1/4" x 1/2" [6 x 6 x12mm] hardwood sticks.
