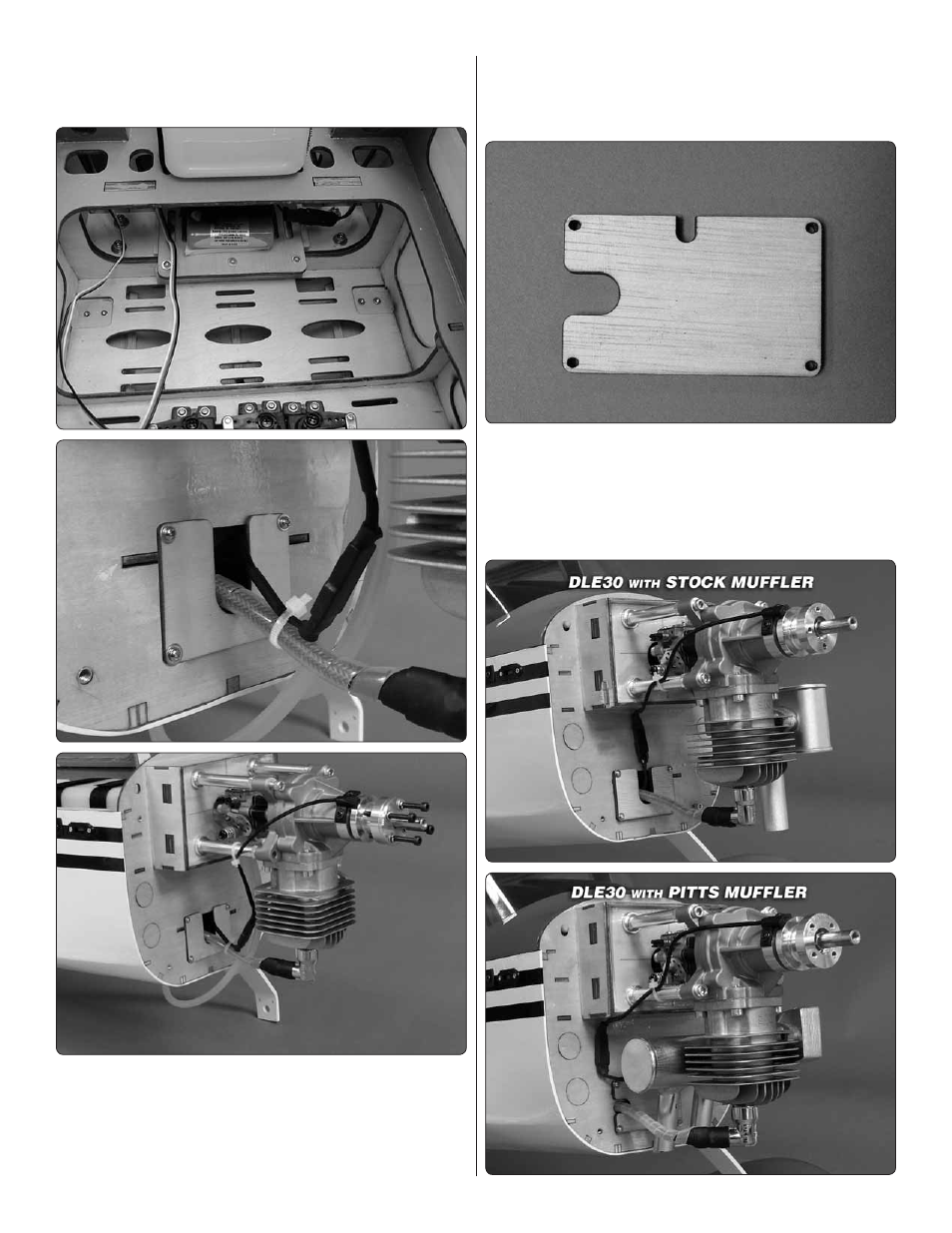

27. Make all of the required connections between the

battery, switch harness and the ignition module following the
instructions with the engine.

❏

28. Insert the accessory tray under the fuel tank and insert

the two tabs in the front of the tray into the slots in the firewall
to retain the front of the tray. Let the back of the tray rest
on the hardwood stick. Drill a 1/16" [1.6mm] hole through
the mounting holes in the tray and into the hardwood stick.
Secure the tray to the stick with three #2 x 3/8" [10mm] screws

and #2 flat washers. The spark plug lead and ignition module
connection should feed through the opening in the firewall.
Screw the plywood plate in place with four #2 x 3/8" [9mm]
screws and #2 flat washers as shown in the photo.

❏

29. The installation shown of the DLE 30 assumes the

installation of the stock muffler, but if you choose to install a

Pitts Style muffler you will find that the wires from the ignition
module will contact the muffler. If you install a Pitts muffler
you need to use the plywood plate shown here to route the
wires away from the muffler.
