INSTALL THE WHEELS, WHEEL

PANTS AND WING STRUTS

❏

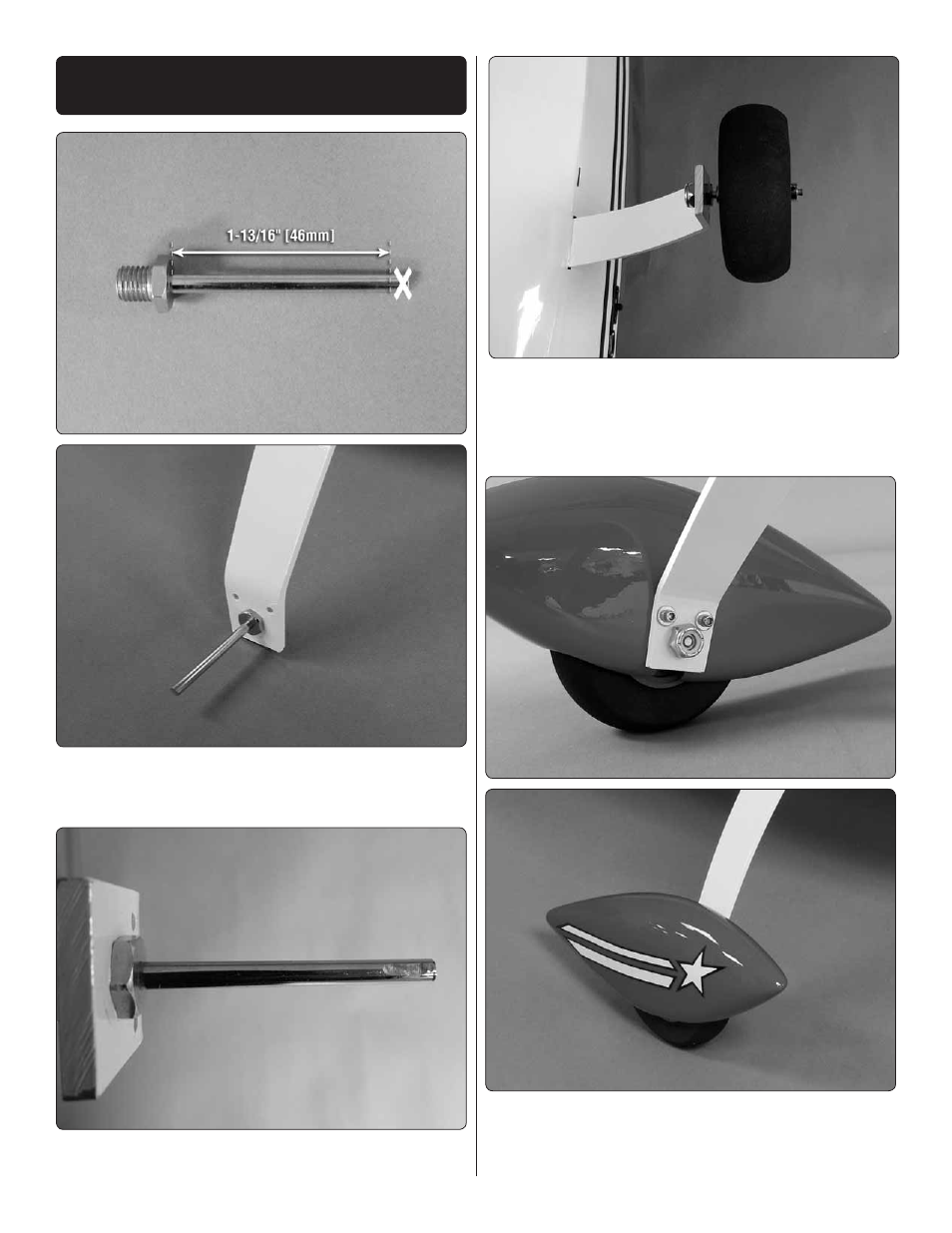

1. Cut the two wheel axles to a length of 1-13/16" [46mm].

Install the axle to the main landing gear securing it with the
two 5/16-24 nylon lock nuts.

❏

2. Make a flat spot on the end of the axle. The flat spot

should be towards what will be the bottom of the airplane.

❏

3. Insert a 6-32 set screw into two of the 3/16" [4.8mm]

wheel collars. Slide one wheel collar onto the axle followed by
the wheel and then another 3/16" [4.8mm] wheel collar. Center
the wheel and then tighten the set screws. Be sure the wheel
collar on the end of the axle rests on the flat spot you made.

❏

4. Slide the wheel pant over the wheel and axle. Secure the

pant to the landing gear with two 4-40 x 1/2" [13mm] socket
head cap screws, #4 lock washer and #4 flat washer. Apply
a drop of thread locker before inserting the screws into the
