Great Planes Giant Citabria 30cc/EP ARF - GPMA1435 - Manual (Page 21)

21
❏

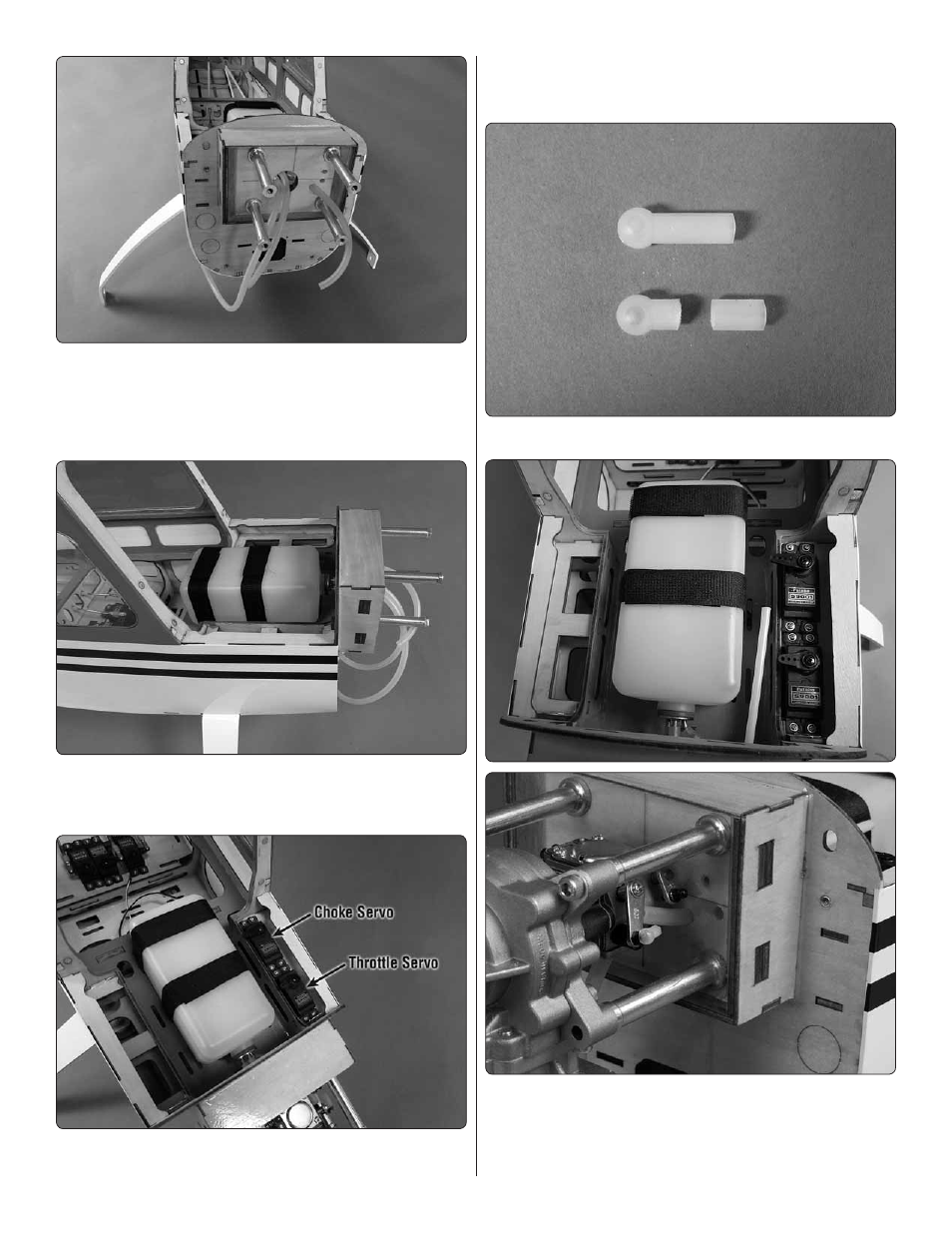

10. Install fuel lines onto the brass tubes from the fuel tank.
To route the fuel lines as shown here you will need to use a 6"
[152mm] length of tubing on the fill line, a10" [254mm] length
of tubing on the vent line and a 4" [102mm] length of tubing
on the carburetor line.
❏
11. From the hook and loop material provided with the kit
cut two straps to fit through the slots in the plywood tray and
around the fuel tank to secure the tank in the fuselage.
❏
12. Install the throttle and choke (optional) servos as
shown. The servos can be mounted on both sides of the
fuselage if your carburetor happens to be on the opposite
side of the engine than our DLE 30. Install the servos with
the hardware provided with your servos.
❏
13. Locate one of the nylon ball links. Cut it in half as shown.
❏
14. Locate the 11-3/4" plastic pushrod tube. Cut a 4"
[102mm] piece from it. Roughen the end of the tube with 120
grit sandpaper. Use 5-minute epoxy and glue the tube into
the hole you drilled for the choke linkage. When positioning
the tube it should be flush with the firewall.
