INSTALLATION INSTRUCTIONS

Fixture Name: Waverly 3500-SF AB

For Chandelier Light Fixture

WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

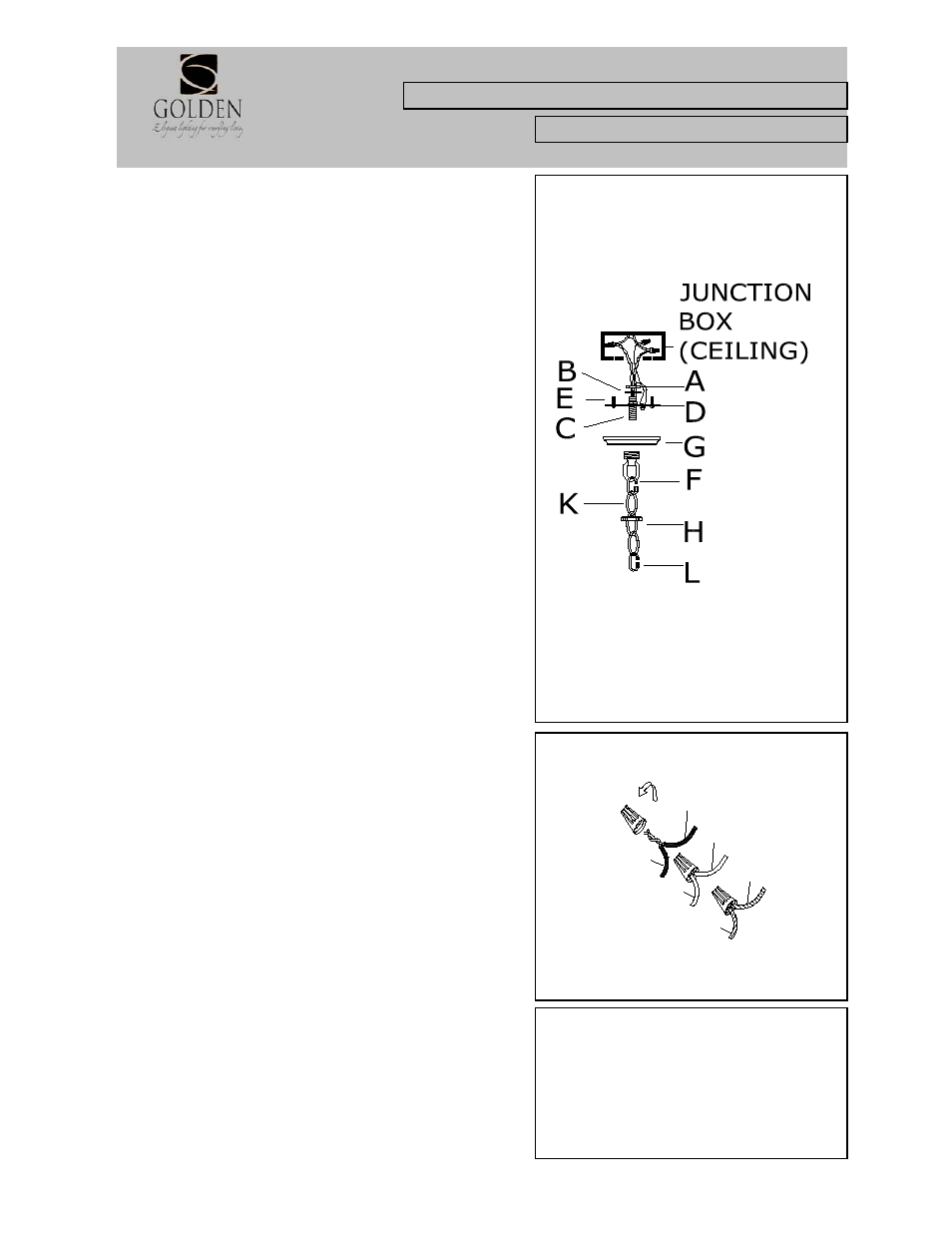

Fig. 1

Fig. 2

YOUR INSTALLATION IS NOW

COMPLETE. RETURN POWER TO THE

JUNCTION BOX AND TEST THE

FIXTURE.

BARE COPPER

(Ground)

GREEN
(Ground)

FIXTURE WIRES

SMOOTH (BLACK)

RIBBED (WHITE)

BLACK

WHITE

HOUSE WIRES

HANGING THE FIXTURE (Fig. 1)

1. Carefully remove the new fixture from the carton and the

yellow bag that holds all parts. Check that all parts are included

as shown in the illustration and the Parts and Assembly Sheet.

2. Shut off the power at the circuit breaker and completely

remove the old fixture from ceiling, including the old mounting

strap.

3. Thread Nipple (C) into Canopy Loop (F) until snug.

4. Thread the other end of Nipple (C) with the canopy loop

attached into Mounting Strap (D).

5. Place Lock Washer (B) over the end of Nipple (C). The end of

Nipple (C) should protrude through Mounting Strap (D). Thread

Hex Nuts (A) onto Nipple (C) until tight.

6. Take the mounting strap assembly and mount to the ceiling

junction box with Junction Box Screws (E). Tighten the screws

securely with a screw driver.

7. Unscrew Canopy Loop Collar (H) from Canopy Loop (F). Take

the canopy and pass over the canopy loop. Approximately one

half of the canopy loop's exterior threads should be exposed.

Adjust until the desired height is reached.

*The Canopy loop collar should fit snugly on the Canopy loop

after the canopy is installed. Remove Canopy and Canopy

lock collar.

8. Assemble the fixture and have an assistant or a secure support

to hold the weight of the fixture while you complete the wiring

connections.

9. Thread the fixture wires and ground wire of the assembled

fixture through the canopy loop and nipple and into the outlet

box.

CONNECTING THE WIRES (Fig. 2)

10. Attach the power supply wires to the fixture lead wires by

connecting BLACK to BLACK (or SMOOTH) and WHITE to WHITE

(or RIBBED).

11. Attach the GROUND wire (GREEN or COPPER) from the

Junction Box and the fixture ground wire to the green Ground

Screw on Mounting Bracket (D) or connect both wires together

using the correct size of wire connectors.

NOTE: Twist the wires together in the same direction you

twisted the wire connector onto the wires.

12. Tuck these wire connections neatly into the Junction Box.

13. Raise Canopy (G) to the ceiling and secure in place by

tightening Canopy Loop Collar (H) into the Canopy Loop (F).

14. Install the light bulbs and shade as per the fixture assembly

sheet.
