FINISHING THE INSALLATION (Fig.3)
9. Place Canopy (F) over Mounting Strap (B) and over the
Mounting Screws (A). Adjust the canopy until Mounting Screws
(A) protrude through canopy (D). Secure the fixture against the
ceiling by threading the Decorative Nuts (E) until tight.
10. Install the light bulbs and glass shade as per the fixture
assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE. RETURN POWER TO THE
JUNCTION BOX AND TEST THE FIXTURE.

Fig. 3

Fixture Name:

Waverly

3500-SF AB

For Semi Flush / Convertible Light Fixture

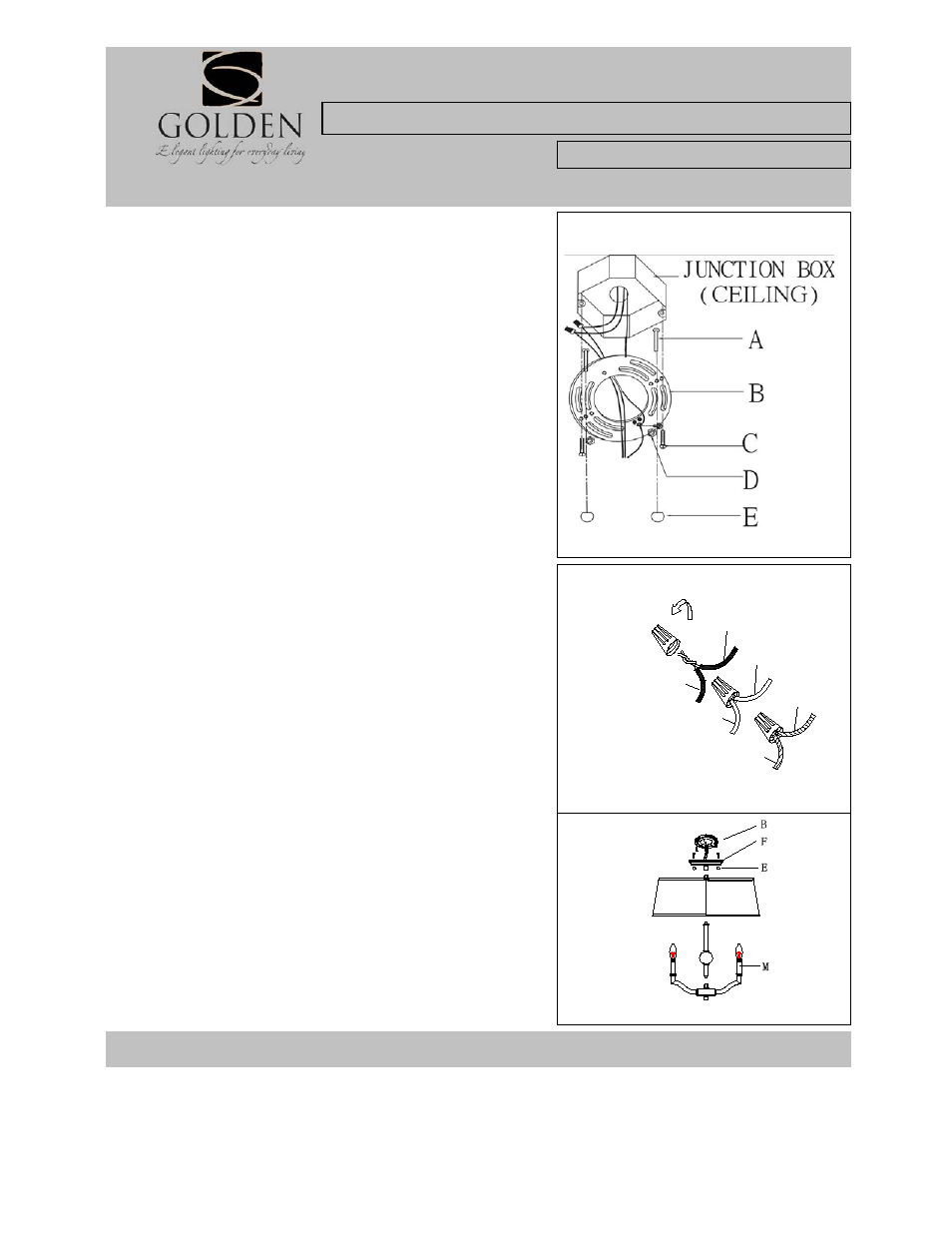

INSTALLATION INSTRUCTIONS

For Customer Service, contact the place of purchase to arrange for replacement parts.

WARNING! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

HANGING THE FIXTURE as Semi flush (Fig. 1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holds all your parts. Check that all parts are
included as shown in the illustration and Parts List.
2. Shut off power at the circuit breaker and completely remove
the old fixture from ceiling, including the old mounting strap.
3.Circular Strap (B) contains several pairs of threaded holes.
Find the pair of holes that matches the spacing of the holes in
Canopy (F) and thread Mounting Screws (A) half way into the
Mounting Strap (B) facing down. Secure in place with hex nuts.
The threaded ends should protrude through the holes in
Canopy (F).
4. Place Mounting Strap (B) over the junction box.
5. Attach the Mounting Strap (B) to the Junction Box using
Mounting Screws (C). Tighten the screws securely with a screw
driver.

Fig. 1

CONNECTING THE WIRES (Fig. 2)

6. Attach the power supply wires to the fixture lead wires by

connecting BLACK to BLACK (or SMOOTH) and WHITE to WHITE (

or RIBBED) .

7. Ground wire connection: Connect the fixture ground wire to

house ground wire, which usually has green or copper

insulation, with the correct size of wire connector. If there is no

house ground wire at ceiling junction box then attach fixture

ground wire securely onto green grounding screw located on

the mounting bar.

NOTE: Twist the wires together in the same direction that you

twisted the wire connector onto the wires.

8. Tuck the wire connections neatly into the Junction Box.

Fig. 2

BARE COPPER

(Ground)

GREEN
(Ground)

FIXTURE WIRES

SMOOTH (BLACK)

RIBBED (WHITE)

BLACK

WHITE

HOUSE WIRES
