ASSEMBLING THE FIXTURE (Fig. 1)
1. If the arms are packed closed, gently spread the
arms until evenly spaced .
2. Feed the fixture wires through the Top Threaded
Rod (N), Top Cover (O), Hex Nut (P), Top Cap (Q),
Check Ring (R) and Top Loop (J) and pull the wires
until taut.
3. Turn Top Threaded Rod (N) into the coupling at the
top center of Frame (M).
4. Slide the Top Cover (O) over Top Threaded Rod
(N). Secure in place with the Hex Nut (P) until tight.
SlideTop Cap (Q) over Threaded Rod (N), secure in
place with Check Ring (R) until tight.
Notice: Please review the parts listing and check for all parts before assembling the fixture. If any parts are
missing or damaged, please note onthis sheet and contact the place of purchase to arrange for
replacement parts.
PARTS LIST
Company Name:_______________________Co. Account #:_____________
to be filled out by retailer
2ea/2ea @3/8 x 3mm/@3/8 x 5mm

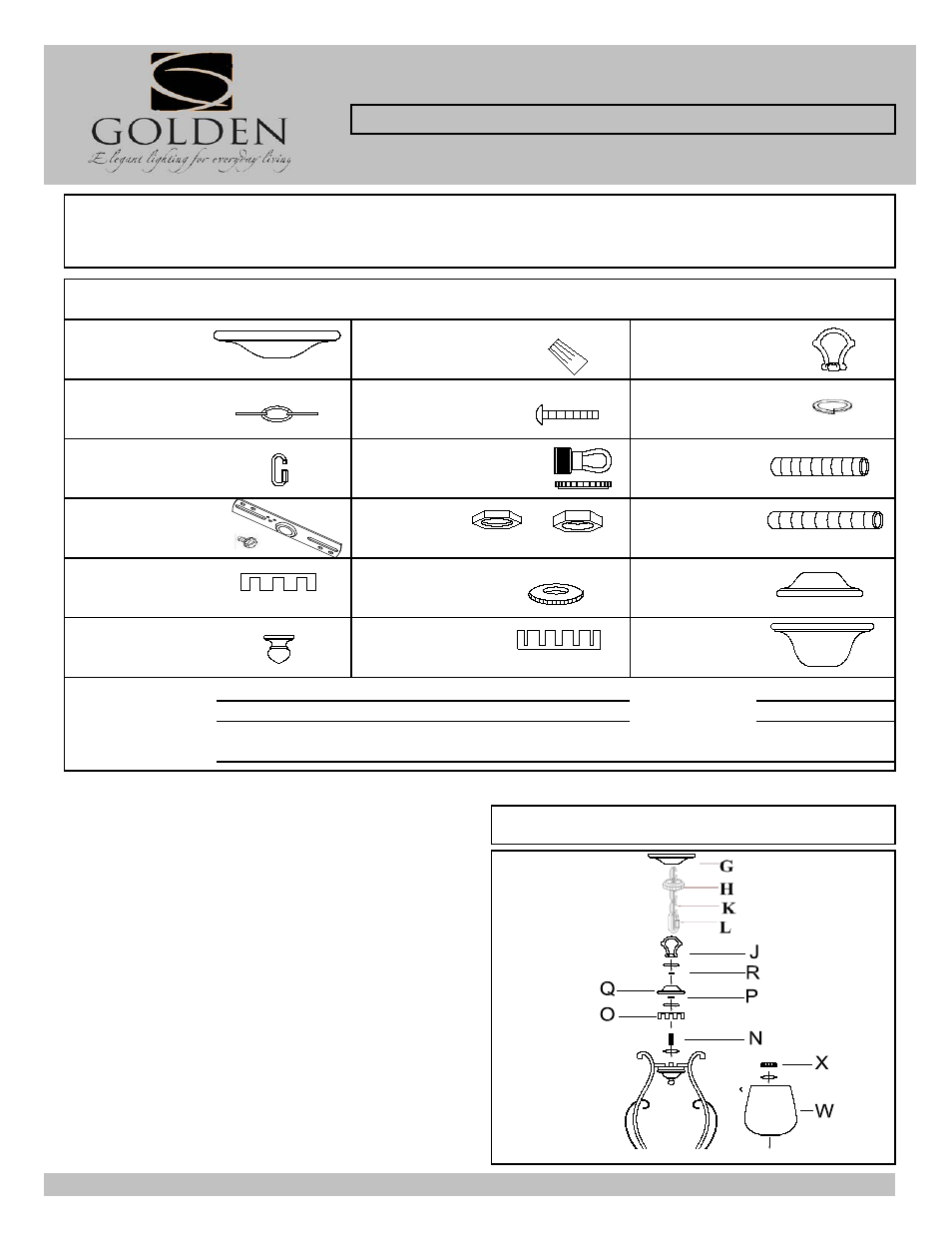

PARTS & ASSEMBLY SHEET
1089-9RSB
Read and review installation instruction sheet before
assembling the fixture.
F IXTURE A SSEMBLY I NSTRUCTIONS
This fixture assembled PO:__________ Date: ________
Fixture Name: Pemberly Court 1089-9 RSB-PRL
Canopy Loop
with Collar
For Customer Service, contact the place of purchase to arrange for replacement parts.
Fig. 1
NOTE: INSTALL THE GLASS ASSEMBLY AFTER THE
FIXTURE IS HUNG.
