PA G E 3 0 I n s t r u c t I o n m A n uA l t X 3 5 1 0 / t X 3 5 2 0 / t X 3 5 4 0

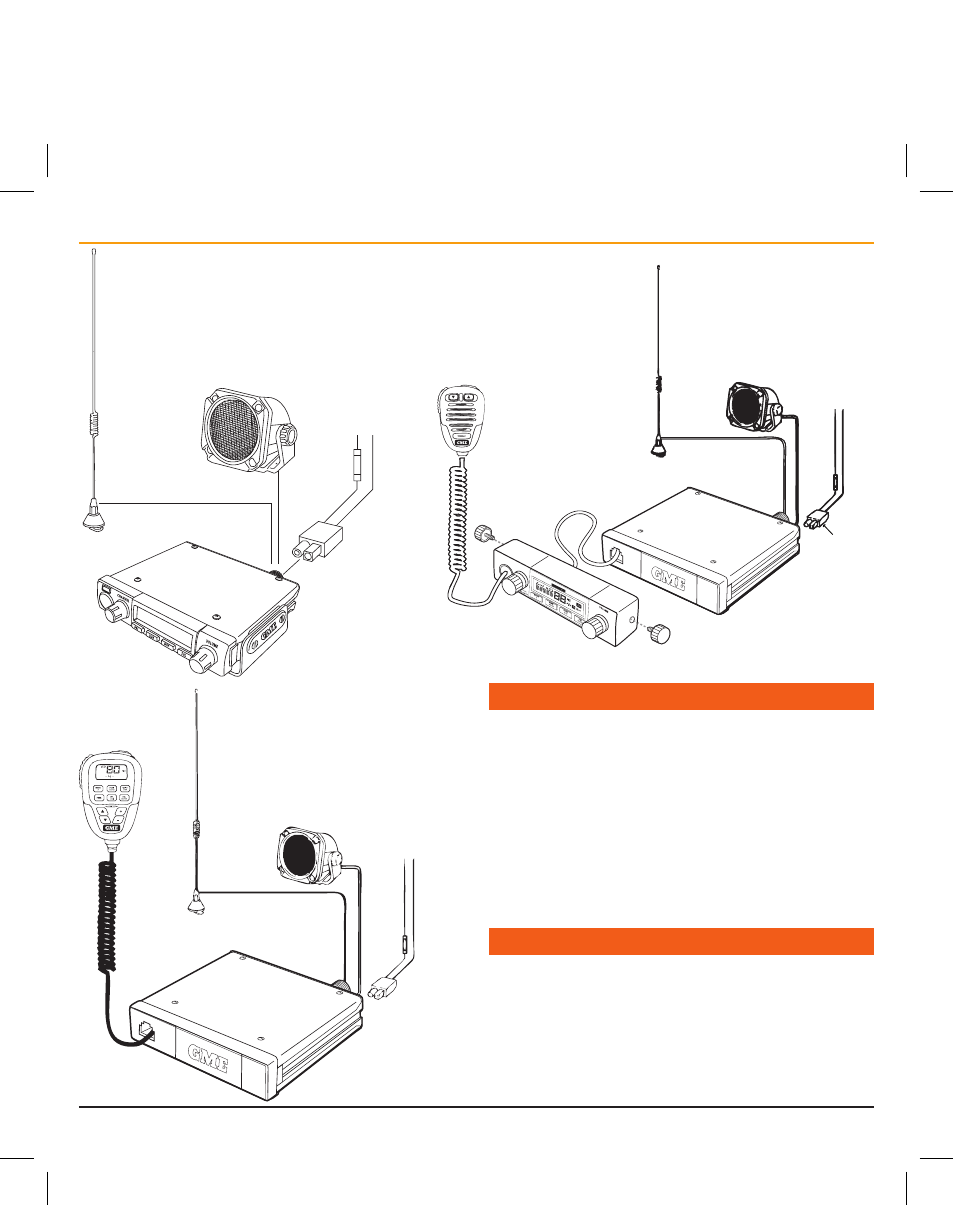

TX3510 Main Wiring
CHANNEL
TX3520 Main Wiring
TX3540 Main Wiring
WIRING
aNTENNa CONNECTION
It is essential to select a good quality, high efficiency, 477 mHz
antenna. A poor quality antenna or one not designed for the
specific frequency band you are using will give very
poor performance.
GmE have a wide range of suitable 477 mHz uHF cB
antennas to suit most installations and applications. We
recommend contacting your local GmE retailer for advice.
connect to the antenna cable to the rear antenna socket using
a Pl259 coaxial connector.
NOISE SUPPRESSION
the inherent design of Fm transceivers results in a high level
of resistance to ignition and electrical interference. However
in some installations it may be necessary to take additional
steps to help reduce or eliminate noise interference. During
installation, try to route the Dc battery leads, the antenna lead
or any accessory wires away from the engine compartment,
Extension speaker
Extension speaker
coax cable
coax cable
uHF Aerial
uHF Aerial
rED +
rED +
12 V Dc
-BlAcK
-BlAcK
connector
Plug
connector
Plug
Dc socket
Fuse
Fuse
Antenna
socket
Extension speaker
uHF Aerial
rED +
12 V Dc
-BlAcK
connector
Plug
Fuse
