Instructions for: 12360 SERIES
FOLDING PONTOON LADDER
Write for GARELICK Phone: 651-459-9795
A complete 644 2
ND
Street, PO Box 8 E-mail: [email protected]
EEz-In Catalog St. Paul Park, Minnesota 55071 Website: www.garelick.com
04/10
12.620

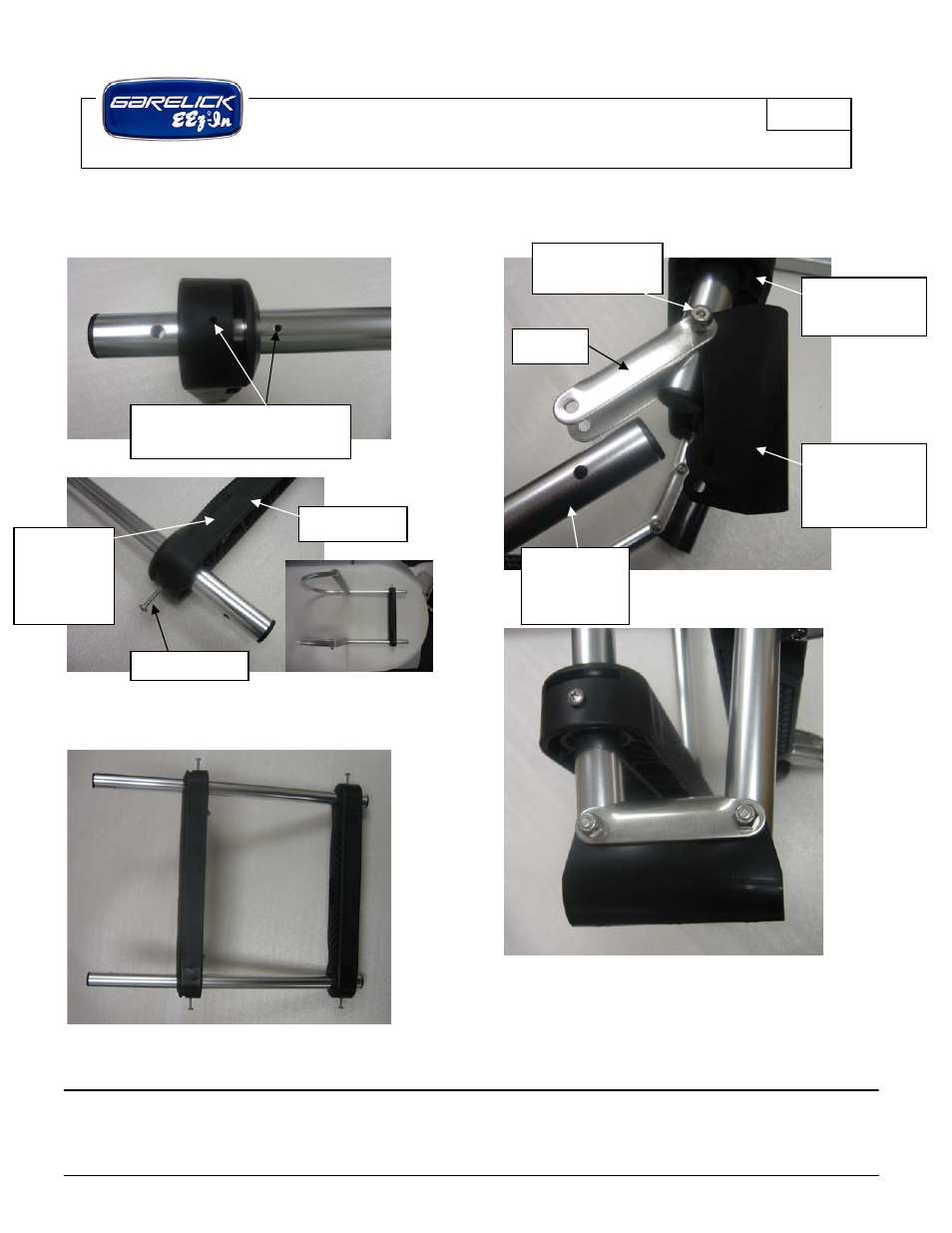

Step 3: Assemble (1) black step to the top verticals
using (2) #10 screws (Note: tighten all screws flush to
step - screws shown out for clarity).
Step 4: Assemble (2) black steps to the bottom
verticals using (4) #10 screws (Note: tighten all screws
flush to step - screws shown out for clarity).
Step 5: Join the top vertical section to the bottom
vertical section using the hardware shown below.
Align hole on step with hole
on vertical.
#10 Screws
Black Step
Pinch
Guard (Goes
under hinge)
Hinge
Bottom
Vertical
Assembly
Top Vertical
Assembly
1/4-20 Screw
and Locknut
Flats on
step to
face rear
of ladder
