Garelick 18017 TRANSOM LADDER - Manual

Assembly and Installation Instructions for
Folding Transom Ladder
Form 12.186
Write for
a Complete
Catalog
Phone: 651-459-9795
PO Box 8, 644 2nd Street E-mail: [email protected]
St. Paul Park, Minnesota 55071 On the Web: www.garelick.com
4/98
ASSEMBLY INFORMATION
1. Check parts against parts list.
2. Read instructions completely before starting assembly.
TOOLS REQUIRED
1. Wrench adjustable to 7/16"
2. Screwdriver
3. Drill
4. Marine adhesive/sealant

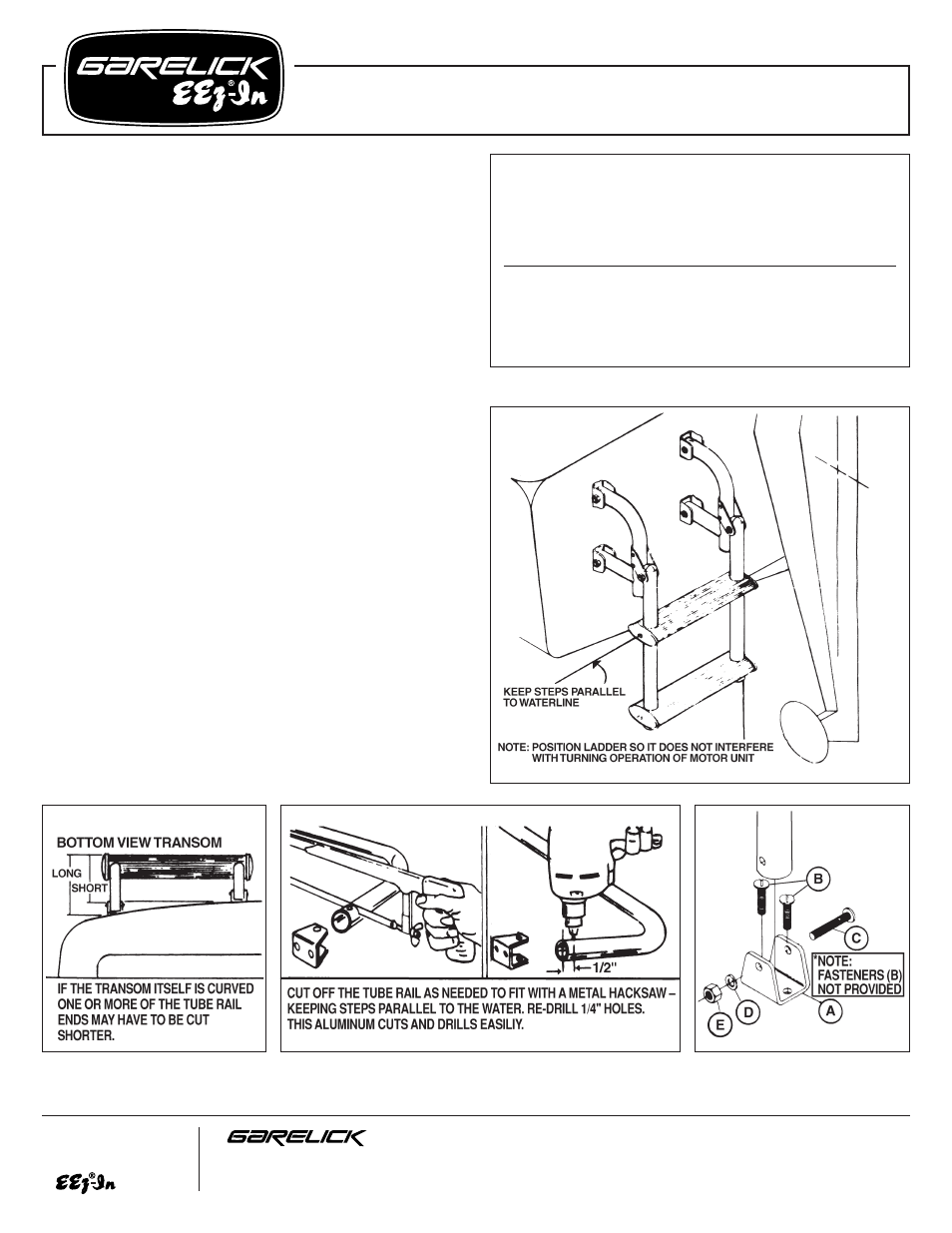

TRANSOM MOUNTING INSTRUCTIONS
1. Choose the most suitable side of transom for mounting
ladder.
2. Locate a place on the transom where all four tube ends of
ladder make contact with boat and will not interfere with
turning operation of motor unit (fig. 1).
3. Place ladder so that when folded down, bottom step should
ideally be in water.
When mounting, follow these guidelines:
A. Keep step surface parallel to water (fig. 1)
B. Keep ladder perpendicular to centerline of boat (fig. 1).
NOTE: If necessary to modify ladder, cut and redrill as
illustrated in figs. 2 & 3.
4. Mark tube end location at point of contact with transom
and attach mounting brackets (A) with appropriate
fasteners (B); see fig. 4.
Attach tube ends of ladder to each of the four mounting
brackets by inserting bolt (C) through holes in mounting
bracket and tube as shown in fig. 4, secure with lock
washer (D) and acorn nut (E).
FIG. 1
Parts List
Folding Transom Ladder
Ref. Factory No.
Letter Part No. Req. Description
A 50.455 4 Mounting bracket
C 03.082 4 1 ⁄
4
-20 x 1 3 ⁄
4
" machine screw
D 03.119 4 1 ⁄
4
" lock washer
E 03.037 4 1 ⁄
4
-20 H x S.S. acorn nut
FIG. 2 FIG. 3 FIG. 4
