Garelick 31900 OUTBOARD MOTOR CARRIER - Manual

Assembly Instructions for
Model 31900 Motor Carrier
Form 12.123
ASSEMBLY INFORMATION
1. Check parts against parts list.
2. Read instructions completely before starting assembly.
TOOLS REQUIRED
1. Wrench adjustable to 9/16"
2. Screwdriver
3. Hammer
CAUTION: Woodblock and tubing will crush if over-
tightened.
MOTOR CARRIER ASSEMBLY

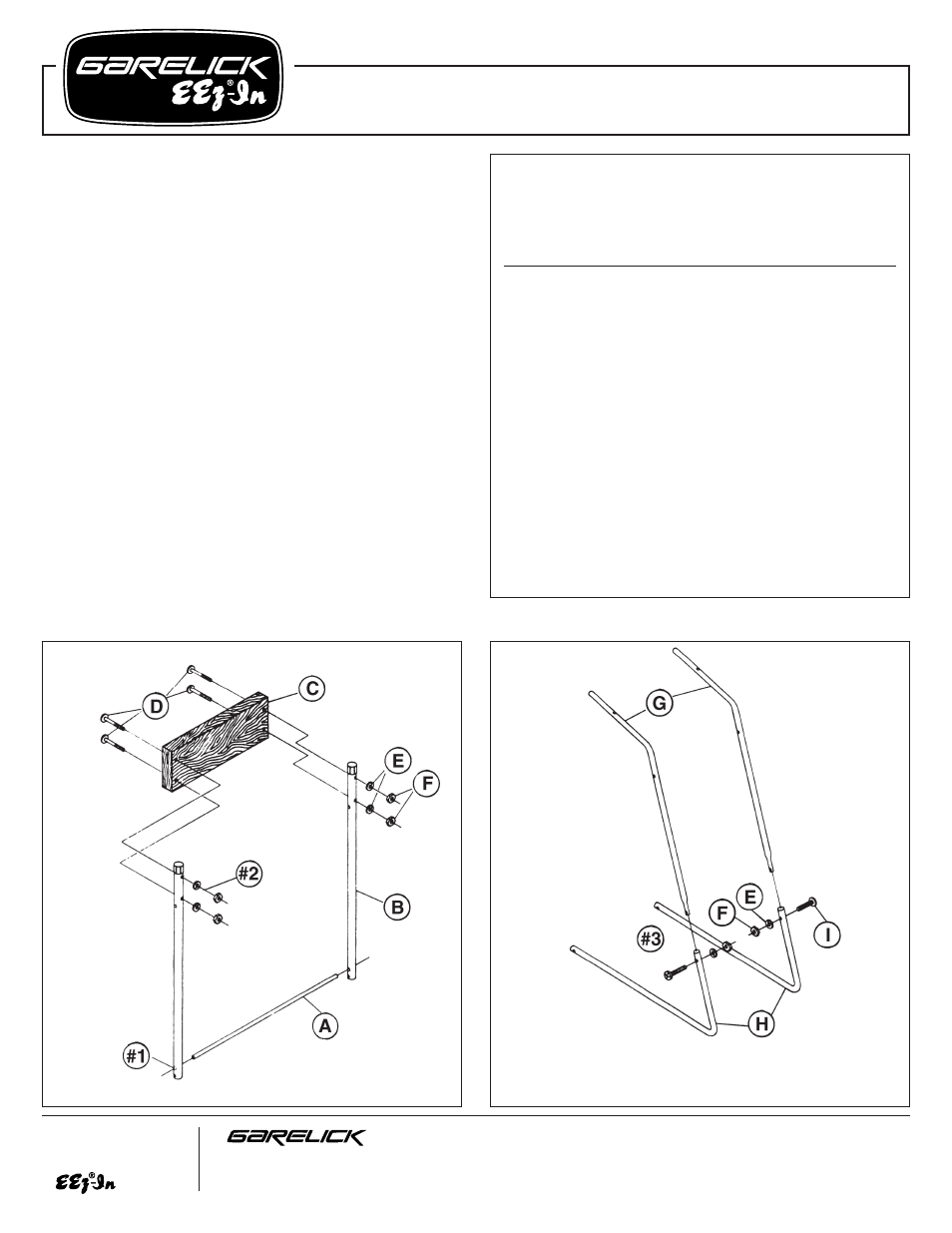

Refer to Fig. 1:
1. Slide each end of axle (A) through large holes #1 of
upright support tubes.
2. Attach woodblock (C) to top of upright support tubes by
aligning holes #2, inserting four carriage bolts (D) and
securing with fasteners (E) and (F) as illustrated (finger
tighten).
Refer to Fig. 2:
1. Insert handles (G) into SHORT ENDS of J-tubes (H).
2. Align holes #3 so that the handles will point AWAY from
each other, insert bolts (I); secure with fasteners (E) and (F)
as illustrated (finger tighten).
(over)
Parts List
Model 31900 Motor Carrier
Ref. Factory No.
Letter Part No. Req. Description
A 51.033 1 Axle
B 51.035 2 Upright support tube
C 06.318 1 Plastic Block
D 03.003 4 1 ⁄
4
-20x3 1 ⁄
2
" carriage bolt
E 03.118 14 1 ⁄
4
" lockwasher
F 03.023 14 1 ⁄
4
-20 nut
G 51.022 2 Handle (L&R)
H 51.032 2 J-tube
I 03.074 2 1 ⁄
4
-20x1 1 ⁄
4
" bolt
J 03.089 4 1 ⁄
4
-20x2 3 ⁄
4
" bolt
K 51.014 1 Handle brace, 25"
L 03.088 4 1 ⁄
4
-20x2 1 ⁄
2
" bolt
M 51.034 1 Bottom brace, 18 1 ⁄
2
"
O 49.096 4 Wheel
P 03.039 2 Pushnut
Q 49.003 2 Caster
R 03.022 2 3/8-16 locknut
S 06.027 2 Poly handgrip
