Mounting and Operating Instructions for
Outboard Motor Bracket Models 71040, 71057,
71042, and Outboard Motor Bracket Adapter
Plate Model 71053
Form 12.109
OUTBOARD MOTOR BRACKET MOUNTING INSTRUCTIONS
(See reverse side for Adapter Plate Installation Instructions)
IMPORTANT INSTRUCTIONS
Check hardware pack contents for the following mounting
hardware:
4 - 5/16 x 3" stainless steel carriage bolts
4 - 5/16" stainless steel locknuts
1. These brackets are not recommended for use with 9.9
4-stroke motors.
2. Read instructions completely before starting assembly.
3. Motor bracket must remain in “UP” position throughout
installation.
4. DO NOT operate motor bracket unless motor is installed
on bracket.
MOUNTING INSTRUCTIONS

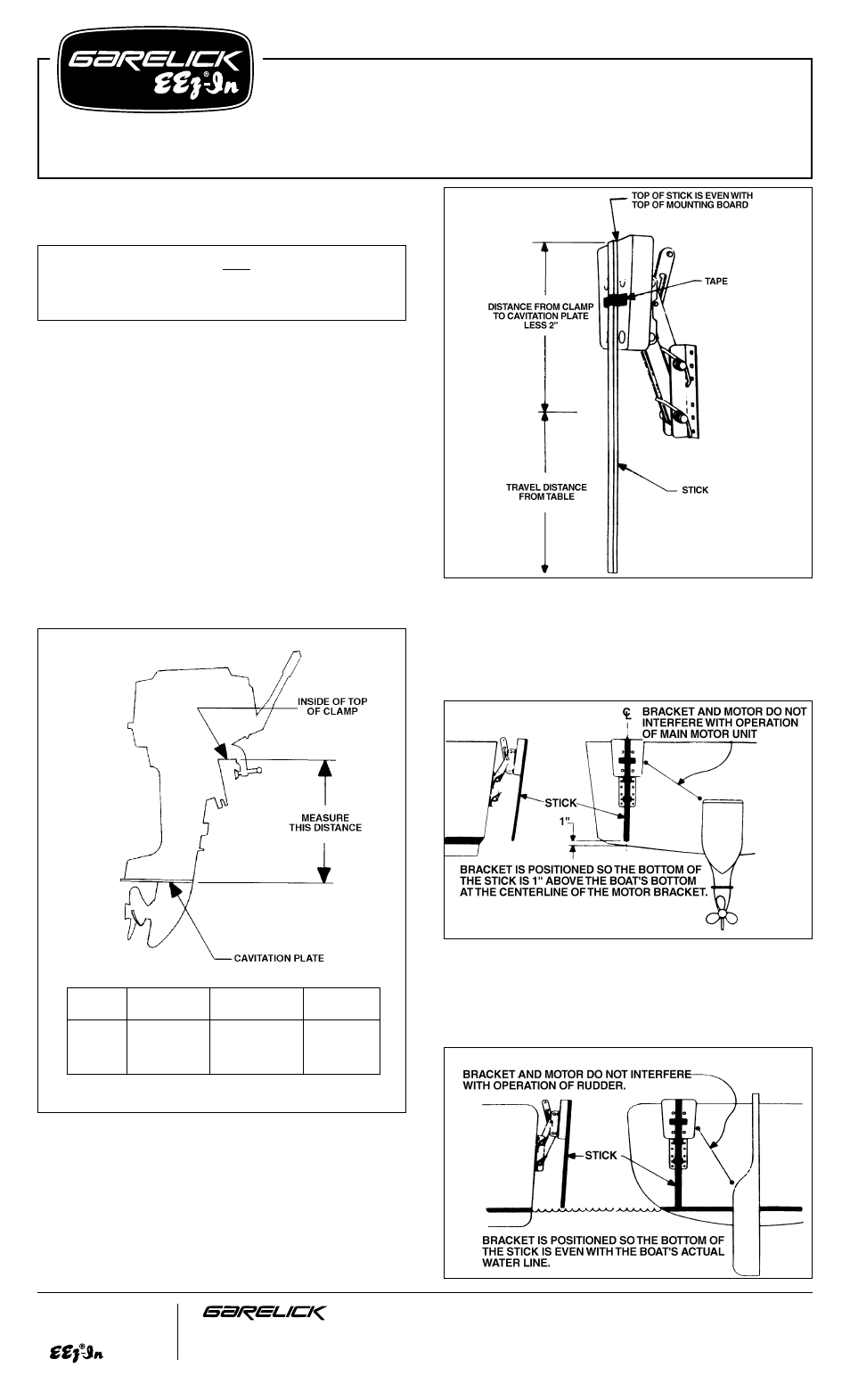

Refer to Fig. 1
Measure the distance on your outboard motor between the
cavitation plate and the upper inside edge of the mounting
clamp. Subtract 2" from this length. Then add the total travel
distance of your model outboard motor bracket from the table
below to the distance measured on your motor.
Refer to Fig. 2
Mark this total length on a stick and tape it so that the top is
flush with the top of the mounting board of the motor bracket.
Choose the most appropriate side of your transom for mounting
the bracket. Position your bracket so it will not interfere with the
turning operation of your main motor or rudder.
Refer to Fig. 3
For Powerboat Installation:
Take your outboard motor bracket
with the stick taped on and place the mounting flanges on your
transom. Position the bracket so the bottom of the stick is one
inch above the boat’s bottom at the centerline of the outboard
motor bracket.
Refer to Fig. 4
For Sailboat Installation:
Take your outboard motor bracket
with the stick taped on and place the mounting flanges on your
transom. Position the bracket so the bottom of the stick is even
with the boat’s actual waterline.
FIG. 3
Write for
a Complete
Catalog
Phone: 651-459-9795
PO Box 8, 644 2nd Street E-mail: [email protected]
St. Paul Park, Minnesota 55071 On the Web: www.garelick.com
10/08
FIG. 1
MOTOR
WEIGHT NOT VERTICAL
MODEL H.P. RATING TO EXCEED TRAVEL
71040 TO 8 59 LBS. 8 1 ⁄ 2 "
71041 OVER 7 1 ⁄
2
TO 20 115 LBS. 11 1 ⁄
4
"
71042 OVER 7 1 ⁄
2
TO 12 82 LBS. 14 1 ⁄
4
"
71044 TO 30 135 LBS. 14 1 ⁄
4
"
FIG. 2
FIG. 4
(over)
Transom Mounting Hardware NOT Supplied Due to Various
Transom Thicknesses.
Recommend 5/16" Stainless Steel Fasteners
