Instructions for: 18019
1-3 STEP TRANSOM LADDER
Write for Garelick Mfg. Co. Phone: 651-459-9795
A complete 644 2
ND
Street, P.O. Box 8 E-mail: [email protected]
EEz-In Catalog St. Paul Park, Minnesota 55071 Website: www.garelick.com
Rev A 09/11
12.632
Thank you for selecting our superior quality Garelick
EEz-In Brand Boarding Ladder. Your ladder is
designed and manufactured using the finest material
available to provide long product life. Choosing the
proper size ladder for location and correct fit is
important to assure safe, convenient, and reliable use.
Although mounting hardware is not provided due to
the wide variety of applications and diversity of boat
shapes and sizes mounting holes have been provided
and it is recommended to use at a minimum 1/4"
diameter fasteners. These fasteners should be through
bolted with a backing plate.
SAFETY GUIDELINES

No jumping or diving!

Do not use when motor is running

This ladder designed for boat use only

Face ladder when entering boat or water

Only one person on ladder at a time

Check all steps and hardware before using

Never operate your boat with the ladder in
“down” position. Serious injury or damage to
your boat or ladder may result.

When underway, fold ladder up and
insert back into tube ensuring locking
pin snaps into place.
MAINTENANCE

Safety tip
Periodically check mounting hardware and re-
tighten (due to normal boat operation.)

Keep that bright finish!
Local weather conditions may contribute to
minor corrosion. Stainless, like other metals, is
not completely free from corrosion attack.
Regular fresh water rinsing and periodic cleaning
with a mild abrasive cleaner will help to retain
luster.
Assembly / Installation Instructions:
Note: Read all instructions completely before
starting installation.
PARTS LIST
REF
LETTER
PART NO QTY DESCRIPTION
A 03.103 2 SMS PPH SS 10 X 2"
B 03.184 16 Wshr SS 1/4"
C 03.202 2 Screw PPH SS 10-24 x 2 1/2"
D 03.662 8 1/4-20 SS Acorn Lock Nut
E 03.842 8 Screw PTH SS 1/4-20 x 1.63
F 06.031 2 Tube Connector
G 06.065 2 End Cap
H 49.205 1 Velcro Strap
J 50.110 1 Oval Step 11 5/8"
K 50.124 2 Hinge
L 50.324 2 Standoff Assembly
M 50.455 4 "U" Mtg Bracket
N 60.827 2 Top Vertical
O NA 1 Lower Ldr Section Assembly
Step 1: Using “Figures 1, 2, and 3” assemble the top
section of the ladder assembly. It is recommended that
fasteners be kept loose until final fit-up to your boat is
complete.

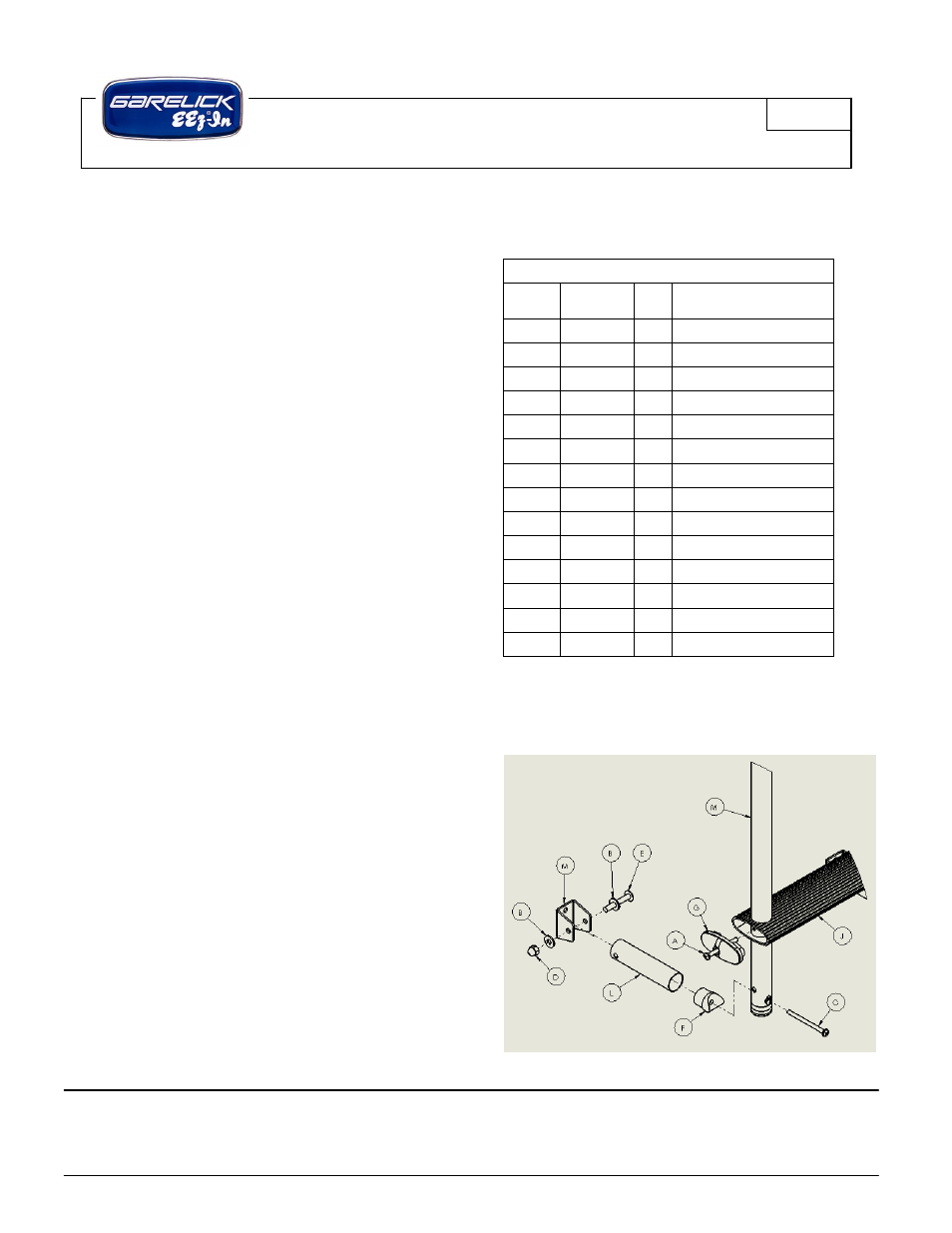

Figure 1: Standoff / Step Assembly
