ADJUSTMENTS AND FLIGHT TECHNIQUES

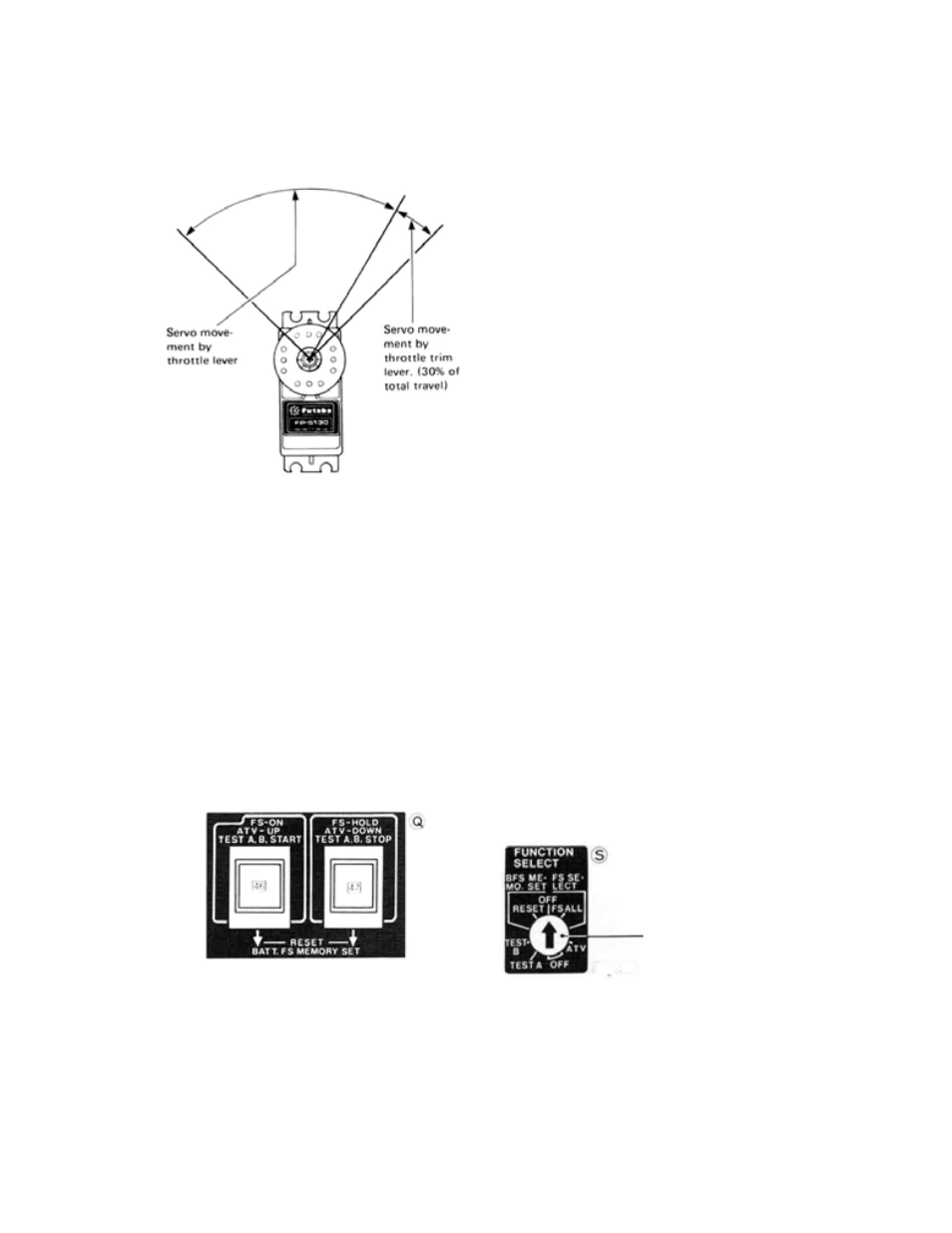

•USING ATL (ADJUSTABLE THROTTLE LIMIT)

HIGH

SLOW

The Throttle Trim Lever 19 affects the servo po-
sition only when the throttle control lever is in the

LOW (IDLE) position. HIGH throttle position

remains unchanged. Adjustment of the throttle
linkage is therefore very convenient.

1 Use a servo horn that allows slightly more

throw than needed.

2 Set the maximum opening at HIGH throttle

using Memory ATV (Page 17).

3 Use Memory ATV to set the extreme LOW

position to prevent servo binding when the

throttle barrel closes against the idle stop
screw.

4 With the engine running, use ATL Throttle

Trim Lever 19 to set the optimum idle
speed.

Fig. 34

FS FUNCTION/HOLD FUNCTION

Fail Safe (FS) is a function which moves the servo

of each channel to a position preset (at the trans-
mitter) when an erroneous signal or continuous
strong noise is received for about 1 second or

longer. When the proper signal is lost or strong
interference received, the airborne system will

operate in the HOLD mode for about 1 second
before switching to the FS mode. When a normal
signal is received again for about 1 second, FS is

released and normal control resumes.
The HOLD functionstops all servos selected (by
button [47] at the position just before noise or
interference was received. When a normal signal is
resumed, HOLD is released.

A combination of FS and HOLD functions can be
selected on each channel at the modeler's discre-
tion.

FS, HOLD, and SERVO TEST functions are oper-

ated using three switches on the trimmer panel.

A. ATV/FS Buttons [46] and [47]

B. Channel Select Switch [48]

C. Function Select Switch [49]

48 Channel select switch

23

Fig. 36

Fig. 35

49 Function select switch

Fig. 37
