Description of Functions

Throttle ATV

This function is used to adjust the forward and brake side
servo travel. Each direction can be adjusted independent
of each other. Use this feature to set the throttle servo
travel.

Warning

Be sure that your throttle linkage does not apply exces-
sive force to the servo.

If your linkage installation causes an unreasonable amount of force to be ap-
plied to the servo. The servo may be damaged and result in loss of control.

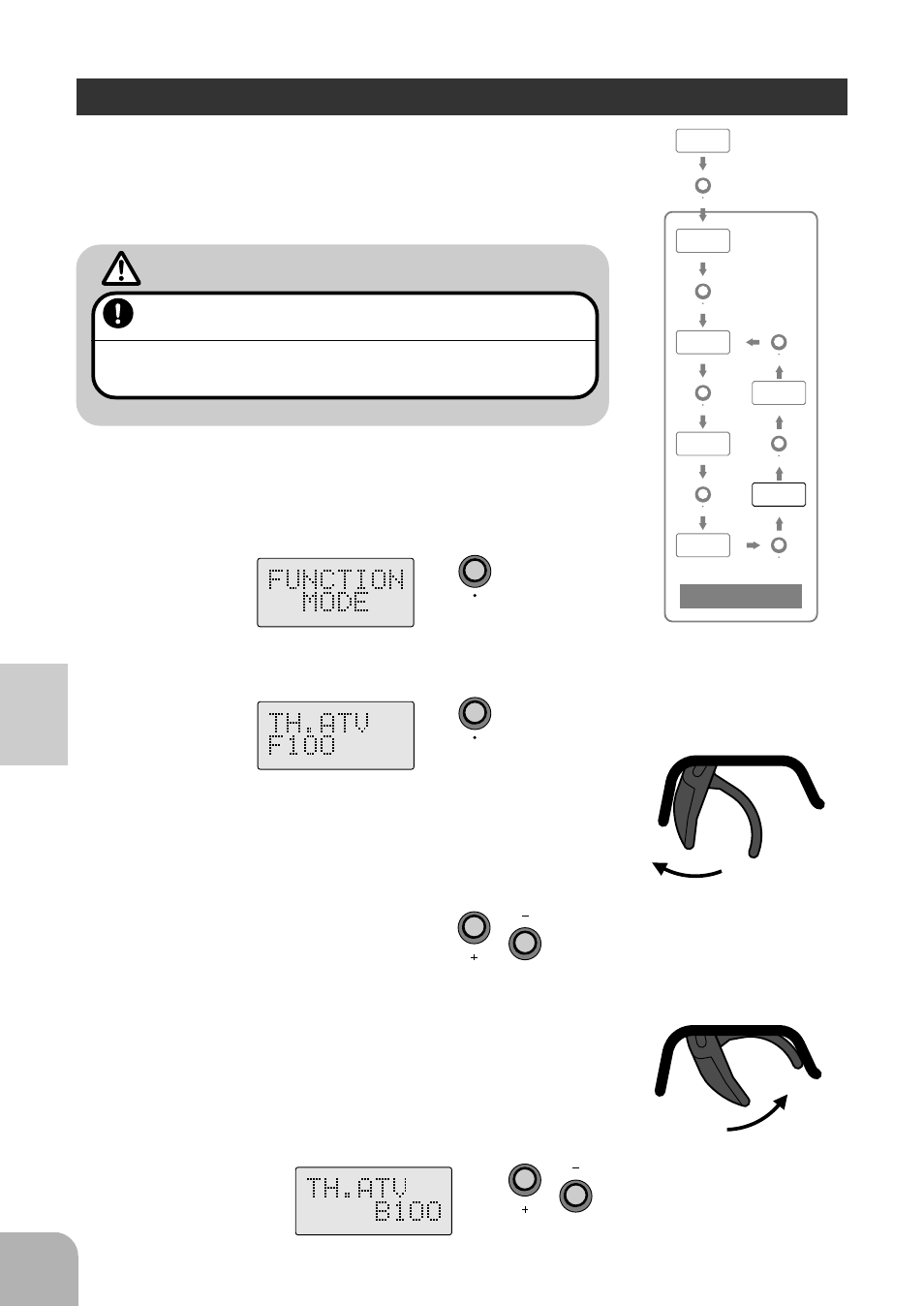

(Throttle ATV Selection)

Access this function by pressing the MODE KEY
from the initial screen.

Access the THROTTLE ATV screen by pressing
the MODE KEY four times.

(Throttle Forward Side Adjustment)

Pull the throttle trigger back and adjust the for-
ward side travel by pressing the + or - key. When
a FET Amp (Electronic speed control) is used set
to 100.

Setting Range: 0~120
(Pressing the + and - keys simul-
taneously returns setting to initial
value 100)

(Throttle Brake Side Adjustment)

First set the ATL lever to the maximum travel po-
sition (100).

Push the throttle trigger fully forward adjust the
servo travel by pressing the + and - keys.

When an FET Amp (Electronic speed control) is
used set to 100.

Setting Range: 0~120
(Pressing the + and - keys simul-
taneously returns the initial value
100)

MODE

FUNCTION
MODE

1:
10.5V

ST.ATV

TH.ATV

ST.EXP

TH.EXP

MDL.SEL

MODE

Initial Screen

Function Mode

Group
