Assembly

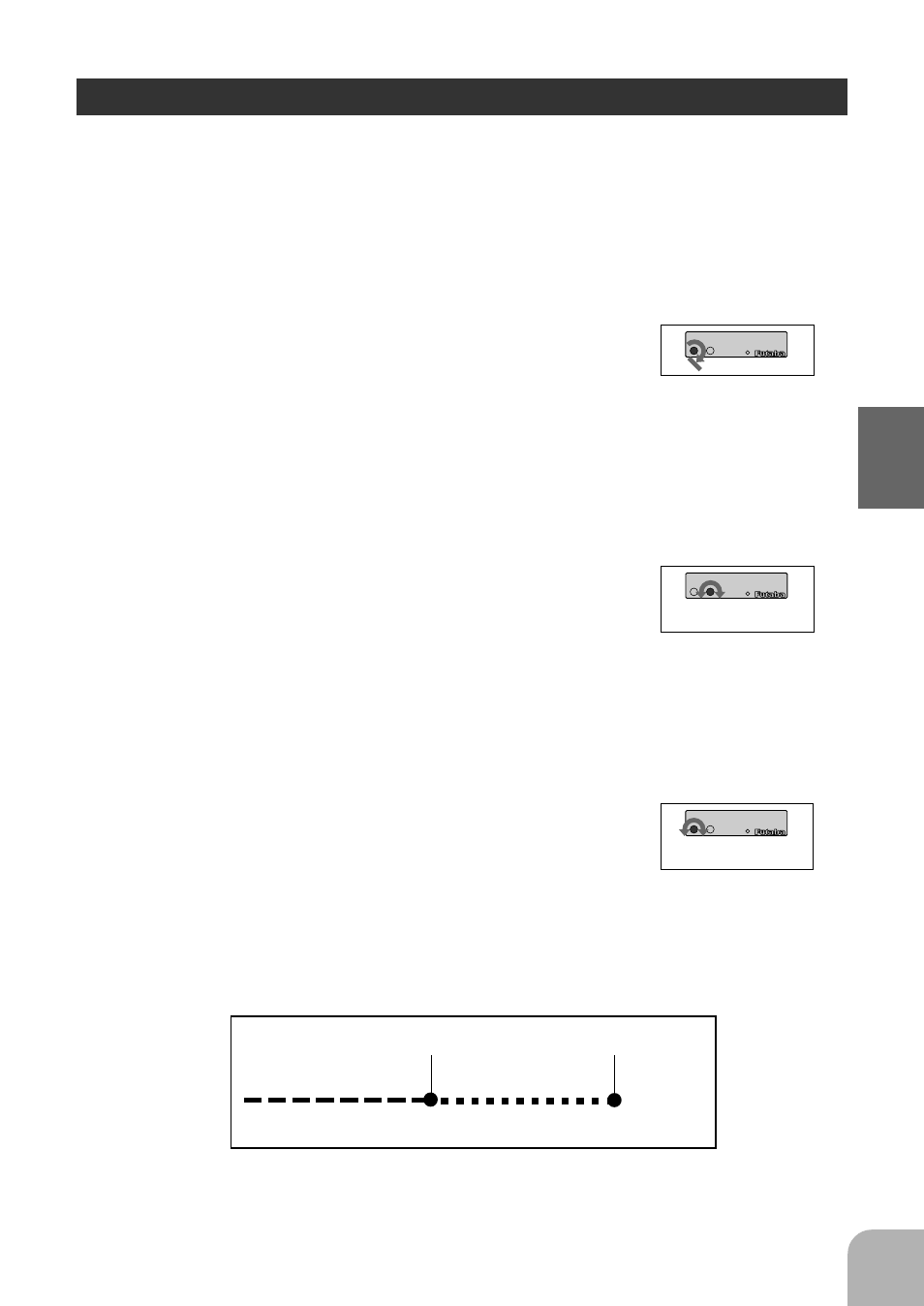

E.S.C. MC210CB Adjustment
*Use the accessory mini screwdriver to make adjust-
ments.
Preparation
1
Set the transmitter servo reversing switch to the
normal position.
2
Turn the high point trim fully clockwise.
Neutral Adjustment
1
Have the throttle trigger at neutral.
2
Set the neutral trim to the point where the monitor
lamp goes off.
- The point where the monitor lamp changes from a rapidly flashing light
to off is the neutral point.
High Point Adjustment
1
Set the throttle trigger to just a little before full
throttle.
2
Set the high point trim to the point where the
monitor lamp is a steady light.
- The point where the monitor lamp changes from a rapidly flashing to a
steady light is full throttle.
Monitor Lamp
MC210CB
Fully Clockwise
MC210CB
Point at which monitor
lamp goes off.
MC210CB
Point where the monitor
lamp is a steady light.
