Description of Functions

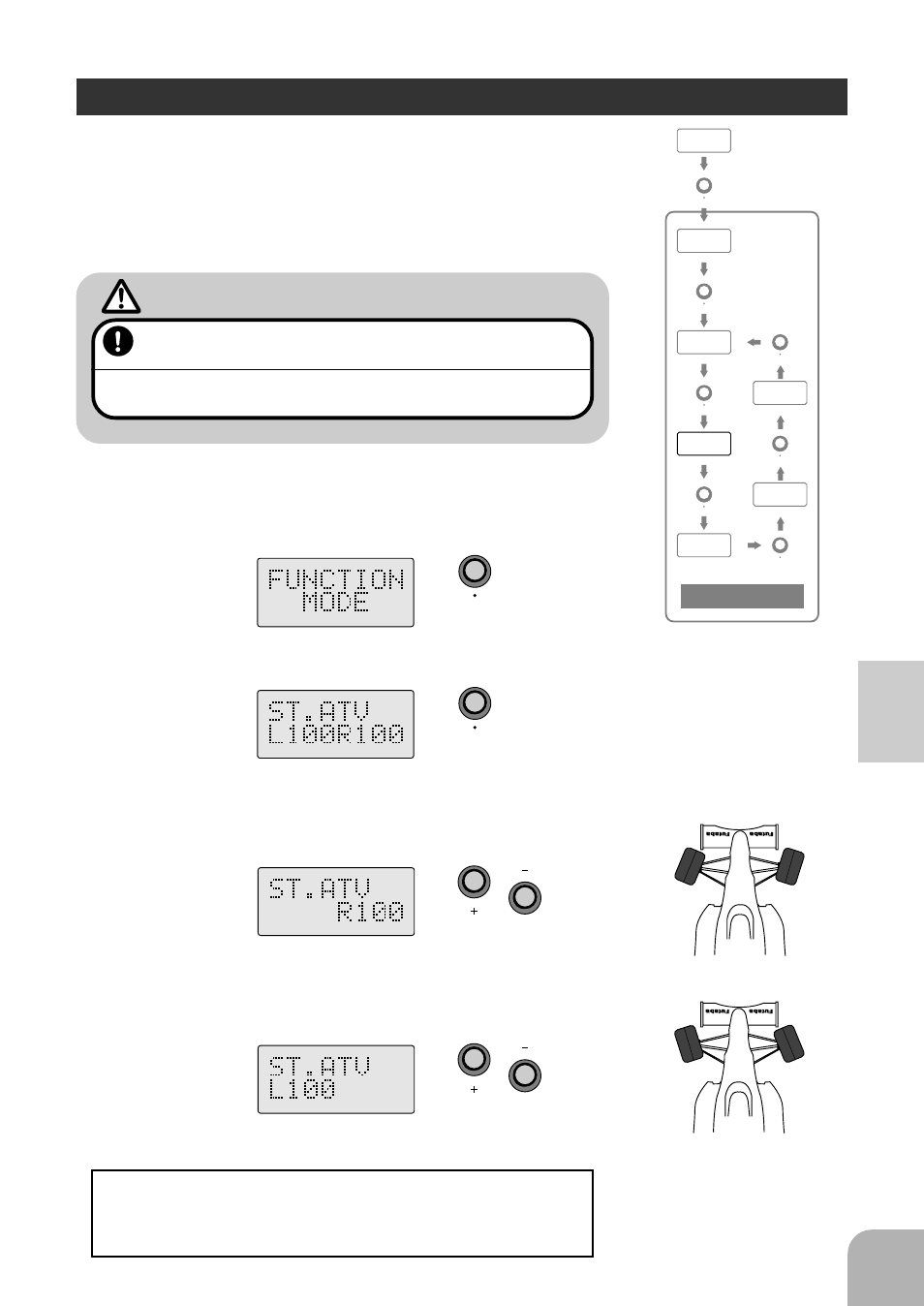

Steering ATV
Use this function to limit the servo movement to the left
or right. The servo travel to each side can be indepen-
dently adjusted. This feature will compensate for any
difference in right or left turning angles or radius due to
the characteristics of your model.
Warning
Be sure that the steering linkage does not bind or come
in contact with any suspension parts or arms.
If unreasonable force is applied to the servo. The servo may be damaged
could cause loss of control.
(Steering ATV Selection)
1
Access the FUNCTION MODE by pressing the
MODE key from the initial screen.
2
Access the Steering ATV Function by pressing
the MODE KY two times.
(Steering right side adjustments)
3
With the steering wheel turned fully to the right
adjust the right side travel by pressing the + or -
key.
(Steering Left Side Adjustment)
4
With the steering wheel turned fully to the left ad-
just the left side travel with the + and - keys.
When you want to adjust both directions simulta-
neously.
When the + key or - key are operated when the steering
wheel is at the neutral position the right side and left side
directions change simultaneously.
Setting Range: 0~120
(Pressing the + key and - key si-
multaneously returns the initial
setting 100)
MODE
MODE
FUNCTION
MODE
1:
10.5V
ST.ATV
TH.ATV
ST.EXP
TH.EXP
MDL.SEL
MODE
MODE
MODE
MODE
MODE
MODE
MODE
Initial Screen
Function Mode
Group
