Assembly
Preparations Prior to Setting Transmitter
Prior to making any setting on the transmitter check the following items.
Preparations Prior to Setting Transmitter
1
To set the steering trim to neutral, push the channel 1 trim lever to the left
or right. The display will read TRIM.Pos. Hold the lever to the left or right
until you set 0 on the display. This will be the neutral position.
2
To set the throttle trim to neutral, push the channel 2 trim lever up or down.
The display will read TRIM.Pos. Hold the lever up or down until you see 0
on the display. This will be the neutral position..
3
To set Grip Dial A to maximum, push the upper lever to the left or right. The
display will read GDA. Hold the lever to the right or left. The maximum
setting will be L100 R100.
4
To set Grip Dial B to maximum, push the lower lever to the left or right. The
display will read GDB.Pos ATL. Hold the lever to the left or right. The maxi-
mum setting will be 100.
TRIM.Pos
TH 0
D/R .Pos
L100R100
ATL .Pos
100

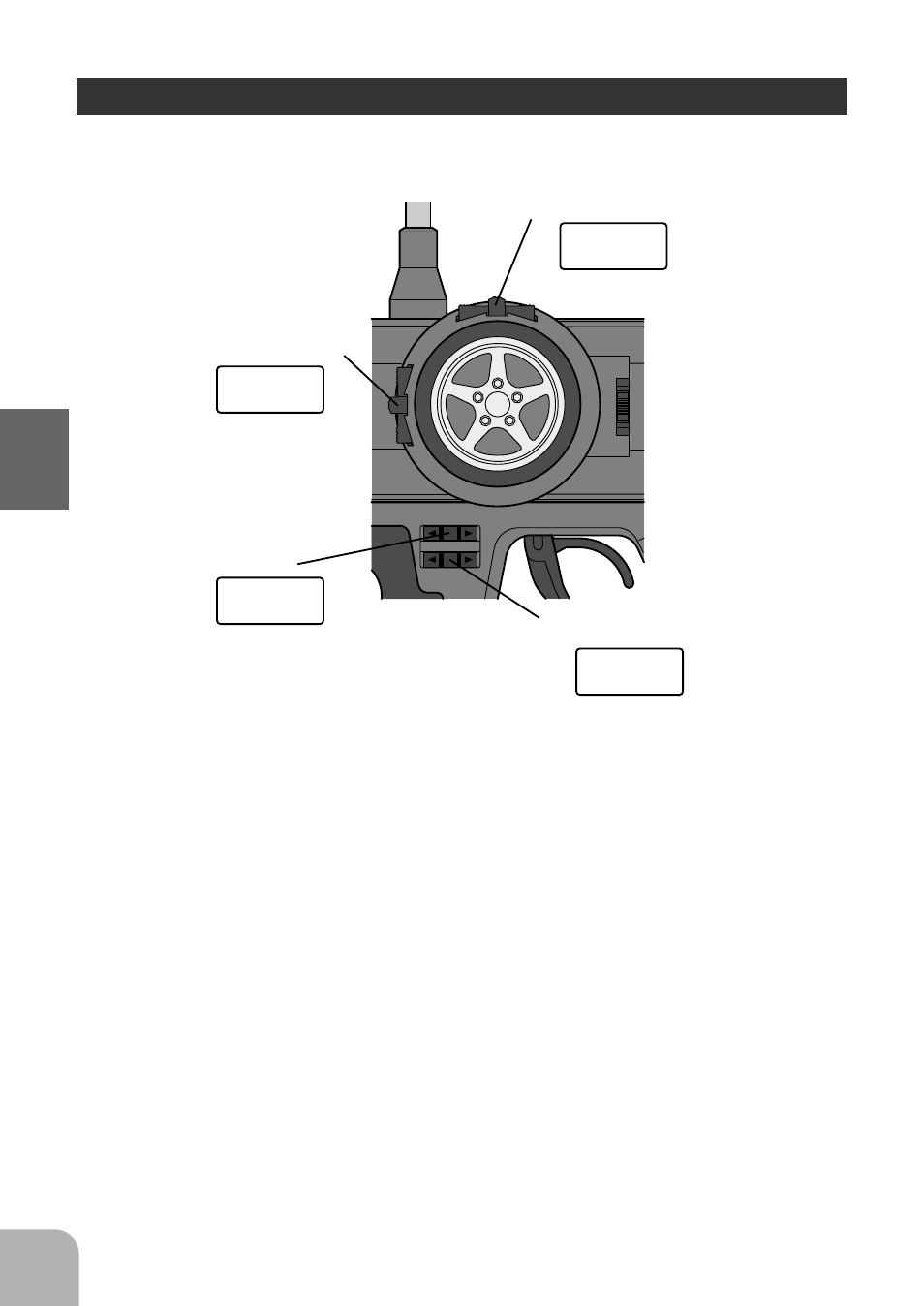

1
Steering Trim Lever
2
Throttle Trim Lever
3
Lever A
4
Lever B
TRIM.Pos
ST 0
